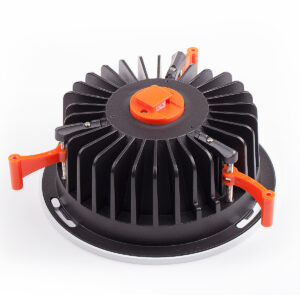

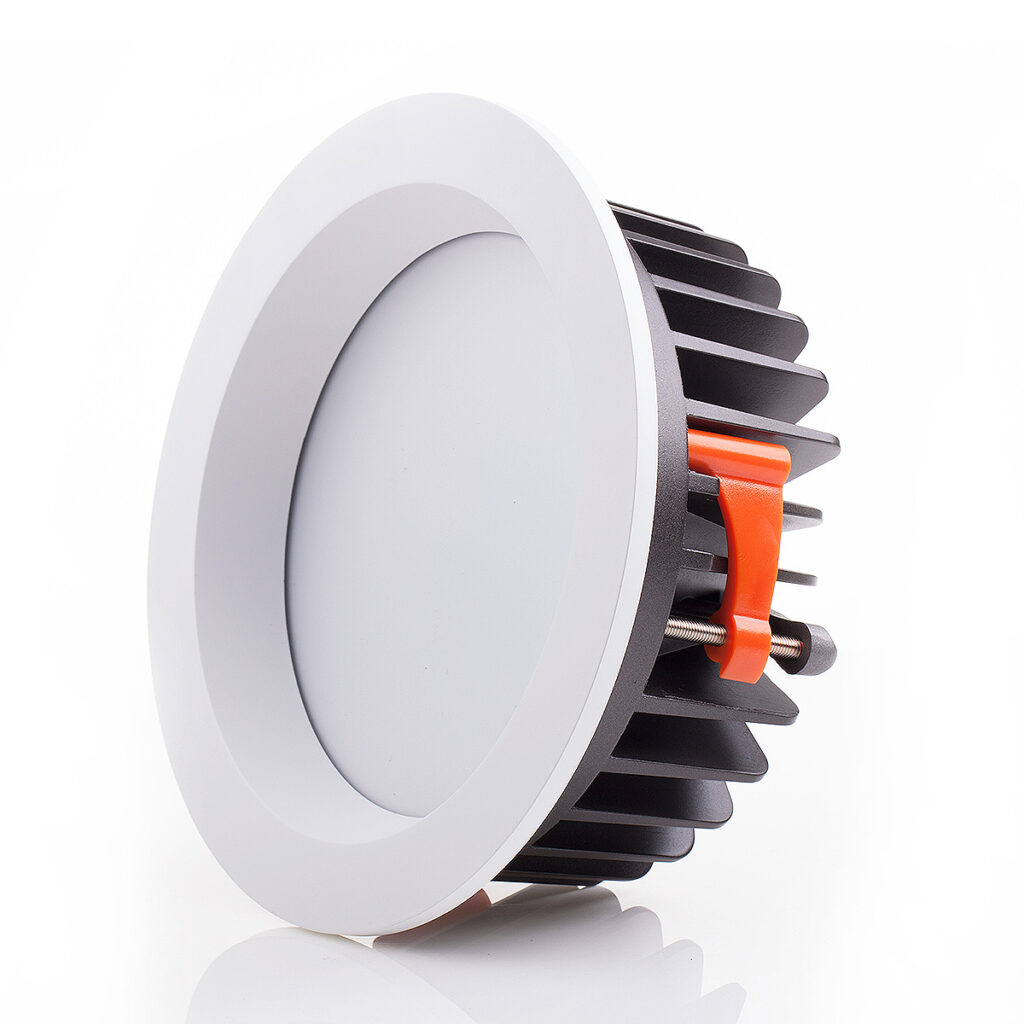

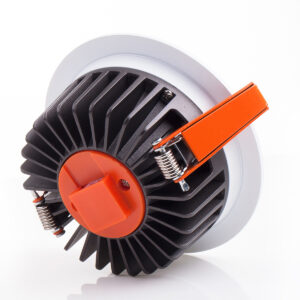

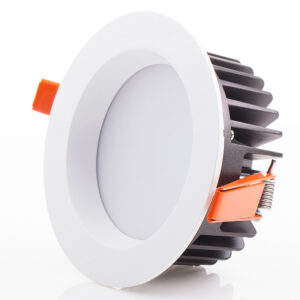

DALI Lighting LED Recessed Downlight SMD
DALI Lighting LED Recessed Downlight SMD is a versatile lighting solution. With sizes ranging from 3 to 8 inches and wattage options from 10W to 50W, it suits various needs. Its durable aluminum body and PMMA diffuser ensure longevity and even light distribution. The LM80 LumiLEDs CRI 82 LEDs offer high-quality, flicker-free illumination without blue light hazards. It works seamlessly with DALI Lighting Systems and can be easily connected. Optional emergency functionality is available, and installation is convenient with recessed mounting.
| Model | Watts | Lumen | Size | Cutout |
| ILED-DL3-A D1 DALI | 15W | 1750LM | φ110x53mm | Φ95mm |
| ILED-DL4-A D1 DALI | 25W | 3000LM | Φ145x69mm | Φ120-130mm |
| ILED-DL6-A D1 DALI | 40W | 4400LM | Φ190x86mm | Φ165-170mm |
| ILED-DL8-A D1 DALI | 50W | 5500LM | Φ230x99mm | Φ200-210mm |
| Input | 220-240VAC | LED Source | LumiLEDs LM80 SMD |
| Materials | Aluminum+ PMMA Diffuser | PF | >0.9 |
| Watts | 15W/25W/40W/50W | Lumen Effective | 110LM/W |
| Color Temperature | 2800-6500K | CRI | >80 |
| IP Rating | IP42 | Body Color | White |
| Warranty | 3-5 years | Certifications | SAA CE ROHS |
Send Your Inquiry
1. Versatility: The downlight offers a wide range of color temperature options (3000K, 4000K, 5000K, 6000K) and sizes (3 inches to 8 inches), allowing you to customize the lighting to suit your specific requirements and preferences.
2. High-Quality Illumination: Equipped with LM80 LumiLEDs CRI 82 LEDs, this downlight ensures excellent color rendering and provides soft and even lighting, creating a comfortable and visually pleasing atmosphere.
3. Energy Efficiency: With a power factor greater than 0.9 and flicker-free operation, the downlight maximizes energy efficiency, reducing power consumption and minimizing the strain on the electrical system.
4. Durability and Longevity: The downlight features an aluminum body and PMMA diffuser, which not only provide durability but also ensure efficient heat dissipation for prolonged lifespan. With a life expectancy of 50,000 hours, it offers long-lasting performance and reduces maintenance needs.
5. Compatibility and Control: The downlight is designed to work seamlessly with DALI Lighting Control Systems, allowing for advanced control and management of lighting settings. It can be easily integrated into existing DALI systems for centralized control and automation.
6. Safety and Compliance: The downlight is free from blue light hazards and flickering, ensuring a safe and comfortable lighting experience. It is also compliant with Electric Class II safety standards, offering enhanced electrical protection.
7. Easy Installation: The recessed mounting design and easy connection features make the installation process simple and convenient, saving time and effort during setup.
8. Emergency Lighting Option: The downlight is compatible with emergency kits, making it suitable for applications where emergency lighting functionality is required, providing added safety and security.
9. Reliability: The downlight utilizes high-quality external DALI drivers from reputed brands such as BOKE, VS, TCI, Osram, or Tridonic, ensuring reliable performance and peace of mind.
10. Aesthetically Pleasing: With its anti-UV and non-yellowing properties, the downlight maintains its visual appeal over time, resisting discoloration and preserving its original appearance.
Q1: What are the available color temperature options for the DALI Lighting LED Recessed Downlight SMD (Model: ILED-DL-A D1 DALI)?
A1: The downlight offers color temperature options of 3000K, 4000K, 5000K, and 6000K, allowing you to choose the desired lighting ambiance for your space.
Q2: What is the power range and input voltage compatibility of this downlight?
A2: The downlight has a power range of 10W to 50W and is compatible with input voltages ranging from 220-240VAC to 110-277VAC, providing flexibility for various electrical requirements.
Q3: Can you specify the LED source used in this downlight?
A3: The downlight utilizes LM80 LumiLEDs CRI 82 LEDs, ensuring high-quality illumination with accurate color rendering.
Q4: Does this downlight come with an external driver?
A4: Yes, the downlight requires an external DALI driver for operation. You can select from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic for the driver.
Q5: Does this downlight emit blue light or cause flickering?
A5: No, the downlight is designed to be free from blue light hazards and flickering, ensuring a safe and comfortable lighting experience.
Q6: What materials are used in the construction of this downlight?
A6: The downlight features an aluminum body and a PMMA diffuser, providing durability and efficient heat dissipation for optimal performance.
Q7: Can this downlight be used with emergency kits?
A7: Yes, the downlight is compatible with emergency kits, making it suitable for applications that require emergency lighting functionality.
Q8: What is the lifespan of this downlight?
A8: The downlight has a lifespan of 50,000 hours, ensuring long-lasting performance and reducing the need for frequent maintenance or replacement.
1. Residential Spaces: Install the downlights in living rooms, bedrooms, kitchens, and hallways to provide efficient and comfortable lighting for everyday activities and create a pleasant ambiance.
2. Commercial Buildings: Illuminate office spaces, conference rooms, reception areas, and corridors with these downlights to enhance productivity, create a professional atmosphere, and ensure adequate lighting for tasks and navigation.
3. Retail Stores: Use the downlights to highlight product displays, aisles, and checkout areas, enhancing the visual appeal and attractiveness of the merchandise while providing optimal lighting for customers and staff.
4. Hospitality Establishments: Illuminate hotel rooms, lobbies, restaurants, and lounges with these downlights to create a welcoming and inviting atmosphere for guests, ensuring proper lighting for comfort and functionality.
5. Educational Institutions: Install the downlights in classrooms, libraries, corridors, and common areas of schools, colleges, and universities to provide bright and uniform lighting for learning environments and student activities.
6. Healthcare Facilities: Use the downlights in hospitals, clinics, and medical centers to provide optimal lighting for examination rooms, patient rooms, waiting areas, and hallways, ensuring a comfortable and well-lit environment.
7. Museums and Galleries: Illuminate artwork, exhibits, and displays with these downlights to enhance the visual impact and showcase the details and colors of the artistic pieces.
8. Corporate Offices: Install the downlights in office spaces, meeting rooms, and breakout areas to create a bright and productive working environment, promoting employee well-being and productivity.
9. Restaurants and Cafes: Use the downlights to create a cozy and inviting atmosphere for dining areas, highlighting tables, counters, and focal points while ensuring proper illumination for customers and staff.
10. Other Indoor Spaces: These downlights can also be used in libraries, theaters, event venues, showrooms, and other indoor areas where high-quality lighting and aesthetics are important.
| Model | Watts | Lumen | Size | Cutout |
| ILED-DL3-A D1 DALI | 15W | 1750LM | φ110x53mm | Φ95mm |
| ILED-DL4-A D1 DALI | 25W | 3000LM | Φ145x69mm | Φ120-130mm |
| ILED-DL6-A D1 DALI | 40W | 4400LM | Φ190x86mm | Φ165-170mm |
| ILED-DL8-A D1 DALI | 50W | 5500LM | Φ230x99mm | Φ200-210mm |
| Input | 220-240VAC | LED Source | LumiLEDs LM80 SMD |
| Materials | Aluminum+ PMMA Diffuser | PF | >0.9 |
| Watts | 15W/25W/40W/50W | Lumen Effective | 110LM/W |
| Color Temperature | 2800-6500K | CRI | >80 |
| IP Rating | IP42 | Body Color | White |
| Warranty | 3-5 years | Certifications | SAA CE ROHS |
Send Your Inquiry
1. Versatility: The downlight offers a wide range of color temperature options (3000K, 4000K, 5000K, 6000K) and sizes (3 inches to 8 inches), allowing you to customize the lighting to suit your specific requirements and preferences.
2. High-Quality Illumination: Equipped with LM80 LumiLEDs CRI 82 LEDs, this downlight ensures excellent color rendering and provides soft and even lighting, creating a comfortable and visually pleasing atmosphere.
3. Energy Efficiency: With a power factor greater than 0.9 and flicker-free operation, the downlight maximizes energy efficiency, reducing power consumption and minimizing the strain on the electrical system.
4. Durability and Longevity: The downlight features an aluminum body and PMMA diffuser, which not only provide durability but also ensure efficient heat dissipation for prolonged lifespan. With a life expectancy of 50,000 hours, it offers long-lasting performance and reduces maintenance needs.
5. Compatibility and Control: The downlight is designed to work seamlessly with DALI Lighting Control Systems, allowing for advanced control and management of lighting settings. It can be easily integrated into existing DALI systems for centralized control and automation.
6. Safety and Compliance: The downlight is free from blue light hazards and flickering, ensuring a safe and comfortable lighting experience. It is also compliant with Electric Class II safety standards, offering enhanced electrical protection.
7. Easy Installation: The recessed mounting design and easy connection features make the installation process simple and convenient, saving time and effort during setup.
8. Emergency Lighting Option: The downlight is compatible with emergency kits, making it suitable for applications where emergency lighting functionality is required, providing added safety and security.
9. Reliability: The downlight utilizes high-quality external DALI drivers from reputed brands such as BOKE, VS, TCI, Osram, or Tridonic, ensuring reliable performance and peace of mind.
10. Aesthetically Pleasing: With its anti-UV and non-yellowing properties, the downlight maintains its visual appeal over time, resisting discoloration and preserving its original appearance.
Q1: What are the available color temperature options for the DALI Lighting LED Recessed Downlight SMD (Model: ILED-DL-A D1 DALI)?
A1: The downlight offers color temperature options of 3000K, 4000K, 5000K, and 6000K, allowing you to choose the desired lighting ambiance for your space.
Q2: What is the power range and input voltage compatibility of this downlight?
A2: The downlight has a power range of 10W to 50W and is compatible with input voltages ranging from 220-240VAC to 110-277VAC, providing flexibility for various electrical requirements.
Q3: Can you specify the LED source used in this downlight?
A3: The downlight utilizes LM80 LumiLEDs CRI 82 LEDs, ensuring high-quality illumination with accurate color rendering.
Q4: Does this downlight come with an external driver?
A4: Yes, the downlight requires an external DALI driver for operation. You can select from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic for the driver.
Q5: Does this downlight emit blue light or cause flickering?
A5: No, the downlight is designed to be free from blue light hazards and flickering, ensuring a safe and comfortable lighting experience.
Q6: What materials are used in the construction of this downlight?
A6: The downlight features an aluminum body and a PMMA diffuser, providing durability and efficient heat dissipation for optimal performance.
Q7: Can this downlight be used with emergency kits?
A7: Yes, the downlight is compatible with emergency kits, making it suitable for applications that require emergency lighting functionality.
Q8: What is the lifespan of this downlight?
A8: The downlight has a lifespan of 50,000 hours, ensuring long-lasting performance and reducing the need for frequent maintenance or replacement.
1. Residential Spaces: Install the downlights in living rooms, bedrooms, kitchens, and hallways to provide efficient and comfortable lighting for everyday activities and create a pleasant ambiance.
2. Commercial Buildings: Illuminate office spaces, conference rooms, reception areas, and corridors with these downlights to enhance productivity, create a professional atmosphere, and ensure adequate lighting for tasks and navigation.
3. Retail Stores: Use the downlights to highlight product displays, aisles, and checkout areas, enhancing the visual appeal and attractiveness of the merchandise while providing optimal lighting for customers and staff.
4. Hospitality Establishments: Illuminate hotel rooms, lobbies, restaurants, and lounges with these downlights to create a welcoming and inviting atmosphere for guests, ensuring proper lighting for comfort and functionality.
5. Educational Institutions: Install the downlights in classrooms, libraries, corridors, and common areas of schools, colleges, and universities to provide bright and uniform lighting for learning environments and student activities.
6. Healthcare Facilities: Use the downlights in hospitals, clinics, and medical centers to provide optimal lighting for examination rooms, patient rooms, waiting areas, and hallways, ensuring a comfortable and well-lit environment.
7. Museums and Galleries: Illuminate artwork, exhibits, and displays with these downlights to enhance the visual impact and showcase the details and colors of the artistic pieces.
8. Corporate Offices: Install the downlights in office spaces, meeting rooms, and breakout areas to create a bright and productive working environment, promoting employee well-being and productivity.
9. Restaurants and Cafes: Use the downlights to create a cozy and inviting atmosphere for dining areas, highlighting tables, counters, and focal points while ensuring proper illumination for customers and staff.
10. Other Indoor Spaces: These downlights can also be used in libraries, theaters, event venues, showrooms, and other indoor areas where high-quality lighting and aesthetics are important.
