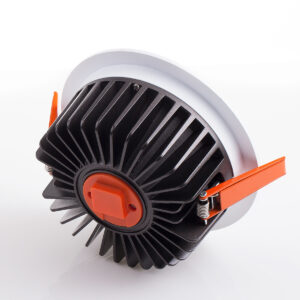

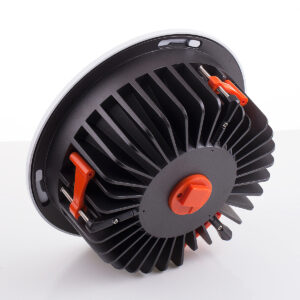

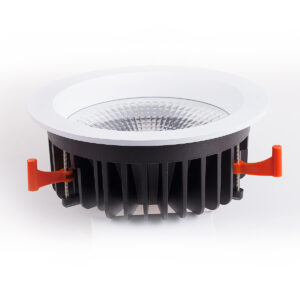

DALI Lighting LED Recessed Downlight COB

The DALI Lighting LED Recessed Downlight COB is a versatile and efficient lighting solution. It offers a power range of 10W to 40W and sizes from 3 inches to 8 inches. With CREE or Citizen COB LEDs, it provides high-quality lighting with CRI 90. It is free from blue light hazards and flickering. Compatible with branded DALI drivers like BOKE, Tridonic, Osram, VS, or TCI, it ensures reliable performance. Optional emergency functionality is available. It works well with DALI Lighting Systems and offers easy connection and recessed mounting. With a UGR<19 option, it reduces glare for enhanced visual comfort.

Highlights

→ DALI2

→ CREE or Citizen COB CRI92

→ Aluminum Body

→ Emergency Option

Model Watts Lumen Size Cutout
ILED-DL3-A D2 DALI 12W 1350LM φ110x53mm Φ95mm
ILED-DL4-A D2 DALI 20W 2200LM Φ145x69mm Φ120-130mm
ILED-DL6-A D2 DALI 30W 3300LM Φ190x86mm Φ165-170mm
ILED-DL8-A D2 DALI 40W 4400LM Φ230x99mm Φ200-210mm



Input 220-240VAC LED Source CREE or Citizen COB LED
Materials Aluminum+Reflector+Glass Diffuser PF >0.9
Watts 12W/20W/30W/40W Lumen Effective 110LM/W
Color Temperature 2800-6500K CRI >92
IP Rating IP42 Body Color White
Warranty 3-5 years Certifications SAA CE ROHS

Send Your Inquiry

The DALI Lighting LED Recessed Downlight COB(Model:ILED-DL-A D2 DALI) is a versatile and high-performance lighting solution suitable for various applications. With its sleek design and advanced features, it provides efficient and visually pleasing illumination. Featuring a wide range of available color temperature options including 3000K, 4000K, 5000K, and 6000K, the downlight allows you to create the desired lighting ambiance for different spaces. It operates on a wide input voltage range of 220-240VAC/110-277VAC and offers a power range of 10-40W, providing flexibility to meet specific lighting requirements. Equipped with LM80 CRI90 CREE or Citizen COB LEDs, the downlight delivers high-quality light output with excellent color rendering. The external quality brand DALI driver options such as BOKE, VS, TCI, Osram, or Tridonic ensure reliable and efficient operation. Safety and comfort are prioritized with this downlight as it is designed to be free from blue light hazards and flickering. It has a power factor greater than 0.9, ensuring efficient energy usage and flicker-free lighting. Constructed with an aluminum body and a tempered glass diffuser, the downlight is durable and provides a soft and even lighting distribution. It is also anti-UV and does not produce a yellowish tint, maintaining its appearance and light quality over time. Installation is convenient with its recessed mount design, and it is classified as Electric Class II. The downlight can be integrated with emergency kits, adding functionality in critical situations. With a long lifespan of 50,000 hours, the downlight offers long-lasting performance, reducing maintenance and replacement costs. It has a beam angle of 60°, providing focused illumination where needed. The downlight is compatible with DALI Lighting Control Systems, allowing for convenient and efficient control over the lighting environment. It has an IP42 rating, offering protection against dust and moisture, and an IK06 rating, ensuring resistance to impact. For reduced glare, an anti-glare UGR 19 option is available, enhancing visual comfort in various settings. Additionally, the downlight offers easy connection, simplifying the installation process. Overall, the DALI Lighting LED Recessed Downlight COB combines advanced features, durability, and energy efficiency, making it an excellent choice for a wide range of residential and commercial lighting applications.

1.  Versatility: The downlight offers a wide range of options, including different sizes (3 inches to 8 inches), color temperatures (3000K, 4000K, 5000K, 6000K), and power ranges (10W to 40W). This versatility allows you to select the right combination that suits your specific lighting requirements and aesthetic preferences.
2. High-Quality Lighting: Equipped with LM80 CRI90 CREE or Citizen COB LEDs, the downlight delivers excellent light output with accurate color rendering. With a lumen efficacy of up to 110LM/W, it provides bright and efficient illumination, ensuring that your space is well-lit and visually appealing.
3.  Safety and Comfort: The downlight is designed to prioritize safety and comfort. It is free from blue light hazards and flickering, creating a safe and comfortable environment for inhabitants. Additionally, the flicker-free operation and anti-glare features promote visual comfort, reducing eye strain and fatigue.
4. Durability and Longevity: Constructed with an aluminum body and a tempered glass diffuser, the downlight boasts durability and can withstand the rigors of everyday use. With a lifespan of 50,000 hours, it offers long-lasting performance, reducing the need for frequent replacements and maintenance.
5. Compatibility and Control: The downlight works seamlessly with DALI Lighting Control Systems, allowing for convenient and efficient control over the lighting environment. This integration enables you to customize and adjust the lighting according to your preferences and needs.
6. Energy Efficiency: With a power factor greater than 0.9, the downlight ensures efficient energy usage, contributing to energy savings and lower electricity costs. Its high luminous efficacy also means that it produces more light output while consuming less energy.
7. Easy Installation and Connection: The downlight features an easy connection design, simplifying the installation process. Whether you’re a professional installer or a DIY enthusiast, you can easily set up the downlight without hassle.
8. Additional Features: The downlight offers several additional features, including compatibility with emergency kits for added functionality during critical situations, an anti-UV and non-yellowing design for long-term aesthetics, and IP42 and IK06 ratings for protection against dust, moisture, and impact.

Q1: What sizes are available for the DALI Lighting LED Recessed Downlight COB?
A1: The downlight is available in sizes ranging from 3 inches to 8 inches, offering flexibility to suit various installation requirements.

Q2: What color temperature options are offered for this downlight?
A2: The downlight provides color temperature options of 3000K, 4000K, 5000K, and 6000K, allowing you to choose the desired lighting ambiance.

Q3: Can this downlight work with different input voltages?
A3: Yes, the downlight is designed to accommodate input voltages of 220-240VAC and 110-277VAC, providing compatibility with a wide range of electrical systems.

Q4: What kind of LEDs are used in this downlight?
A4: The downlight features high-quality LM80 CRI90 CREE or Citizen COB LEDs, ensuring excellent light output and accurate color rendering.

Q5: Which DALI drivers are compatible with this downlight?
A5: The downlight is compatible with well-known DALI drivers such as BOKE, VS, TCI, Osram, or Tridonic, ensuring reliable performance and compatibility.

Q6: Is this downlight free from blue light hazards and flickering?
A6: Yes, the downlight is designed to be free from blue light hazards and flickering, providing a safe and comfortable lighting environment.

Q7: Can this downlight be used with emergency kits?
A7: Yes, the downlight can work with emergency kits, adding an extra level of functionality and safety in critical situations.

Q8: What is the lifespan of this downlight?
A8: The downlight has a long lifespan of 50,000 hours, ensuring long-lasting performance and reducing maintenance and replacement costs.

Q9: Does this downlight have an anti-glare feature?
A9: Yes, an anti-glare UGR 19 option is available for the downlight, reducing glare and enhancing visual comfort in various settings.

Q10: Is this downlight compatible with DALI Lighting Control Systems?
A10: Yes, the downlight is designed to work well with DALI Lighting Control Systems, allowing for convenient and efficient control over the lighting environment.

1. Residential Spaces: The downlight is an ideal lighting solution for homes, including living rooms, bedrooms, kitchens, and dining areas. Its versatile design and adjustable color temperature options allow you to create the desired ambiance and lighting atmosphere in different areas of your home.
2. Commercial and Retail Environments: The downlight is well-suited for commercial spaces such as offices, conference rooms, reception areas, and retail stores. Its high-quality lighting output and accurate color rendering enhance visibility and create a professional and inviting atmosphere.
3. Hospitality Industry: Hotels, restaurants, cafes, and bars can benefit from the downlight’s versatility and aesthetics. It can be used to create a warm and welcoming ambiance in lobbies, corridors, dining areas, and guest rooms.
4. Healthcare Facilities: The downlight’s flicker-free and blue light hazard-free features make it suitable for healthcare environments such as hospitals, clinics, and medical centers. It provides comfortable and safe lighting for patients, staff, and visitors.
5. Educational Institutions: Schools, colleges, and universities can utilize the downlight to illuminate classrooms, libraries, study areas, and common spaces. Its high-quality lighting promotes a conducive learning environment.
6. Commercial Buildings: The downlight is an excellent choice for office buildings, retail complexes, and commercial spaces with recessed lighting requirements. Its easy installation and compatibility with DALI lighting control systems make it convenient for large-scale applications.
7. Exhibition and Gallery Spaces: Museums, art galleries, and exhibition halls can benefit from the downlight’s accurate color rendering, adjustable color temperature options, and anti-glare features. It highlights artwork and displays effectively while providing a comfortable viewing experience.
8. Hospitality and Entertainment Venues: The downlight can be used in hotels, resorts, theaters, and entertainment venues to create a visually appealing and immersive environment. Its adjustable color temperature options allow for flexibility in adapting to different themes and moods.

Specifications
Model Watts Lumen Size Cutout
ILED-DL3-A D2 DALI 12W 1350LM φ110x53mm Φ95mm
ILED-DL4-A D2 DALI 20W 2200LM Φ145x69mm Φ120-130mm
ILED-DL6-A D2 DALI 30W 3300LM Φ190x86mm Φ165-170mm
ILED-DL8-A D2 DALI 40W 4400LM Φ230x99mm Φ200-210mm



Input 220-240VAC LED Source CREE or Citizen COB LED
Materials Aluminum+Reflector+Glass Diffuser PF >0.9
Watts 12W/20W/30W/40W Lumen Effective 110LM/W
Color Temperature 2800-6500K CRI >92
IP Rating IP42 Body Color White
Warranty 3-5 years Certifications SAA CE ROHS

Send Your Inquiry

Description
The DALI Lighting LED Recessed Downlight COB(Model:ILED-DL-A D2 DALI) is a versatile and high-performance lighting solution suitable for various applications. With its sleek design and advanced features, it provides efficient and visually pleasing illumination. Featuring a wide range of available color temperature options including 3000K, 4000K, 5000K, and 6000K, the downlight allows you to create the desired lighting ambiance for different spaces. It operates on a wide input voltage range of 220-240VAC/110-277VAC and offers a power range of 10-40W, providing flexibility to meet specific lighting requirements. Equipped with LM80 CRI90 CREE or Citizen COB LEDs, the downlight delivers high-quality light output with excellent color rendering. The external quality brand DALI driver options such as BOKE, VS, TCI, Osram, or Tridonic ensure reliable and efficient operation. Safety and comfort are prioritized with this downlight as it is designed to be free from blue light hazards and flickering. It has a power factor greater than 0.9, ensuring efficient energy usage and flicker-free lighting. Constructed with an aluminum body and a tempered glass diffuser, the downlight is durable and provides a soft and even lighting distribution. It is also anti-UV and does not produce a yellowish tint, maintaining its appearance and light quality over time. Installation is convenient with its recessed mount design, and it is classified as Electric Class II. The downlight can be integrated with emergency kits, adding functionality in critical situations. With a long lifespan of 50,000 hours, the downlight offers long-lasting performance, reducing maintenance and replacement costs. It has a beam angle of 60°, providing focused illumination where needed. The downlight is compatible with DALI Lighting Control Systems, allowing for convenient and efficient control over the lighting environment. It has an IP42 rating, offering protection against dust and moisture, and an IK06 rating, ensuring resistance to impact. For reduced glare, an anti-glare UGR 19 option is available, enhancing visual comfort in various settings. Additionally, the downlight offers easy connection, simplifying the installation process. Overall, the DALI Lighting LED Recessed Downlight COB combines advanced features, durability, and energy efficiency, making it an excellent choice for a wide range of residential and commercial lighting applications.
Why choose us?

1.  Versatility: The downlight offers a wide range of options, including different sizes (3 inches to 8 inches), color temperatures (3000K, 4000K, 5000K, 6000K), and power ranges (10W to 40W). This versatility allows you to select the right combination that suits your specific lighting requirements and aesthetic preferences.
2. High-Quality Lighting: Equipped with LM80 CRI90 CREE or Citizen COB LEDs, the downlight delivers excellent light output with accurate color rendering. With a lumen efficacy of up to 110LM/W, it provides bright and efficient illumination, ensuring that your space is well-lit and visually appealing.
3.  Safety and Comfort: The downlight is designed to prioritize safety and comfort. It is free from blue light hazards and flickering, creating a safe and comfortable environment for inhabitants. Additionally, the flicker-free operation and anti-glare features promote visual comfort, reducing eye strain and fatigue.
4. Durability and Longevity: Constructed with an aluminum body and a tempered glass diffuser, the downlight boasts durability and can withstand the rigors of everyday use. With a lifespan of 50,000 hours, it offers long-lasting performance, reducing the need for frequent replacements and maintenance.
5. Compatibility and Control: The downlight works seamlessly with DALI Lighting Control Systems, allowing for convenient and efficient control over the lighting environment. This integration enables you to customize and adjust the lighting according to your preferences and needs.
6. Energy Efficiency: With a power factor greater than 0.9, the downlight ensures efficient energy usage, contributing to energy savings and lower electricity costs. Its high luminous efficacy also means that it produces more light output while consuming less energy.
7. Easy Installation and Connection: The downlight features an easy connection design, simplifying the installation process. Whether you’re a professional installer or a DIY enthusiast, you can easily set up the downlight without hassle.
8. Additional Features: The downlight offers several additional features, including compatibility with emergency kits for added functionality during critical situations, an anti-UV and non-yellowing design for long-term aesthetics, and IP42 and IK06 ratings for protection against dust, moisture, and impact.

Frequently Asked Questions

Q1: What sizes are available for the DALI Lighting LED Recessed Downlight COB?
A1: The downlight is available in sizes ranging from 3 inches to 8 inches, offering flexibility to suit various installation requirements.

Q2: What color temperature options are offered for this downlight?
A2: The downlight provides color temperature options of 3000K, 4000K, 5000K, and 6000K, allowing you to choose the desired lighting ambiance.

Q3: Can this downlight work with different input voltages?
A3: Yes, the downlight is designed to accommodate input voltages of 220-240VAC and 110-277VAC, providing compatibility with a wide range of electrical systems.

Q4: What kind of LEDs are used in this downlight?
A4: The downlight features high-quality LM80 CRI90 CREE or Citizen COB LEDs, ensuring excellent light output and accurate color rendering.

Q5: Which DALI drivers are compatible with this downlight?
A5: The downlight is compatible with well-known DALI drivers such as BOKE, VS, TCI, Osram, or Tridonic, ensuring reliable performance and compatibility.

Q6: Is this downlight free from blue light hazards and flickering?
A6: Yes, the downlight is designed to be free from blue light hazards and flickering, providing a safe and comfortable lighting environment.

Q7: Can this downlight be used with emergency kits?
A7: Yes, the downlight can work with emergency kits, adding an extra level of functionality and safety in critical situations.

Q8: What is the lifespan of this downlight?
A8: The downlight has a long lifespan of 50,000 hours, ensuring long-lasting performance and reducing maintenance and replacement costs.

Q9: Does this downlight have an anti-glare feature?
A9: Yes, an anti-glare UGR 19 option is available for the downlight, reducing glare and enhancing visual comfort in various settings.

Q10: Is this downlight compatible with DALI Lighting Control Systems?
A10: Yes, the downlight is designed to work well with DALI Lighting Control Systems, allowing for convenient and efficient control over the lighting environment.

Applications

1. Residential Spaces: The downlight is an ideal lighting solution for homes, including living rooms, bedrooms, kitchens, and dining areas. Its versatile design and adjustable color temperature options allow you to create the desired ambiance and lighting atmosphere in different areas of your home.
2. Commercial and Retail Environments: The downlight is well-suited for commercial spaces such as offices, conference rooms, reception areas, and retail stores. Its high-quality lighting output and accurate color rendering enhance visibility and create a professional and inviting atmosphere.
3. Hospitality Industry: Hotels, restaurants, cafes, and bars can benefit from the downlight’s versatility and aesthetics. It can be used to create a warm and welcoming ambiance in lobbies, corridors, dining areas, and guest rooms.
4. Healthcare Facilities: The downlight’s flicker-free and blue light hazard-free features make it suitable for healthcare environments such as hospitals, clinics, and medical centers. It provides comfortable and safe lighting for patients, staff, and visitors.
5. Educational Institutions: Schools, colleges, and universities can utilize the downlight to illuminate classrooms, libraries, study areas, and common spaces. Its high-quality lighting promotes a conducive learning environment.
6. Commercial Buildings: The downlight is an excellent choice for office buildings, retail complexes, and commercial spaces with recessed lighting requirements. Its easy installation and compatibility with DALI lighting control systems make it convenient for large-scale applications.
7. Exhibition and Gallery Spaces: Museums, art galleries, and exhibition halls can benefit from the downlight’s accurate color rendering, adjustable color temperature options, and anti-glare features. It highlights artwork and displays effectively while providing a comfortable viewing experience.
8. Hospitality and Entertainment Venues: The downlight can be used in hotels, resorts, theaters, and entertainment venues to create a visually appealing and immersive environment. Its adjustable color temperature options allow for flexibility in adapting to different themes and moods.
