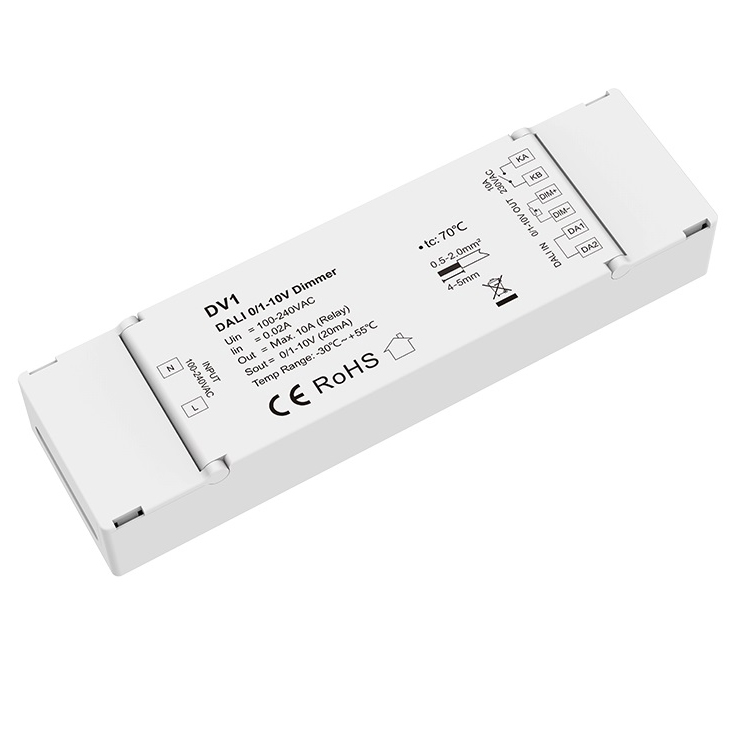

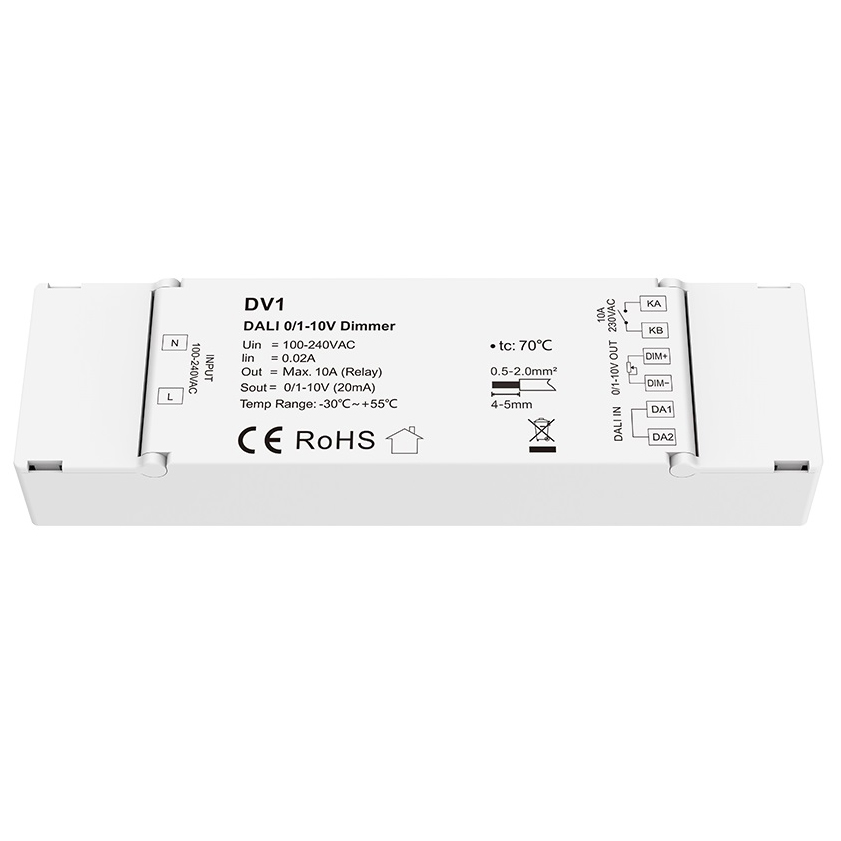

0-10V DT5 DALI 1 10V Dimmer
1. 1 DALI address, 1 channel 0/1-10V output
2. Powered by AC100-240V
3. 10A dry contact mains rated relay output
4. 0-10V or 1-10V output selectable
5. In accordance with DALI standard protocol lEC 62386 and in compliance with DALl products from other international incorporation
6. Compliant DALI device type 5.
Highlights
→ 1 DALI Address, 1 Channel 0/1-10V Output
→ 0-10V or 1-1 0V Output Selectable
→ DALI Address can be Manually Assigned
→ Compliance with DALI, DALI2
Model NO.:Â | DV1 | Brand |
FlexCUBE |
Input Voltage | 110-240VAC | Input Signal | DALI |
Output Signal | 0/1-10V, 20mA | ||
Max Relay Load Current |
10A Resistive Load/8A Incandescent/5A Inductive Load | ||
Dimming Range |
0-100% | ||
Dimming Curve |
Linear(Default) | ||
Size |
L135mm x W40mm x H23mm | ||
Packaging | White Box or Colorful Box, any OEM can be supported. | ||
Functions |
1. 1 DALI address, 1 channel 0/1-10V output 2. Powered by AC100-240V 3. 10A dry contact mains rated relay output 4. 0-10V or 1-10V output selectable 5. In accordance with DALI standard protocol lEC 62386 and in compliance with DALl products from other international incorporation 6. Compliant DALI device type 5 |
Send Your Inquiry
Model NO.:Â | DV1 | Brand |
FlexCUBE |
Input Voltage | 110-240VAC | Input Signal | DALI |
Output Signal | 0/1-10V, 20mA | ||
Max Relay Load Current |
10A Resistive Load/8A Incandescent/5A Inductive Load | ||
Dimming Range |
0-100% | ||
Dimming Curve |
Linear(Default) | ||
Size |
L135mm x W40mm x H23mm | ||
Packaging | White Box or Colorful Box, any OEM can be supported. | ||
Functions |
1. 1 DALI address, 1 channel 0/1-10V output 2. Powered by AC100-240V 3. 10A dry contact mains rated relay output 4. 0-10V or 1-10V output selectable 5. In accordance with DALI standard protocol lEC 62386 and in compliance with DALl products from other international incorporation 6. Compliant DALI device type 5 |
Send Your Inquiry
Can’t find a suitable product?
All of our LED lighting solutions can be customised to your needs. We also offer free, no-obligation consultations, prototype development, sample testing and can assist with your development projects.
Simply call us on with your special requirements and our experts will gladly help you find the best solution for your project.
