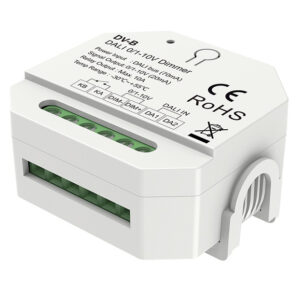

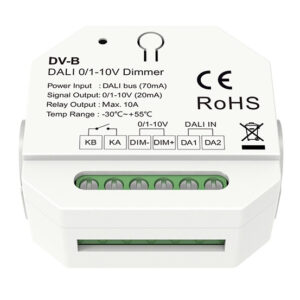

1-10V DT5 DALI 0 10V Dimmer
1. 1 DALI address, 1 channel 0/1-10V output.
2. Powered by DALI bus.
3. 10A dry contact mains rated relay output.
4. 0-10V or 1-10V output selectable.
5. In accordance with DALI slandard protocol lEC 62386-101, EC 62386-102lEC 62386-206 and in compliance with DALI products from other international incorporation.
6. Compliant DALI device type 5
Highlights
→ 1 DALI Address, 1 Channel 0/1-10V Output
→ Powerded by DALI BUS
→ 0-10V or 1-1 0V Output Selectable
→ Compliance with DALI, DALI2
→ Wall or Rail Mounted
| Model NO.:Â | DV-B | Brand |
FlexCUBE |
| Input Power | DALI Bus | Static Current |
10mA@16V |
| Output Signal | 0/1-10V, 20mA | ||
| Working Current |
Max. 70mA@16V | ||
| Max Relay Load Current |
10A Resistive Load/8A Incandescent/5A Inductive Load | ||
| Dimming Range |
0-100% | ||
| Dimming Curve |
Linear(Default) | ||
| Size |
L60mm x W60mm x H40mm | ||
| Packaging | White Box or Colorful Box, any OEM can be supported. | ||
| Functions |
1. 1 DALI address, 1 channel 0/1-10V output. 2. Powered by DALI bus. 3. 10A dry contact mains rated relay output. 4. 0-10V or 1-10V output selectable. 5. In accordance with DALI slandard protocol lEC 62386-101, EC 62386-102lEC 62386-206 and in compliance with DALI products from other international incorporation. 6. Compliant DALI device type 5 |
||
Send Your Inquiry
| Model NO.:Â | DV-B | Brand |
FlexCUBE |
| Input Power | DALI Bus | Static Current |
10mA@16V |
| Output Signal | 0/1-10V, 20mA | ||
| Working Current |
Max. 70mA@16V | ||
| Max Relay Load Current |
10A Resistive Load/8A Incandescent/5A Inductive Load | ||
| Dimming Range |
0-100% | ||
| Dimming Curve |
Linear(Default) | ||
| Size |
L60mm x W60mm x H40mm | ||
| Packaging | White Box or Colorful Box, any OEM can be supported. | ||
| Functions |
1. 1 DALI address, 1 channel 0/1-10V output. 2. Powered by DALI bus. 3. 10A dry contact mains rated relay output. 4. 0-10V or 1-10V output selectable. 5. In accordance with DALI slandard protocol lEC 62386-101, EC 62386-102lEC 62386-206 and in compliance with DALI products from other international incorporation. 6. Compliant DALI device type 5 |
||
Send Your Inquiry
