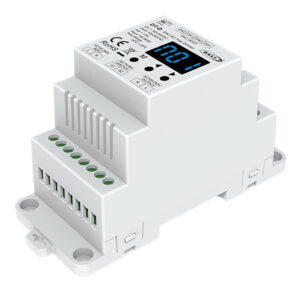

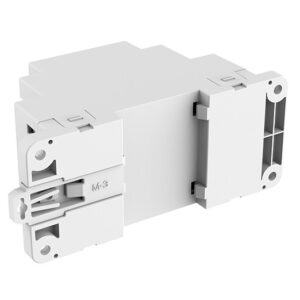

AC Rail Mounted DT4 Push Triac DALI Phase Dimmer
1. AC phase-cut DALI dimmer, one DALI address, one channel output
2. Numeric display, set DALI address, dimming mode,dimming curve, minimum brightness by button
3. DALI address can be manually assigned and shownin digital display or automatically assigned by DALI master
4. Reverse-phase dimming or forward,phase dimming selectable
5. Linear dimming or logarithmic dimming selectable
6. Connect with external push switch to achieve on/off and 0-100% dimming function
7. To dim and switch single color dimmable lED lamps,traditional incandescent and halogen lights
8. Over-heat protection, recover automatically

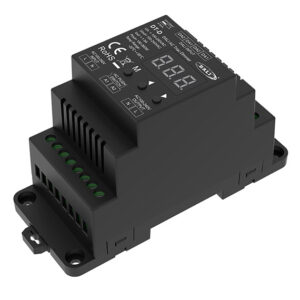

9. Available in white or black
10. In accordance with DALI standard protocol lEC 62386-102, IEC 62386-207 and in compliance with DALI products from oher international incorporation
Highlights
→ 1 DALI Address, 1 Channel Output
→ Numeric display
→ DALI Address Assigned Auto by DALI Master
→ Compliance with DALI, DALI2
→ Support Push Dimmer
Model NO.:Â | DT-D | Brand |
FlexCUBE |
Input Voltage | 110-240VAC | Output Voltage | 110-240VAC |
Input Singal | DALI, AC Push | ||
Output Current | Max. 1.5A | ||
Output Power | 150-360W | ||
Dimming Curve |
Linear / Logarithmic | ||
Dimming Range |
0-100% | ||
Dimming Level |
256 levels | ||
Size |
L120mm x W78mm x H55mm | ||
Packaging | White Box or Colorful Box, any OEM can be supported. | ||
Functions |
1. AC phase-cut DALI dimmer, one DALI address, one channel output 2. Numeric display, set DALI address, dimming mode,dimming curve, minimum brightness by button 3. DALI address can be manually assigned and shownin digital display or automatically assigned by DALI master 4. Reverse-phase dimming or forward,phase dimming selectable 5. Linear dimming or logarithmic dimming selectable 6. Connect with external push switch to achieve on/off and 0-100% dimming function 7. To dim and switch single color dimmable lED lamps,traditional incandescent and halogen lights 8. Over-heat protection, recover automatically 9. Available in white or black 10. In accordance with DALI standard protocol lEC 62386-102, IEC 62386-207 and in compliance with DALI products from oher international incorporation |
Send Your Inquiry
Model NO.:Â | DT-D | Brand |
FlexCUBE |
Input Voltage | 110-240VAC | Output Voltage | 110-240VAC |
Input Singal | DALI, AC Push | ||
Output Current | Max. 1.5A | ||
Output Power | 150-360W | ||
Dimming Curve |
Linear / Logarithmic | ||
Dimming Range |
0-100% | ||
Dimming Level |
256 levels | ||
Size |
L120mm x W78mm x H55mm | ||
Packaging | White Box or Colorful Box, any OEM can be supported. | ||
Functions |
1. AC phase-cut DALI dimmer, one DALI address, one channel output 2. Numeric display, set DALI address, dimming mode,dimming curve, minimum brightness by button 3. DALI address can be manually assigned and shownin digital display or automatically assigned by DALI master 4. Reverse-phase dimming or forward,phase dimming selectable 5. Linear dimming or logarithmic dimming selectable 6. Connect with external push switch to achieve on/off and 0-100% dimming function 7. To dim and switch single color dimmable lED lamps,traditional incandescent and halogen lights 8. Over-heat protection, recover automatically 9. Available in white or black 10. In accordance with DALI standard protocol lEC 62386-102, IEC 62386-207 and in compliance with DALI products from oher international incorporation |
Send Your Inquiry
