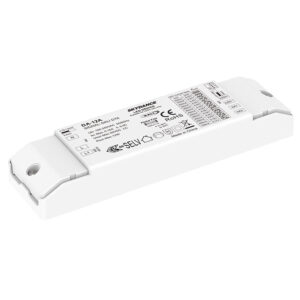

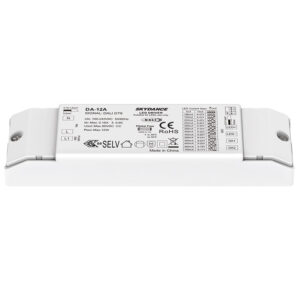

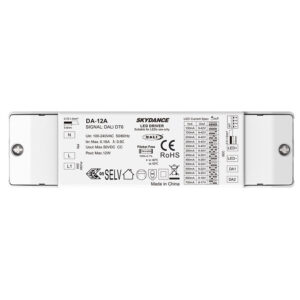

12W 100-700mA Constant Current Dimmable DALI LED Driver
1. Support DALI2, Push DlM dimming mode.
2. Class ll design, SELV safety ultra-low voltage.
3. PWM digital dimming, standard DALI logarithmic dimming curve.
4. DALI address will be automatically assigned by DALI master, 1 DALI address.
5. Universal AC input / Ful range, High PF, High efficiency, Flicker Free.
6. Standby power input<0.5W, meels the requiremenls of ERP certification.
7. Multi-current & wide voltage, suitable for different power LEDs.
8. Over-heat /Over-load / Short circuit protection, recover automatically.
9. Suitable for indoor LED lighting application.
Highlights
→ DT6 DALI 2, PUSH DIM
→ High PF,Flicker Free, Low THD
→ 110-240VAC
→ PWM digital dimming
→ Over-heat /Over-load / Short circuit protection, recover automatically.
Model NO. |
DA-12A | Brand | FlexCUBE |
Input | 110-240VAC | Frequency | 50/60Hz |
Efficiency | >83% | PF | >0.95 |
Output Voltage |
10-42VDC | Output Current |
100-700mA |
Max. O-Voltage |
48VDC | Output Power |
Max. 12W |
Ta |
50℃ |
Tc |
80℃ |
Dimming | 0-100%(Dimming Depth 0.1%) |
THD |
<12%@240VAC |
Protection type | Class II | PMW Frequency |
3600Hz |
Output type  |
SELV |
Operation temperature |
-20°C-50°C |
Warranty | 5 years | Certifications | SAA CE ROHS |
Surge |
L-N:1KV |
||
Features | 1. Support DALI2, Push DlM dimming mode. 2. Class ll design, SELV safety ultra-low voltage. 3. PWM digital dimming, standard DALI logarithmic dimming curve. 4. DALI address will be automatically assigned by DALI master, 1 DALI address. 5. Universal AC input / Ful range, High PF, High efficiency, Flicker Free. 6. Standby power input<0.5W, meels the requiremenls of ERP certification. 7. Multi-current & wide voltage, suitable for different power LEDs. 8. Over-heat /Over-load / Short circuit protection, recover automatically. 9. Suitable for indoor LED lighting application. 10. In accordance with DALI standard protocol lEC 62386-102,IEC 62386-207 and in compliance with DALI products from other international incorporation. |
Send Your Inquiry
Model NO. |
DA-12A | Brand | FlexCUBE |
Input | 110-240VAC | Frequency | 50/60Hz |
Efficiency | >83% | PF | >0.95 |
Output Voltage |
10-42VDC | Output Current |
100-700mA |
Max. O-Voltage |
48VDC | Output Power |
Max. 12W |
Ta |
50℃ |
Tc |
80℃ |
Dimming | 0-100%(Dimming Depth 0.1%) |
THD |
<12%@240VAC |
Protection type | Class II | PMW Frequency |
3600Hz |
Output type  |
SELV |
Operation temperature |
-20°C-50°C |
Warranty | 5 years | Certifications | SAA CE ROHS |
Surge |
L-N:1KV |
||
Features | 1. Support DALI2, Push DlM dimming mode. 2. Class ll design, SELV safety ultra-low voltage. 3. PWM digital dimming, standard DALI logarithmic dimming curve. 4. DALI address will be automatically assigned by DALI master, 1 DALI address. 5. Universal AC input / Ful range, High PF, High efficiency, Flicker Free. 6. Standby power input<0.5W, meels the requiremenls of ERP certification. 7. Multi-current & wide voltage, suitable for different power LEDs. 8. Over-heat /Over-load / Short circuit protection, recover automatically. 9. Suitable for indoor LED lighting application. 10. In accordance with DALI standard protocol lEC 62386-102,IEC 62386-207 and in compliance with DALI products from other international incorporation. |
Send Your Inquiry
