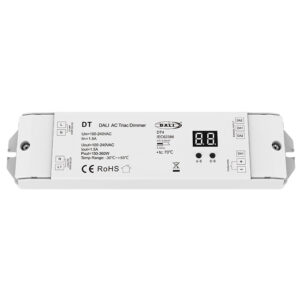

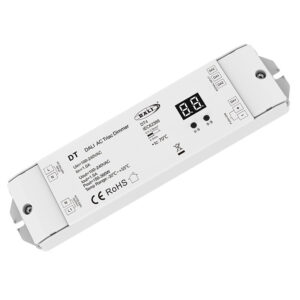

150 -360W 110-240V AC DT4 Push DALI Triac Dimmer
1. AC phase-cut DALI dimmer, one DALI address, one channel output.
2. Reverse-phase dimming or forward-phase dimming selectable.
3. Connect with extemal push switch to achieve on/off and 0-100% dimming function.
4. To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
5. Over-heat protection, recover automatically.
6. In accordance with DALI standard protocol lEC 62386-102, IEC 62386-205 and in compliance with DALI products from other intemational incorporation.
7. DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master.
Highlights
→ 1 DALI Address, 1 Channel Output
→ DALI Address Assigned shown in Digital Display.
→ DALI Address Assigned Auto by DALI Master
→ Compliance with DALI, DALI2
→ Support Push Dimmer
Model NO.:Â | DT | Brand |
FlexCUBE |
Input Voltage | 110-240VAC | Output Voltage | 110-240VAC |
Output Current | Max. 1.5A | ||
Output Power | 150-360W | ||
Dimming Range |
0-100% | ||
Dimming Level |
256 levels | ||
Size |
L190mm x W48mm x H25mm | ||
Packaging | White Box or Colorful Box, any OEM can be supported. | ||
Functions |
1. AC phase-cut DALI dimmer, one DALI address, one channel output. 2. Reverse-phase dimming or forward-phase dimming selectable. 3. Connect with extemal push switch to achieve on/off and 0-100% dimming function. 4. To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights. 5. Over-heat protection, recover automatically. 6. In accordance with DALI standard protocol lEC 62386-102, IEC 62386-205 and in compliance with DALI products from other intemational incorporation. 7. DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master. |
Send Your Inquiry
Model NO.:Â | DT | Brand |
FlexCUBE |
Input Voltage | 110-240VAC | Output Voltage | 110-240VAC |
Output Current | Max. 1.5A | ||
Output Power | 150-360W | ||
Dimming Range |
0-100% | ||
Dimming Level |
256 levels | ||
Size |
L190mm x W48mm x H25mm | ||
Packaging | White Box or Colorful Box, any OEM can be supported. | ||
Functions |
1. AC phase-cut DALI dimmer, one DALI address, one channel output. 2. Reverse-phase dimming or forward-phase dimming selectable. 3. Connect with extemal push switch to achieve on/off and 0-100% dimming function. 4. To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights. 5. Over-heat protection, recover automatically. 6. In accordance with DALI standard protocol lEC 62386-102, IEC 62386-205 and in compliance with DALI products from other intemational incorporation. 7. DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master. |
Send Your Inquiry
