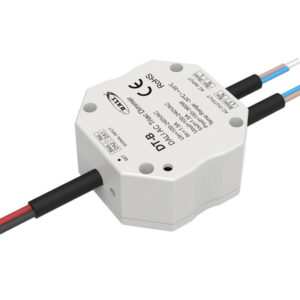

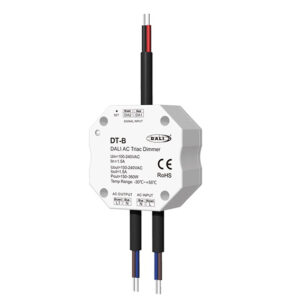

150-360W 110-240V AC DT4 Push Triac DALI Dimmer
1. AC phase-cut Master DALI dimmer, one DALI address, one channel output
2. Trailing Edge Dimmer
3. The minimum brightness is adjustable
4. Connect with extemal push switch to achieve on/off and 0-100% dimming function
5. DALI address can be automatically assigned by DALI Master
6. To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights
7. Over-heat protection, recover automatically
8. In accordance with DALI standard protocol lEC 62386-102, IEC 62386-205 and in compliance with DALI products from other intemational incorporation.
Highlights
→ 1 DALI Address, 1 Channel Output
→ DALI Address Assigned Auto by DALI Master
→ Compliance with DALI, DALI2
→ Support Push Dimmer
→ Adjustable Min. Brightness
| Model NO.:Â | DT-B | Brand |
FlexCUBE |
| Input Voltage | 110-240VAC | Output Voltage | 110-240VAC |
| Input Singal | DALI, AC Push | ||
| Output Current | Max. 1.5A | ||
| Output Power | 150-360W | ||
| Dimming Range |
0-100% | ||
| Dimming Level |
256 levels | ||
| Size |
L75mm x W75mm x H40mm | ||
| Packaging | White Box or Colorful Box, any OEM can be supported. | ||
| Functions |
1. AC phase-cut Master DALI dimmer, one DALI address, one channel output 2. Trailing Edge Dimmer 3. The minimum brightness is adjustable 4. Connect with extemal push switch to achieve on/off and 0-100% dimming function 5. DALI address can be automatically assigned by DALI Master 6. To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights 7. Over-heat protection, recover automatically 8. In accordance with DALI standard protocol lEC 62386-102, IEC 62386-205 and in compliance with DALI products from other intemational incorporation. |
||
Send Your Inquiry
| Model NO.:Â | DT-B | Brand |
FlexCUBE |
| Input Voltage | 110-240VAC | Output Voltage | 110-240VAC |
| Input Singal | DALI, AC Push | ||
| Output Current | Max. 1.5A | ||
| Output Power | 150-360W | ||
| Dimming Range |
0-100% | ||
| Dimming Level |
256 levels | ||
| Size |
L75mm x W75mm x H40mm | ||
| Packaging | White Box or Colorful Box, any OEM can be supported. | ||
| Functions |
1. AC phase-cut Master DALI dimmer, one DALI address, one channel output 2. Trailing Edge Dimmer 3. The minimum brightness is adjustable 4. Connect with extemal push switch to achieve on/off and 0-100% dimming function 5. DALI address can be automatically assigned by DALI Master 6. To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights 7. Over-heat protection, recover automatically 8. In accordance with DALI standard protocol lEC 62386-102, IEC 62386-205 and in compliance with DALI products from other intemational incorporation. |
||
Send Your Inquiry
