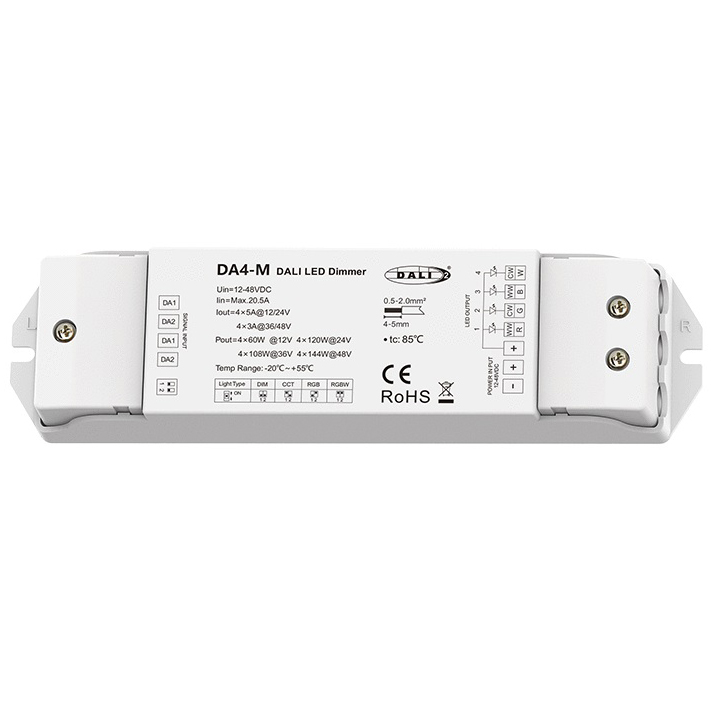

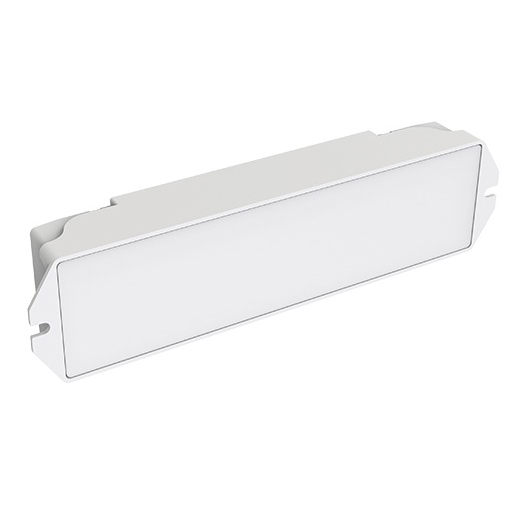

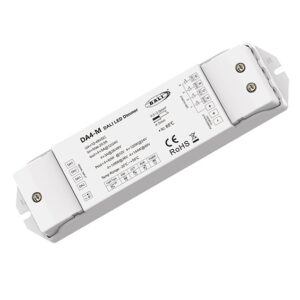

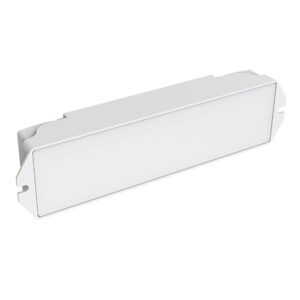

4 Channel 5A DT6 DT8 Constant Voltage DALI LED Dimmer
1. 4 channels constant voltage DALI LED Dimmer
2. 1 DALI address, DT6 Dimming,DT8-CT color temperature or DT8-RGB or DT8-RGBW selectable
3. PWM digital dimming, standard DALI logarithmic dimming curve.
4. DALI address will be automatically assigned by DALI Maser.
5. Over-heat / Overload / Short circuit protection, recover automatically.
Highlights
→ 4 Channels CV DALI Dimmer
→ 1 DALI Address,DT6,DT8-CT,DT8-RGB and DT8-RGBW
→ PMW Digital Dimming
→ Compliance with DALI, DALI2
→ Best Auto Protection
Model NO.:Â | DA4-M | Brand |
FlexCUBE |
Input Voltage | 12-48VDC | Output Voltage | 12-48VDC |
Input Current | Max 20.5A | ||
Output Current | 4x5A @12V/24VDC, 4x3A @ 36V/48VDC | ||
Output Power | 4x60W@12V,4x120W@24V,4x108W@36V,4x144W@48V | ||
Output Type | Constant Voltage | ||
Input Signal | DALI | ||
Dimming Range |
0-100% | ||
Dimming Curve |
Logarithmic | ||
PWM Frequency |
2000 Hz(Default) | ||
Size |
L178mm x W50mm x H38mm | ||
Packaging | White Box or Colorful Box, any OEM can be supported. | ||
Functions |
1. 4 channels constant voltage DALI LED Dimmer 2. 1 DALI address, DT6 Dimming,DT8-CT color temperature or DT8-RGB or DT8-RGBW selectable 3. PWM digital dimming, standard DALI logarithmic dimming curve. 4. DALI address will be automatically assigned by DALI Maser. 5. Over-heat / Overload / Short circuit protection, recover automatically. 6. DALI-2 certified, in accordance with DALI standard protocol IEC 62386-101,102,207 and in compliance with DALI products fromother intemational incorporation. |
Send Your Inquiry
Model NO.:Â | DA4-M | Brand |
FlexCUBE |
Input Voltage | 12-48VDC | Output Voltage | 12-48VDC |
Input Current | Max 20.5A | ||
Output Current | 4x5A @12V/24VDC, 4x3A @ 36V/48VDC | ||
Output Power | 4x60W@12V,4x120W@24V,4x108W@36V,4x144W@48V | ||
Output Type | Constant Voltage | ||
Input Signal | DALI | ||
Dimming Range |
0-100% | ||
Dimming Curve |
Logarithmic | ||
PWM Frequency |
2000 Hz(Default) | ||
Size |
L178mm x W50mm x H38mm | ||
Packaging | White Box or Colorful Box, any OEM can be supported. | ||
Functions |
1. 4 channels constant voltage DALI LED Dimmer 2. 1 DALI address, DT6 Dimming,DT8-CT color temperature or DT8-RGB or DT8-RGBW selectable 3. PWM digital dimming, standard DALI logarithmic dimming curve. 4. DALI address will be automatically assigned by DALI Maser. 5. Over-heat / Overload / Short circuit protection, recover automatically. 6. DALI-2 certified, in accordance with DALI standard protocol IEC 62386-101,102,207 and in compliance with DALI products fromother intemational incorporation. |
Send Your Inquiry
