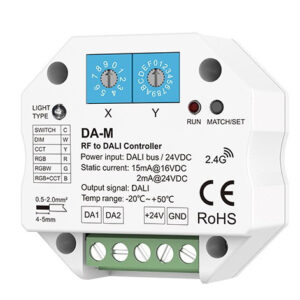

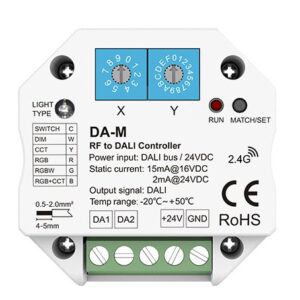

6 in 1 RF to DALI Converter
1. RF DALI master, 6 in 1 function, support single color, color temperature, RGB, RGB, RGB+CCT, or switch light control.
2. Match with RF 2.4G single zone or multiple zone remote control.
3. DALI address, support DT6 dimming, DT8-TC color temperature, DT8-RGB, DT8-RGBW or DT7 switch.
4. In accordance with DALI standard protocol lEC 62386and in compliance with DALI products from other international incorporation.
5. Powered by DALI bus or 24VDC.
6. Enable to select DALI address by encoding switch, support unicast, group and broadcast mode.
7. For RGB/RGBW/RGB+CCT light type, builtin 10 dynamic modes, including jump or gradient.
Highlights
→ 6 in 1 function,Single,3CCT,RGB,RGBW,RGB+CCT,Swith Light
→ DT6,DT8 and DT7
→ Match RF2.4G Remoter
→ Compliance with DALI, DALI2
→ For RGB/RGBW/RGB+CCT , built-in 10 dynamic modes
| Model NO.:Â | DA-M | Brand |
FlexCUBE |
| Input Signal |
RF 2.4GHz | Output Signal | DALI |
| Input Power | DALI Bus/24VDC | ||
| Static Current |
15mA@16VDC, 2mA@24VDC | ||
| Size |
L60mm x W60mm x H40mm | ||
| Remote Control Distance |
 30M (Open and Barrierfree) | ||
| Packaging | White Box or Colorful Box, any OEM can be supported. | ||
| Functions |
1. RF DALI master, 6 in 1 function, support single color, color temperature, RGB, RGB, RGB+CCT, or switch light control. 2. Match with RF 2.4G single zone or multiple zone remote control. 3. DALI address, support DT6 dimming, DT8-TC color temperature, DT8-RGB, DT8-RGBW or DT7 switch. 4. In accordance with DALI standard protocol lEC 62386and in compliance with DALI products from other international incorporation. 5. Powered by DALI bus or 24VDC. 6. Enable to select DALI address by encoding switch, support unicast, group and broadcast mode. 7. For RGB/RGBW/RGB+CCT light type, builtin 10 dynamic modes, including jump or gradient. |
||
Send Your Inquiry
| Model NO.:Â | DA-M | Brand |
FlexCUBE |
| Input Signal |
RF 2.4GHz | Output Signal | DALI |
| Input Power | DALI Bus/24VDC | ||
| Static Current |
15mA@16VDC, 2mA@24VDC | ||
| Size |
L60mm x W60mm x H40mm | ||
| Remote Control Distance |
 30M (Open and Barrierfree) | ||
| Packaging | White Box or Colorful Box, any OEM can be supported. | ||
| Functions |
1. RF DALI master, 6 in 1 function, support single color, color temperature, RGB, RGB, RGB+CCT, or switch light control. 2. Match with RF 2.4G single zone or multiple zone remote control. 3. DALI address, support DT6 dimming, DT8-TC color temperature, DT8-RGB, DT8-RGBW or DT7 switch. 4. In accordance with DALI standard protocol lEC 62386and in compliance with DALI products from other international incorporation. 5. Powered by DALI bus or 24VDC. 6. Enable to select DALI address by encoding switch, support unicast, group and broadcast mode. 7. For RGB/RGBW/RGB+CCT light type, builtin 10 dynamic modes, including jump or gradient. |
||
Send Your Inquiry
