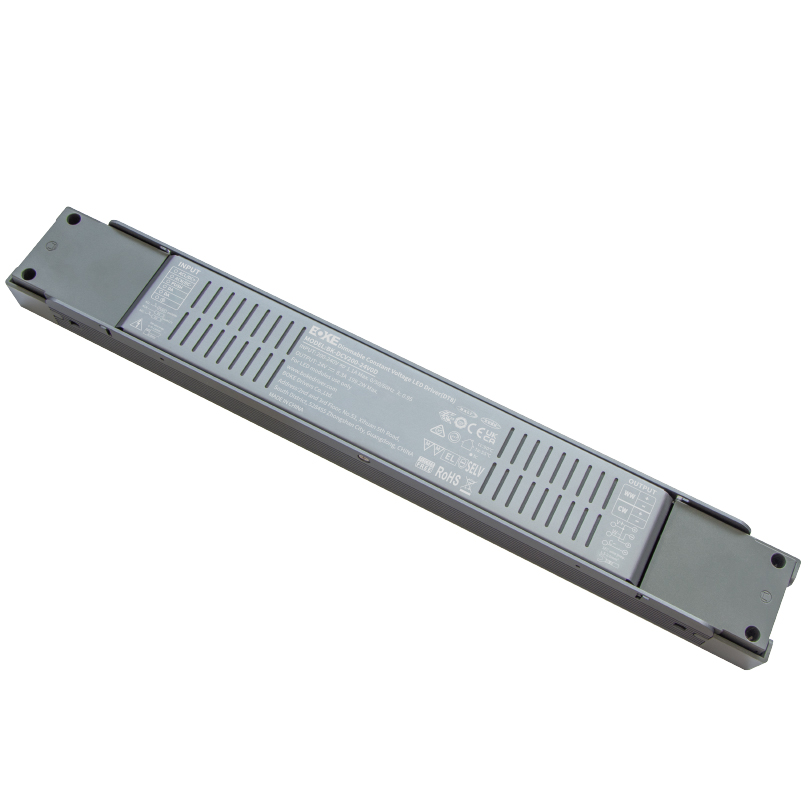

80W 150W 200W DALI 2 DT8 DALI 24V LED Driver
BK-DCV DALI LED Driver, a powerful and efficient lighting solution designed to meet the demands of modern lighting systems. With a power range of 80W to 200W, this constant voltage LED driver operates at 24VDC, providing a stable power supply for your lighting setup. Featuring DALI compatibility, it seamlessly integrates with DALI control systems, offering advanced dimming capabilities from 1% to 100%, allowing you to create the perfect lighting ambiance. Boasting a high power factor of 0.99 and an impressive efficiency of over 90%, this LED driver ensures optimal energy utilization while reducing operational costs. Say goodbye to flickering lights as the BK-DCV guarantees flicker-free performance, providing a comfortable and visually pleasing lighting experience. Whether for commercial or residential applications, the BK-DCV DALI LED Driver delivers reliable, dimmable, and efficient lighting control for a wide range of projects.
Highlights
→ DT8 CCT
→ DALI 2
→ PUSH DIM and PUSH CCT
→ High PF,Flicker Free, Low THD
→ Stable and Long life
→ Suppport 100% Full Loading
| Model | Watts | Out-Voltage | Out-Current | Size(mm) |
| BK-DCV080-24V0D | 80W | 24VDC | 3.4A | L241.5*W48*H30 |
| BK-DCV150-24V0D | 150W | 24VDC | 6.25A | L329*W48*H30 |
| BK-DCV200-24V0D | 200W | 24VDC | 8.3A | L369*W48*H30 |
| Input | 220-240VAC | Brand | BOKE |
| Efficiency | >90% | PF | >0.99 |
| Ta |
55℃ |
Tc |
90℃ |
| Dimming | 1-100% |
Flicker-free |
Pst LM <1,SVM <0.4 |
| Protection type | Class | | IP Rating | IP20 |
|
Output type  |
SELV |
Operation temperature |
-20°C-60°C |
| Warranty | 5 years | Certifications | SAA CE ROHS |
|
Surge |
L-N:2KV,L/N-FG:2KV |
||
|
Operation temperature |
-20°C-60°C |
||
| Features | 1. Support DALI-2/pushDIM+1-10V/10 PWM/Rx dimming+12V auxiliary power 2. Provide 12V 100mA auxiliary power supply to power control module or sensor 3. Soft dimming and flicker-free at any brightness 4. Dimming range 1-100%,support multiple lights dimming 5. Standby power input <0.5W,meets the requirements of ErP certification 6. High PF,high efficiency,low THD 7. SELV and Class I design,suitable for use outside the light 8. Compliance with CE,UKCA,ENEC,RCM,DALI-2 and other certifications |
||
Send Your Inquiry
1. Versatile Compatibility: The BK-DCV LED driver supports DALI-2, pushDIM, and pushCCT control, making it compatible with a wide range of lighting control systems. This versatility allows you to integrate it seamlessly into various projects and offer flexible lighting solutions to your clients.
2. Reliable Performance: With its high power factor (>0.99) and efficiency (>90%), the BK-DCV LED driver ensures optimal energy utilization and reduced operational costs. Its Electric Class I design guarantees safe and reliable operation, providing peace of mind to both you and your clients.
3. Precise Dimming Capabilities: The dimming range of 1-100% and flicker-free performance at any brightness level allow you to create the desired lighting ambiance for different spaces and applications. This level of control enhances customer satisfaction and adds value to your lighting solutions.
4. Long Lifespan: The BK-DCV LED driver boasts a lifespan of 100,000 hours, ensuring durability and longevity. This longevity reduces maintenance and replacement costs for your clients, making it a cost-effective choice for long-term lighting projects.
5. Compliance and Certifications: The BK-DCV LED driver complies with CE, UKCA, DALI-2, and other certifications, ensuring quality and adherence to industry standards. Choosing a certified product gives you confidence in its performance and reliability.
6. Energy Efficiency: With its high efficiency and low total harmonic distortion (THD), the BK-DCV LED driver helps clients reduce their energy consumption and lower their environmental footprint. This aligns with the increasing demand for sustainable and energy-efficient lighting solutions.
7. Professional Reputation: By offering the BK-DCV LED driver in your product portfolio, you demonstrate your commitment to providing high-quality, reliable, and innovative lighting solutions. This enhances your professional reputation and positions you as a trusted partner in the industry.
Q1: What is the input voltage range for the BK-DCV LED driver?
A1: The input voltage range is 220-240VAC with a limited voltage of 180-264VAC.
Q2: What is the power factor of the BK-DCV LED driver?
A2: The power factor is greater than 0.99, ensuring efficient power utilization.
Q3: Can the BK-DCV LED driver be dimmed?
A3: Yes, it can be dimmed from 1% to 100% using DALI-2, pushDIM, or pushCCT control.
Q4: What is the output type of the BK-DCV LED driver?
A4: The output type is SLEV (Safety Extra-Low Voltage).
Q5: Is the BK-DCV LED driver flicker-free?
A5: Yes, it provides flicker-free performance at any brightness level, ensuring visual comfort.
Q6: What is the operating temperature range for the BK-DCV LED driver?
A6: It can operate within a temperature range of -20°C to 60°C.
Q7: Does the BK-DCV LED driver have surge protection?
A7: Yes, it offers surge protection of 2KV for L-N and L/N-FG.
Q8: Can the BK-DCV LED driver be used outdoors?
A8: Yes, it has a SELV (Safety Extra-Low Voltage) and Class I design suitable for outdoor use.
Q9: What certifications does the BK-DCV LED driver comply with?
A9: It complies with CE, UKCA, DALI-2, and other relevant certifications.
Q10: What is the lifespan of the BK-DCV LED driver?
A10: It has a long lifespan of approximately 100,000 hours.
Q11: Can the BK-DCV LED driver be used for both residential and commercial applications?
A11: Yes, it is suitable for both residential and commercial lighting installations.
Q12: Does the BK-DCV LED driver support multiple lights dimming?
A12: Yes, it supports dimming of multiple lights simultaneously.
Q13: Is the BK-DCV LED driver energy-efficient?
A13: Yes, it has high efficiency (>90%) and a low total harmonic distortion (THD), promoting energy savings.
Q14: Can the BK-DCV LED driver be integrated with existing DALI control systems?
A14: Yes, it is compatible with DALI-2 control systems, allowing for seamless integration.
Q15: What is the standby power consumption of the BK-DCV LED driver?
A15: The standby power input is less than 0.5W, meeting ErP certification requirements for low standby power consumption.
DALI LED Driver DT8 24VDC Constant Voltage 80-200W PUSH, Model: BK-DCV, can be used in various lighting applications and installations. Here are some common areas where this LED driver can be employed:
Commercial Spaces: The BK-DCV LED driver is suitable for lighting installations in retail stores, shopping malls, office buildings, hotels, restaurants, and other commercial spaces. Its dimming capabilities and compatibility with DALI control systems allow for precise control over lighting levels, creating the desired ambiance and enhancing the overall customer experience.
Residential Environments: This LED driver can be utilized in residential settings, such as homes, apartments, and condominiums. It enables homeowners to achieve flexible lighting control, adapting the lighting atmosphere to different activities and moods. Whether it’s for accent lighting, task lighting, or general illumination, the BK-DCV LED driver provides reliable and comfortable lighting solutions.
Architectural Lighting: The BK-DCV LED driver is suitable for architectural lighting applications, including highlighting building facades, monuments, bridges, and other structures. Its precise dimming range and flicker-free performance ensure that architectural features are showcased effectively, creating stunning visual effects and enhancing the aesthetics of the surrounding environment.
Hospitality Industry: Hotels, resorts, and hospitality venues can benefit from the BK-DCV LED driver’s capabilities. It allows for dynamic lighting scenes, enabling establishments to create welcoming and inviting atmospheres in lobbies, corridors, restaurants, bars, and guest rooms. The dimming range and compatibility with control systems provide flexibility to adapt the lighting to different occasions and guest preferences.
Art Galleries and Museums: The BK-DCV LED driver’s flicker-free performance and precise dimming make it an ideal choice for lighting artwork and exhibits in galleries and museums. It ensures proper illumination while minimizing the risk of damage to sensitive artifacts. The compatibility with DALI control systems allows for seamless integration with museum lighting control protocols.
Entertainment Venues: The BK-DCV LED driver can be used in theaters, cinemas, concert halls, and other entertainment venues to create immersive lighting experiences. Its dimming capabilities and compatibility with control systems enable lighting designers to enhance performances, create dramatic effects, and set the desired mood for various events.
| Model | Watts | Out-Voltage | Out-Current | Size(mm) |
| BK-DCV080-24V0D | 80W | 24VDC | 3.4A | L241.5*W48*H30 |
| BK-DCV150-24V0D | 150W | 24VDC | 6.25A | L329*W48*H30 |
| BK-DCV200-24V0D | 200W | 24VDC | 8.3A | L369*W48*H30 |
| Input | 220-240VAC | Brand | BOKE |
| Efficiency | >90% | PF | >0.99 |
| Ta |
55℃ |
Tc |
90℃ |
| Dimming | 1-100% |
Flicker-free |
Pst LM <1,SVM <0.4 |
| Protection type | Class | | IP Rating | IP20 |
|
Output type  |
SELV |
Operation temperature |
-20°C-60°C |
| Warranty | 5 years | Certifications | SAA CE ROHS |
|
Surge |
L-N:2KV,L/N-FG:2KV |
||
|
Operation temperature |
-20°C-60°C |
||
| Features | 1. Support DALI-2/pushDIM+1-10V/10 PWM/Rx dimming+12V auxiliary power 2. Provide 12V 100mA auxiliary power supply to power control module or sensor 3. Soft dimming and flicker-free at any brightness 4. Dimming range 1-100%,support multiple lights dimming 5. Standby power input <0.5W,meets the requirements of ErP certification 6. High PF,high efficiency,low THD 7. SELV and Class I design,suitable for use outside the light 8. Compliance with CE,UKCA,ENEC,RCM,DALI-2 and other certifications |
||
Send Your Inquiry
1. Versatile Compatibility: The BK-DCV LED driver supports DALI-2, pushDIM, and pushCCT control, making it compatible with a wide range of lighting control systems. This versatility allows you to integrate it seamlessly into various projects and offer flexible lighting solutions to your clients.
2. Reliable Performance: With its high power factor (>0.99) and efficiency (>90%), the BK-DCV LED driver ensures optimal energy utilization and reduced operational costs. Its Electric Class I design guarantees safe and reliable operation, providing peace of mind to both you and your clients.
3. Precise Dimming Capabilities: The dimming range of 1-100% and flicker-free performance at any brightness level allow you to create the desired lighting ambiance for different spaces and applications. This level of control enhances customer satisfaction and adds value to your lighting solutions.
4. Long Lifespan: The BK-DCV LED driver boasts a lifespan of 100,000 hours, ensuring durability and longevity. This longevity reduces maintenance and replacement costs for your clients, making it a cost-effective choice for long-term lighting projects.
5. Compliance and Certifications: The BK-DCV LED driver complies with CE, UKCA, DALI-2, and other certifications, ensuring quality and adherence to industry standards. Choosing a certified product gives you confidence in its performance and reliability.
6. Energy Efficiency: With its high efficiency and low total harmonic distortion (THD), the BK-DCV LED driver helps clients reduce their energy consumption and lower their environmental footprint. This aligns with the increasing demand for sustainable and energy-efficient lighting solutions.
7. Professional Reputation: By offering the BK-DCV LED driver in your product portfolio, you demonstrate your commitment to providing high-quality, reliable, and innovative lighting solutions. This enhances your professional reputation and positions you as a trusted partner in the industry.
Q1: What is the input voltage range for the BK-DCV LED driver?
A1: The input voltage range is 220-240VAC with a limited voltage of 180-264VAC.
Q2: What is the power factor of the BK-DCV LED driver?
A2: The power factor is greater than 0.99, ensuring efficient power utilization.
Q3: Can the BK-DCV LED driver be dimmed?
A3: Yes, it can be dimmed from 1% to 100% using DALI-2, pushDIM, or pushCCT control.
Q4: What is the output type of the BK-DCV LED driver?
A4: The output type is SLEV (Safety Extra-Low Voltage).
Q5: Is the BK-DCV LED driver flicker-free?
A5: Yes, it provides flicker-free performance at any brightness level, ensuring visual comfort.
Q6: What is the operating temperature range for the BK-DCV LED driver?
A6: It can operate within a temperature range of -20°C to 60°C.
Q7: Does the BK-DCV LED driver have surge protection?
A7: Yes, it offers surge protection of 2KV for L-N and L/N-FG.
Q8: Can the BK-DCV LED driver be used outdoors?
A8: Yes, it has a SELV (Safety Extra-Low Voltage) and Class I design suitable for outdoor use.
Q9: What certifications does the BK-DCV LED driver comply with?
A9: It complies with CE, UKCA, DALI-2, and other relevant certifications.
Q10: What is the lifespan of the BK-DCV LED driver?
A10: It has a long lifespan of approximately 100,000 hours.
Q11: Can the BK-DCV LED driver be used for both residential and commercial applications?
A11: Yes, it is suitable for both residential and commercial lighting installations.
Q12: Does the BK-DCV LED driver support multiple lights dimming?
A12: Yes, it supports dimming of multiple lights simultaneously.
Q13: Is the BK-DCV LED driver energy-efficient?
A13: Yes, it has high efficiency (>90%) and a low total harmonic distortion (THD), promoting energy savings.
Q14: Can the BK-DCV LED driver be integrated with existing DALI control systems?
A14: Yes, it is compatible with DALI-2 control systems, allowing for seamless integration.
Q15: What is the standby power consumption of the BK-DCV LED driver?
A15: The standby power input is less than 0.5W, meeting ErP certification requirements for low standby power consumption.
DALI LED Driver DT8 24VDC Constant Voltage 80-200W PUSH, Model: BK-DCV, can be used in various lighting applications and installations. Here are some common areas where this LED driver can be employed:
Commercial Spaces: The BK-DCV LED driver is suitable for lighting installations in retail stores, shopping malls, office buildings, hotels, restaurants, and other commercial spaces. Its dimming capabilities and compatibility with DALI control systems allow for precise control over lighting levels, creating the desired ambiance and enhancing the overall customer experience.
Residential Environments: This LED driver can be utilized in residential settings, such as homes, apartments, and condominiums. It enables homeowners to achieve flexible lighting control, adapting the lighting atmosphere to different activities and moods. Whether it’s for accent lighting, task lighting, or general illumination, the BK-DCV LED driver provides reliable and comfortable lighting solutions.
Architectural Lighting: The BK-DCV LED driver is suitable for architectural lighting applications, including highlighting building facades, monuments, bridges, and other structures. Its precise dimming range and flicker-free performance ensure that architectural features are showcased effectively, creating stunning visual effects and enhancing the aesthetics of the surrounding environment.
Hospitality Industry: Hotels, resorts, and hospitality venues can benefit from the BK-DCV LED driver’s capabilities. It allows for dynamic lighting scenes, enabling establishments to create welcoming and inviting atmospheres in lobbies, corridors, restaurants, bars, and guest rooms. The dimming range and compatibility with control systems provide flexibility to adapt the lighting to different occasions and guest preferences.
Art Galleries and Museums: The BK-DCV LED driver’s flicker-free performance and precise dimming make it an ideal choice for lighting artwork and exhibits in galleries and museums. It ensures proper illumination while minimizing the risk of damage to sensitive artifacts. The compatibility with DALI control systems allows for seamless integration with museum lighting control protocols.
Entertainment Venues: The BK-DCV LED driver can be used in theaters, cinemas, concert halls, and other entertainment venues to create immersive lighting experiences. Its dimming capabilities and compatibility with control systems enable lighting designers to enhance performances, create dramatic effects, and set the desired mood for various events.
