DALI Wall Light IP65 Up and Down Lighting Exterior 40W

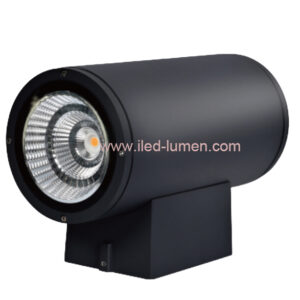

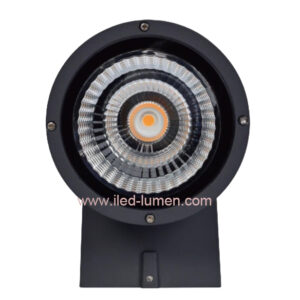

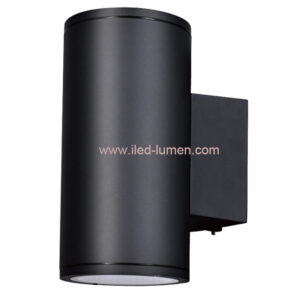

DALI Wall Light IP65 Up and Down Lighting Exterior 40W LED (Model: BH-055 D DALI) is a high-performance outdoor fixture. Featuring DALI2 compatibility, it delivers 110LM/W efficiency with CREE COB LEDs (CRI>90) for vivid illumination. Its up-and-down design, with DarkSky-compliant down lighting, reduces light pollution while enhancing aesthetics. With an IP65 rating and optional emergency feature, it ensures durability and safety. Available in 2x15W or 2x20W (up to 40W total), it operates on 220-240VAC/120VAC with a flicker-free Eaglerise or Osram driver (PF>0.9). Made of aluminum and tempered glass, it offers beam angles (15°/24°/36°/60°), color temperatures (2700K/3KK/4KK/5KK), and finishes (black, gray, white). Sized at D150xH300mm, it’s perfect for stylish, eco-friendly exteriors.

Highlights

→ DALI2
→ High Lumen 110LM/W
→ CREE COB, CRI>90
→ Up and Down Light
→ IP65
→ Emergency for Option

Item NO. BH-055 D DALI  Up and Down Lighting LED
Input 220-240VAC/120VAC LED Source CREE COB LEDs
Watts 2*15W / 2*20W Electrical Classification Class I
Materials Aluminum+Tempered glass CRI >90
Color Temperature 2700K/3KK/4KK/5KK IP Rating IP65
Beam Angel 15°/24°/36°/60° Body Color Black , Gray or White
Size D150xH300mm Certifications SAA CE ROHS

Send Your Inquiry

DALI Wall Light IP65 Up and Down Lighting Exterior 40W LED, model BH-055 D DALI, is a sophisticated outdoor lighting solution designed to combine cutting-edge technology, environmental mindfulness, and striking design. This wall-mounted fixture is tailored for those who value both performance and aesthetics in exterior lighting. With DALI2 compatibility, it integrates seamlessly into smart lighting systems, offering precise dimming and energy management capabilities. This makes it an ideal choice for modern applications where control and efficiency are essential, whether for residential, commercial, or public spaces. Powered by premium CREE COB LEDs, the BH-055 D DALI achieves an outstanding luminous efficacy of 110 lumens per watt, delivering bright, energy-efficient light. Its Color Rendering Index (CRI) exceeds 90, ensuring colors appear vibrant and true-to-life, which is perfect for highlighting architectural features or outdoor decor. Available in two power options—2x15W (30W total) or 2x20W (40W total)—it provides flexibility for different lighting intensities, supported by an input voltage of 220-240VAC or 120VAC. The built-in driver, sourced from Eaglerise or Osram, is flicker-free with a power factor (PF) above 0.9, ensuring stable, reliable operation. An optional emergency feature adds versatility, providing backup lighting during power outages, which is critical for safety-focused installations. A defining characteristic of this product is its up-and-down lighting design, projecting illumination both upward and downward for a dramatic, dual-directional effect. The downward light adheres to DarkSky principles, minimizing light pollution and glare, making it an environmentally responsible choice for urban or nature-sensitive areas. The IP65 rating further enhances its suitability for outdoor use, offering complete protection against dust and water jets, ensuring durability in challenging conditions like rain, snow, or high humidity. This robust construction makes it a dependable option for long-term exterior applications. Crafted from high-quality aluminum and tempered glass, the DALI Wall Light is both resilient and stylish. Measuring D150xH300mm, its taller profile adds a bold yet elegant touch to any exterior. Customization options abound: beam angles (15°, 24°, 36°, or 60°) allow users to adjust light spread, while color temperatures (2700K, 3000K, 4000K, or 5000K) cater to diverse ambiance needs—from warm and inviting to crisp and modern. Available in black, gray, or white finishes, it blends effortlessly with various architectural styles. This fixture excels in delivering both form and function. Its smart technology, high efficiency, and eco-conscious design make it a standout for exterior lighting projects. The optional emergency feature broadens its utility, ensuring reliability in critical scenarios like power failures. Whether illuminating a building facade, enhancing a garden wall, or providing safety along pathways, the BH-055 D DALI offers exceptional performance and versatility. Its blend of durability, customization, and aesthetic appeal positions it as a top-tier choice for those seeking a premium outdoor lighting solution that balances practicality with environmental consideration.

1. Advanced smart control: DALI2 compatibility enables dimming and energy optimization, perfect for smart exterior lighting systems.
2. Superior light quality: With 110LM/W and CRI>90 CREE LEDs, it provides bright, accurate illumination for stunning effects.
3. Eco-friendly and stylish: Up-and-down lighting with DarkSky compliance reduces pollution while enhancing aesthetics.
4. Rugged outdoor durability: IP65 rating ensures resistance to weather extremes, ideal for long-term exterior use.
5. Safety with emergency option: Optional emergency feature offers backup lighting, ensuring reliability during outages.

Q: What does up-and-down lighting mean?
A: It projects light upward and downward, creating a dual effect while the downlight meets DarkSky standards.
Q: Is the emergency feature included?
A: No, it’s optional; you need to request it when ordering the BH-055 D DALI.
Q: Can it handle heavy rain?
A: Yes, the IP65 rating protects against water and dust, making it suitable for wet conditions.
Q: What’s the difference between 2x15W and 2x20W?
A: 2x15W totals 30W, while 2x20W provides 40W for brighter, more intense illumination.
Q: Is it dimmable without DALI?
A: No, dimming requires a DALI2-compatible system to function effectively.

1. Residential exteriors: Enhances home facades or patios with stylish, eco-friendly up-and-down lighting.
2. Commercial properties: Illuminates building entrances or walls, offering safety and sophistication with emergency backup.
3. Garden landscapes: Highlights outdoor features or pathways, blending aesthetics with DarkSky compliance.
4. Public spaces: Lights up urban walkways or plazas, reducing light pollution while ensuring visibility.
5. Safety-critical areas: Provides reliable illumination for exits or stairwells with the emergency option.
6. Architectural projects: Suits modern designs with its sleek look and flexible beam angles for accentuating structures.

Specifications
Item NO. BH-055 D DALI  Up and Down Lighting LED
Input 220-240VAC/120VAC LED Source CREE COB LEDs
Watts 2*15W / 2*20W Electrical Classification Class I
Materials Aluminum+Tempered glass CRI >90
Color Temperature 2700K/3KK/4KK/5KK IP Rating IP65
Beam Angel 15°/24°/36°/60° Body Color Black , Gray or White
Size D150xH300mm Certifications SAA CE ROHS

Send Your Inquiry

Description
DALI Wall Light IP65 Up and Down Lighting Exterior 40W LED, model BH-055 D DALI, is a sophisticated outdoor lighting solution designed to combine cutting-edge technology, environmental mindfulness, and striking design. This wall-mounted fixture is tailored for those who value both performance and aesthetics in exterior lighting. With DALI2 compatibility, it integrates seamlessly into smart lighting systems, offering precise dimming and energy management capabilities. This makes it an ideal choice for modern applications where control and efficiency are essential, whether for residential, commercial, or public spaces. Powered by premium CREE COB LEDs, the BH-055 D DALI achieves an outstanding luminous efficacy of 110 lumens per watt, delivering bright, energy-efficient light. Its Color Rendering Index (CRI) exceeds 90, ensuring colors appear vibrant and true-to-life, which is perfect for highlighting architectural features or outdoor decor. Available in two power options—2x15W (30W total) or 2x20W (40W total)—it provides flexibility for different lighting intensities, supported by an input voltage of 220-240VAC or 120VAC. The built-in driver, sourced from Eaglerise or Osram, is flicker-free with a power factor (PF) above 0.9, ensuring stable, reliable operation. An optional emergency feature adds versatility, providing backup lighting during power outages, which is critical for safety-focused installations. A defining characteristic of this product is its up-and-down lighting design, projecting illumination both upward and downward for a dramatic, dual-directional effect. The downward light adheres to DarkSky principles, minimizing light pollution and glare, making it an environmentally responsible choice for urban or nature-sensitive areas. The IP65 rating further enhances its suitability for outdoor use, offering complete protection against dust and water jets, ensuring durability in challenging conditions like rain, snow, or high humidity. This robust construction makes it a dependable option for long-term exterior applications. Crafted from high-quality aluminum and tempered glass, the DALI Wall Light is both resilient and stylish. Measuring D150xH300mm, its taller profile adds a bold yet elegant touch to any exterior. Customization options abound: beam angles (15°, 24°, 36°, or 60°) allow users to adjust light spread, while color temperatures (2700K, 3000K, 4000K, or 5000K) cater to diverse ambiance needs—from warm and inviting to crisp and modern. Available in black, gray, or white finishes, it blends effortlessly with various architectural styles. This fixture excels in delivering both form and function. Its smart technology, high efficiency, and eco-conscious design make it a standout for exterior lighting projects. The optional emergency feature broadens its utility, ensuring reliability in critical scenarios like power failures. Whether illuminating a building facade, enhancing a garden wall, or providing safety along pathways, the BH-055 D DALI offers exceptional performance and versatility. Its blend of durability, customization, and aesthetic appeal positions it as a top-tier choice for those seeking a premium outdoor lighting solution that balances practicality with environmental consideration.
Why choose us?

1. Advanced smart control: DALI2 compatibility enables dimming and energy optimization, perfect for smart exterior lighting systems.
2. Superior light quality: With 110LM/W and CRI>90 CREE LEDs, it provides bright, accurate illumination for stunning effects.
3. Eco-friendly and stylish: Up-and-down lighting with DarkSky compliance reduces pollution while enhancing aesthetics.
4. Rugged outdoor durability: IP65 rating ensures resistance to weather extremes, ideal for long-term exterior use.
5. Safety with emergency option: Optional emergency feature offers backup lighting, ensuring reliability during outages.

Frequently Asked Questions

Q: What does up-and-down lighting mean?
A: It projects light upward and downward, creating a dual effect while the downlight meets DarkSky standards.
Q: Is the emergency feature included?
A: No, it’s optional; you need to request it when ordering the BH-055 D DALI.
Q: Can it handle heavy rain?
A: Yes, the IP65 rating protects against water and dust, making it suitable for wet conditions.
Q: What’s the difference between 2x15W and 2x20W?
A: 2x15W totals 30W, while 2x20W provides 40W for brighter, more intense illumination.
Q: Is it dimmable without DALI?
A: No, dimming requires a DALI2-compatible system to function effectively.

Applications

1. Residential exteriors: Enhances home facades or patios with stylish, eco-friendly up-and-down lighting.
2. Commercial properties: Illuminates building entrances or walls, offering safety and sophistication with emergency backup.
3. Garden landscapes: Highlights outdoor features or pathways, blending aesthetics with DarkSky compliance.
4. Public spaces: Lights up urban walkways or plazas, reducing light pollution while ensuring visibility.
5. Safety-critical areas: Provides reliable illumination for exits or stairwells with the emergency option.
6. Architectural projects: Suits modern designs with its sleek look and flexible beam angles for accentuating structures.
