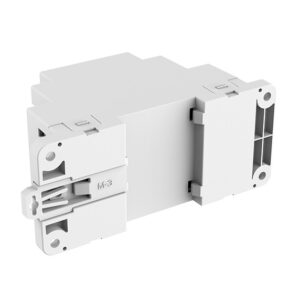

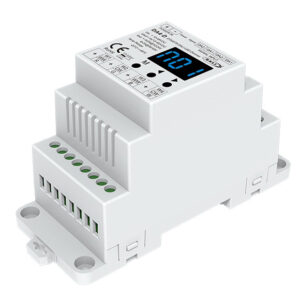

Din Rail 4 Channel 5A DT6 DT8 CV DALI LED Dimmer
1. 4 channel constant voltage DALI LED Dimmer with digital display, 5A per channel.
2. DT6 dimming or DT8-TC color temperature or DT8-RGB or DT8-RGBW light type selectable.
3. For DT6 dimming, support 1-4 DALI address, 4 channel work separately.
4. DALI address can be manually assigned and shown in digital displayor automatically assigned by DALI master.
5. Connect with external AC push switch to achieve on/off, brightness,color temperature and RGB color adjustment.
6. PWM digital dimming, standard DAll logarithmic dimming curve.
7. PWM frequency 1000/2000/4000/8000/16000Hz selectable.
8. Over-heat / Over-load / Short circuit protection, recover automatically.
9. With fast selftesting function.

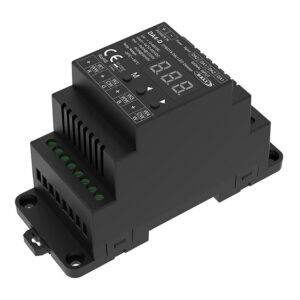

10. White & Black available.
Highlights
→ 4 Channels CV DALI Dimmer
→ 1 DALI Address,DT6,DT8-CT,DT8-RGB and DT8-RGBW
→ 4 DALI Addresses for DT6 Available
→ PMW Digital Dimming
→ Compliance with DALI, DALI2
→ Best Auto Protection
→ Din Rail Mounted
| Model NO.:Â | DA4-D | Brand |
FlexCUBE |
| Input Voltage | 12-48VDC | Output Voltage | 12-48VDC |
| Input Current | Max 20.5A | ||
| Output Current | 4x5A @12V/24VDC, 4x3A @ 36V/48VDC | ||
| Output Power | 4x60W@12V,4x120W@24V,4x108W@36V,4x144W@48V | ||
| Output Type | Constant Voltage | ||
| Input Signal | DALI | ||
| Dimming Range |
0-100% | ||
| Dimming Curve |
Logarithmic | ||
| PWM Frequency |
1KHZ/2KHZ/4KHZ/8KHZ/16KHZ | ||
| Size |
L120mm x W78mm x H55mm | ||
| Packaging | White Box or Colorful Box, any OEM can be supported. | ||
| Functions |
1. 4 channel constant voltage DALI LED Dimmer with digital display, 5A per channel. 2. DT6 dimming or DT8-TC color temperature or DT8-RGB or DT8-RGBW light type selectable. 3. For DT6 dimming, support 1-4 DALI address, 4 channel work separately. 4. DALI address can be manually assigned and shown in digital displayor automatically assigned by DALI master. 5. Connect with external AC push switch to achieve on/off, brightness,color temperature and RGB color adjustment. 6. PWM digital dimming, standard DAll logarithmic dimming curve. 7. PWM frequency 1000/2000/4000/8000/16000Hz selectable. 8. Over-heat / Over-load / Short circuit protection, recover automatically. 9. With fast selftesting function. 10. White & Black available. 11. In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 IEC 62386-209 and in compliance with DALI productsfrom other international incorporation. |
||
