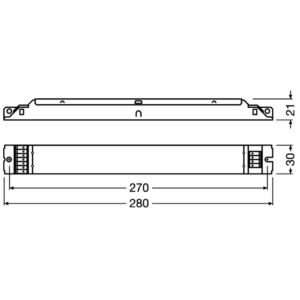

IT DALI 40 220-240 450 D LT2 L 40W Osram DALI Driver

Model: IT DALI 40/220-240/450 D LT2 L Categories , Tags , , ,

DALI-2 certified – Fully programmable via software (DALI Interface) – Flexible current setting (RSet) Lifetime: up to 100,000 h (temperature at T c – = 65 °C, max. 10 % failure rate) – High-quality dimming of 3…100 % by amplitude dimming – Wide operating range – High quality of light thanks to <4% output ripple current – High efficiency – Low network standby consumption ≤ 0.25 W – Fulfill safety requirement due to overload, overtemperature, Hot Plug protection – Non-isolated driver – 3- and 4-channel DMX dimmer for RGB and RGBW LED module

Highlights

→ DALI-2 certified
→ PUSH Touch DIM
→ High PF,Flicker Free, Low THD
→ Flexible Ouput Selectable
→ Slim Size for Batten Lights

SKU IT DALI 40/220-240/450 D LT2 L Category: , Tags: , , ,
Model NO.
IT DALI 40/220-240/450 D LT2 L Brand Osram
Input 220-240VAC Frequency 50/60Hz
Efficiency 92% PF >0.98
Output Voltage
54-240VDC Output Current
100-450mA
Max. O-Voltage
240VDC Output Power
Max. 40W
Ta

50℃

Tc

80℃

Dimming 3-100%

THD

<12%@230VAC

Protection type Class I Low ripple
< 5 %

Output type



SELV

Non-Isolated

Operation temperature

-20°C-50°C

Warranty 5 years Certifications SAA CE ROHS

Surge

L-N:1KV

Features DALI-2 certified – Fully programmable via software (DALI Interface) – Flexible current setting (RSet) Lifetime: up to 100,000 h (temperature at T c – = 65 °C, max. 10 % failure rate) – High-quality dimming of 3…100 % by amplitude dimming – Wide operating range – High quality of light thanks to <4% output ripple current – High efficiency – Low network standby consumption ≤ 0.25 W – Fulfill safety requirement due to overload, overtemperature, Hot Plug protection – Non-isolated driver – 3- and 4-channel DMX dimmer for RGB and RGBW LED module

Send Your Inquiry

Specifications
Model NO.
IT DALI 40/220-240/450 D LT2 L Brand Osram
Input 220-240VAC Frequency 50/60Hz
Efficiency 92% PF >0.98
Output Voltage
54-240VDC Output Current
100-450mA
Max. O-Voltage
240VDC Output Power
Max. 40W
Ta

50℃

Tc

80℃

Dimming 3-100%

THD

<12%@230VAC

Protection type Class I Low ripple
< 5 %

Output type



SELV

Non-Isolated

Operation temperature

-20°C-50°C

Warranty 5 years Certifications SAA CE ROHS

Surge

L-N:1KV

Features DALI-2 certified – Fully programmable via software (DALI Interface) – Flexible current setting (RSet) Lifetime: up to 100,000 h (temperature at T c – = 65 °C, max. 10 % failure rate) – High-quality dimming of 3…100 % by amplitude dimming – Wide operating range – High quality of light thanks to <4% output ripple current – High efficiency – Low network standby consumption ≤ 0.25 W – Fulfill safety requirement due to overload, overtemperature, Hot Plug protection – Non-isolated driver – 3- and 4-channel DMX dimmer for RGB and RGBW LED module
