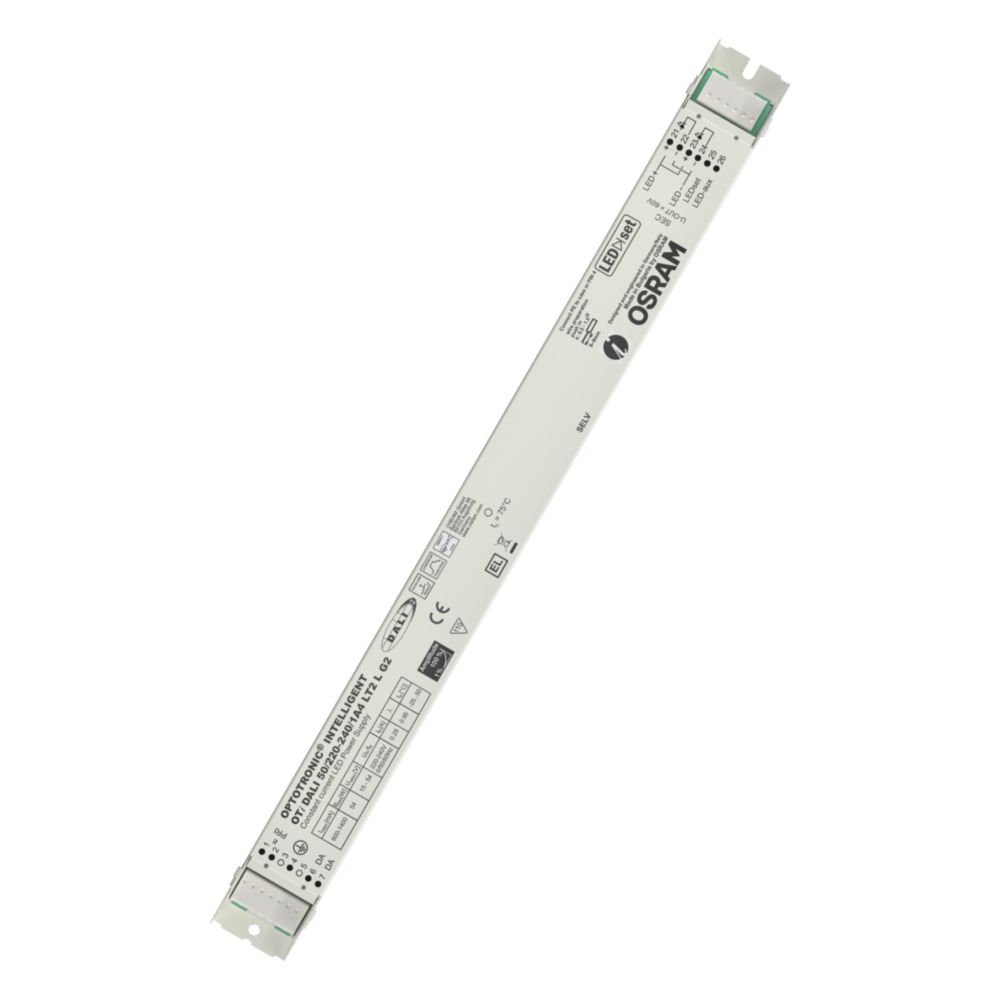

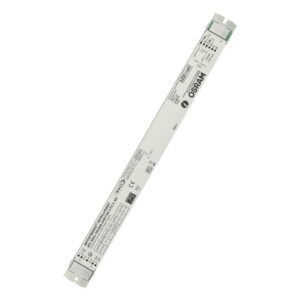

OTi DALI 50 220-240 1A4 LT2 L 50W Osram DALI Driver
Easy to use in corridors and restrooms because of three-level Corridor function
Touch DIM application: easy to control via pushbutton or sensor
Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
Feedback of power consumption and operating hours (Fit for SMART GRID)
Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
Luminaire information for easy maintenance
Highlights
→ DALI-2 certified
→ PUSH Touch DIM
→ High PF,Flicker Free, Low THD
→ Flexible Current Setting
→ Fully programmable via software
→ Feedback of power consumption and operating hours
Model NO. |
OTi DALI 50/220-240/1A4 LT2 L G2 | Brand | Osram |
Input | 220-240VAC | Frequency | 50/60Hz |
Efficiency | 88% | PF | >0.98 |
Output Voltage |
15-54VDC | Output Current |
600-1400mA |
Max. O-Voltage |
60VDC | Output Power |
Max. 50W |
Ta |
50℃ |
Tc |
75℃ |
Dimming | 1-100% |
THD |
<10%@230VAC |
Protection type | Class I | Low ripple |
< 5 % |
Output type  |
SELV |
Operation temperature |
-20°C-50°C |
Warranty | 5 years | Certifications | SAA CE ROHS |
Surge |
L-N:1KV |
||
Features | Easy to use in corridors and restrooms because of three-level Corridor function Touch DIM application: easy to control via pushbutton or sensor Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable Feedback of power consumption and operating hours (Fit for SMART GRID) Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting Luminaire information for easy maintenance |
