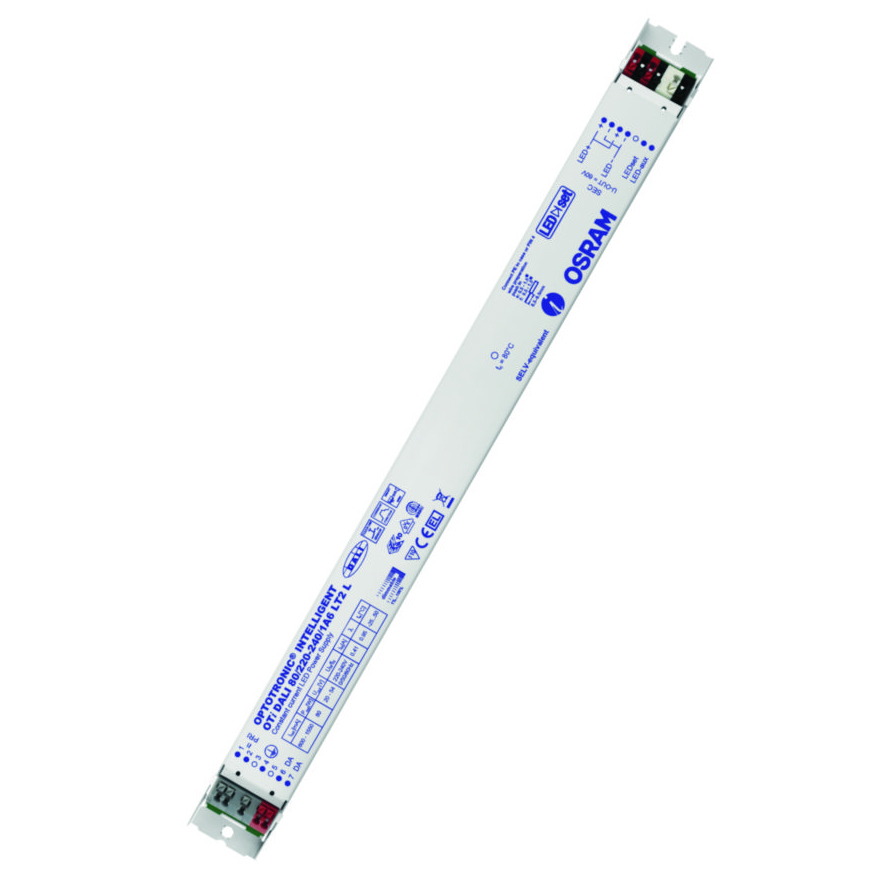

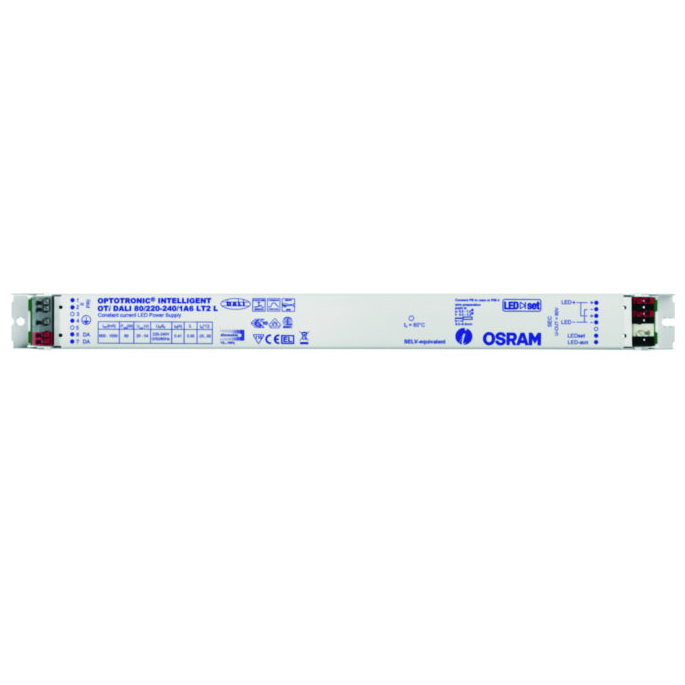

OTi DALI 80 220-240 1A6 LT2 L 80W Osram DALI Driver

Model: OTi DALI 80/220-240/1A6 LT2 L Categories , Tags , , ,

Easy to use in corridors and restrooms because of three-level Corridor function
Touch DIM application: easy to control via pushbutton or sensor
Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
Feedback of power consumption and operating hours (Fit for SMART GRID)
Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
Luminaire information for easy maintenance

Highlights

→ DALI-2 certified
→ PUSH Touch DIM
→ High PF,Flicker Free, Low THD
→ Flexible Current Setting
→ Fully programmable via software
→ Feedback of power consumption and operating hours

SKU OTi DALI 80/220-240/1A6 LT2 L Category: , Tags: , , ,
Model NO.
OTi DALI 80/220-240/1A6 LT2 L Brand Osram
Input 220-240VAC Frequency 50/60Hz
Efficiency 90% PF >0.98
Output Voltage
20-54VDC Output Current
600-1550mA
Max. O-Voltage
60VDC Output Power
Max. 80W
Ta

50℃

Tc

75℃

Dimming 1-100%

THD

<10%@230VAC

Protection type Class I Low ripple
< 5 %

Output type



SELV

Operation temperature

-20°C-50°C

Warranty 5 years Certifications SAA CE ROHS

Surge

L-N:1KV

Features Easy to use in corridors and restrooms because of three-level Corridor function
Touch DIM application: easy to control via pushbutton or sensor
Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
Feedback of power consumption and operating hours (Fit for SMART GRID)
Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
Luminaire information for easy maintenance

Send Your Inquiry

Specifications
Model NO.
OTi DALI 80/220-240/1A6 LT2 L Brand Osram
Input 220-240VAC Frequency 50/60Hz
Efficiency 90% PF >0.98
Output Voltage
20-54VDC Output Current
600-1550mA
Max. O-Voltage
60VDC Output Power
Max. 80W
Ta

50℃

Tc

75℃

Dimming 1-100%

THD

<10%@230VAC

Protection type Class I Low ripple
< 5 %

Output type



SELV

Operation temperature

-20°C-50°C

Warranty 5 years Certifications SAA CE ROHS

Surge

L-N:1KV

Features Easy to use in corridors and restrooms because of three-level Corridor function
Touch DIM application: easy to control via pushbutton or sensor
Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
Feedback of power consumption and operating hours (Fit for SMART GRID)
Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
Luminaire information for easy maintenance
