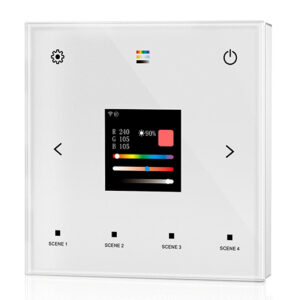

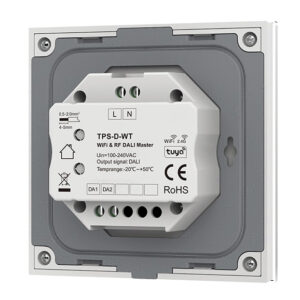

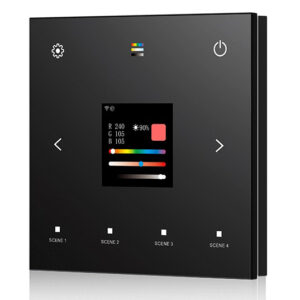

Wall Mounted RF Wifi DALI Touch Panel
1. WiFi & RF DALI master, 5 in 1 function, support single color, color temperature,RGB, RGBW, RGB+CCT light control.
2. Tuya APP cloud control, support on/off, color temperature and brightness adjustment.delay on/off light, scene function and dynamic mode.
3. Adopts TFT 1.54-inch LCD color screen display, 240×240 resolution, 9 touch buttons, easy and intuitive setup and operation.
4. Compatible with 5 light types, support DT6 dimming, DT8-TC color temperature,DT8-RGB, DT8-RGBWV, DT8-RGB+CCT.
5. Enable to select DALI address, support unicast, group and broadcast mode.
6. Precise adjustment of color, color temperature and brightness via the displayand the left and right buttons.
Highlights
→ RF or WIFI DALI Master Controller
→ Compliance with DALI, DALI2
→ DT6,DT8-CT,DT8-RGB,DT8-RGBW,DT8-RGB+CCT
→ Precise adjustment color
→ Ultra Sensitive Glass Panel
Model NO.:Â | TPS-D-WT | Brand |
FlexCUBE |
Dimming Level |
255 Levels | Dimming Range |
0-100% |
Support Color |
Single Color,CCT,RGB,RGBW/RGB+CCT | Zones |
1 Zone |
Power Supply |
100-240VAC | Output Signal |
DALI |
Static Current |
17mA @ 16VDC , 2mA @ 24VDC | ||
Input Singal |
Touch Key + RF 2.4GHz | ||
Control Distance |
30 meters(Barrier -free Space) | ||
Size |
L112mm x W112mm x H50mm | ||
Installation |
Wall Mounted | ||
Packaging | Colorful Box or Skin Packing, any OEM can be supported. | ||
Functions |
1. WiFi & RF DALI master, 5 in 1 function, support single color, color temperature,RGB, RGBW, RGB+CCT light control. 2. Tuya APP cloud control, support on/off, color temperature and brightness adjustment.delay on/off light, scene function and dynamic mode. 3. Adopts TFT 1.54-inch LCD color screen display, 240×240 resolution, 9 touch buttons, easy and intuitive setup and operation. 4. Compatible with 5 light types, support DT6 dimming, DT8-TC color temperature,DT8-RGB, DT8-RGBWV, DT8-RGB+CCT. 5. Enable to select DALI address, support unicast, group and broadcast mode. 6. Precise adjustment of color, color temperature and brightness via the displayand the left and right buttons. 7. 4 scene buttons for quick recall scenes. 8. Optional RF 2.4G remote control available. 9. Tempered glass touch panel, available in white or black. 10. In accordance with DALI standard protocol lEC 62386-101,102,207,208,209and in compliance with DALI products from other international incorporation. |
Send Your Inquiry
Model NO.:Â | TPS-D-WT | Brand |
FlexCUBE |
Dimming Level |
255 Levels | Dimming Range |
0-100% |
Support Color |
Single Color,CCT,RGB,RGBW/RGB+CCT | Zones |
1 Zone |
Power Supply |
100-240VAC | Output Signal |
DALI |
Static Current |
17mA @ 16VDC , 2mA @ 24VDC | ||
Input Singal |
Touch Key + RF 2.4GHz | ||
Control Distance |
30 meters(Barrier -free Space) | ||
Size |
L112mm x W112mm x H50mm | ||
Installation |
Wall Mounted | ||
Packaging | Colorful Box or Skin Packing, any OEM can be supported. | ||
Functions |
1. WiFi & RF DALI master, 5 in 1 function, support single color, color temperature,RGB, RGBW, RGB+CCT light control. 2. Tuya APP cloud control, support on/off, color temperature and brightness adjustment.delay on/off light, scene function and dynamic mode. 3. Adopts TFT 1.54-inch LCD color screen display, 240×240 resolution, 9 touch buttons, easy and intuitive setup and operation. 4. Compatible with 5 light types, support DT6 dimming, DT8-TC color temperature,DT8-RGB, DT8-RGBWV, DT8-RGB+CCT. 5. Enable to select DALI address, support unicast, group and broadcast mode. 6. Precise adjustment of color, color temperature and brightness via the displayand the left and right buttons. 7. 4 scene buttons for quick recall scenes. 8. Optional RF 2.4G remote control available. 9. Tempered glass touch panel, available in white or black. 10. In accordance with DALI standard protocol lEC 62386-101,102,207,208,209and in compliance with DALI products from other international incorporation. |
