DALI Bulkhead Light Round IP65 Waterproof Halo 300mm

DALI Bulkhead Light Round IP65 Waterproof Halo 300mm is a high-performance lighting solution designed for versatility and durability. With a robust DieCast Aluminum body and PC Diffuser, it ensures long-lasting performance in various environments. The unique Halo Side Lighting Effect provides effective and visually appealing illumination. Featuring LumiLEDs LED technology, it delivers an impressive lumen efficacy of 110LM/W with a CRI of over 82, ensuring accurate color rendering. Notably, it is designed to eliminate blue light hazards and offers flicker-free operation for enhanced visual comfort. The light comes with a branded DALI driver from top manufacturers such as BOKE, Tridonic, Osram, VS, or TCI, ensuring reliable performance. Optional features include emergency kits and motion sensors, allowing for additional functionality and safety.

Highlights

→ DALI2

→ High Lumen 110LM/W

→ Robust Cast Aluminum Body

→ Anti-UV Diffuser

→ Professional Powder Coated

→ Anti Salty,IP65,IK10

→ Uniform Soft Lighting

Input 220V~240VAC or 110-277VAC LED Source LumiLEDs LEDs,SDCM 3
Watts 20-30W Lumen Effective
110LM/W
Size φ300x90mm DALI Type
DALI2 DT6, DT8 for option
Materials Dia Dast Aluminum+ PC PF >0.9
CCT 2800-7000K CRI >82
Electrical Classification  Class I IP Class  IP65, IK10
Beam angle 120° Body Color White, Black or Gray Painted
Warranty 3-5 years Certification CE&RoHS&SAA,TUV

Send Your Inquiry

DALI Bulkhead Light Round IP65 Waterproof Halo 300mm (Model: ILED-BH-R DALI) is a versatile and reliable lighting solution suitable for various applications. It offers a range of features designed to meet different lighting needs. With its 3CCT switchable option, users can choose from different color temperatures. The input voltage compatibility of 220-240VAC/110-277VAC and selectable wattage of 20W/30W provide flexibility in installation. Constructed with a Die Cast Aluminum body and PC Diffuser, this light ensures durability and longevity. The LumiLEDs CRI 82 LEDs with SDCM 3 guarantee accurate color rendering. The built-in DALI driver from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic ensures reliable performance. It has a power factor greater than 0.9 and is flicker-free, ensuring efficient and comfortable lighting. The DALI Bulkhead Light offers a lumen efficacy of up to 110LM/W, providing soft and even lighting with a wide beam angle of 120°. It is designed to resist yellowing and UV damage, maintaining its quality over time. The light can be surface mounted or pendant installed, offering flexibility in placement. With an IK10 rating, it is highly resistant to impact, while its IP65 waterproof feature makes it suitable for outdoor and wet environments. The light has a long lifespan of 50,000 hours, reducing maintenance needs. It can also be integrated with emergency kits and motion sensors for added functionality. The base comes in three powder-coated finishes: Black, Silver Gray, or White, allowing for seamless integration into various settings. With its reliable performance and easy installation, the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm is an ideal choice for walkways, tunnels, storage areas, car parks, and other applications requiring efficient mains and emergency lighting.

1. Versatility: With its 3CCT switchable option, you can customize the color temperature according to your project requirements, ensuring the desired ambiance and lighting effect.

2. Reliability and Flexibility: This bulkhead light operates on a wide input range, making it suitable for different voltage systems. The selectable wattage options allow you to adjust the power consumption based on specific needs.

3. High-Quality Lighting: The LumiLEDs CRI 82 LEDs ensure excellent color rendering, enhancing the visual appeal of your spaces. The soft and even lighting distribution creates a comfortable and inviting atmosphere.

4. Durability and Adaptability: Constructed with a robust Die Cast Aluminum body and a PC Diffuser, this light fixture is designed to withstand harsh conditions. Its IP65 waterproof rating ensures reliable performance in outdoor environments.

5. Energy Efficiency: With a lumen efficacy of up to 110LM/W and a power factor greater than 0.9, this bulkhead light offers energy savings while providing ample illumination, contributing to lower energy costs.

6. Safety and Convenience: The built-in DALI driver from reputable brands ensures stable and flicker-free operation, promoting visual comfort. The compatibility with emergency kits and motion sensors adds an extra layer of safety and convenience to your projects.

7. Long Lifespan: With a lifespan of 50,000 hours, this ceiling light minimizes maintenance requirements and offers long-term reliability, reducing the need for frequent replacements.

8. Aesthetics: The powder-coated finishes in black, silver gray, or white provide options to seamlessly integrate the bulkhead light into your project’s design aesthetic.

Q1: What is the size of the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm?
A1: The size of the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm is φ300x90mm.

Q2: Does this light fixture have a built-in driver?
A2: Yes, the DALI bulkhead Light Square IP65 Waterproof Halo 300mm comes with a built-in quality brand DALI driver from BOKE, VS, TCI, Osram, or Tridonic.

Q3: Can I adjust the wattage of this bulkhead light?
A3: Yes, you can select the wattage option for the DALI Bulkhead Light round IP65 Waterproof Halo 300mm between 20W and 30W.

Q4: Is the color temperature adjustable?
A4: Yes, this Bulkhead light offers a 3CCT switchable option, allowing you to adjust the color temperature according to your preferences.

Q5: What is the lumen efficacy of this light fixture?
A5: The DALI Bulkhead Light Square IP65 Waterproof Halo 300mm provides a lumen efficacy of up to 110LM/W, ensuring efficient and effective illumination.

Q6: Does this light emit flickering?
A6: No, the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm is designed to be flicker-free, providing a comfortable and visually stable lighting experience.

Q7: Is the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm suitable for outdoor use?
A7: Yes, this light fixture has an IP65 waterproof rating, making it ideal for outdoor applications where protection against dust and water is required.

Q8: What is the lifespan of this ceiling light?
A8: The DALI Bulkhead Light Round IP65 Waterproof Halo 300mm has a long lifespan of 50,000 hours, ensuring durability and minimal maintenance requirements.

Q9: Can this light be installed on the surface or as a pendant?
A9: Yes, the DALI Bulkhead Light Square IP65 Waterproof Halo 300mm offers installation options for both surface mounting and pendant installation.

Q10: Does this bulkhead light have UV protection?
A10: Yes, the DALI Bulkhead Light Square IP65 Waterproof Halo 300mm is designed with anti-UV properties, preventing yellowing and maintaining its performance over time.

Q11: Is this light compatible with emergency kits?
A11: Yes, the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm can work with emergency kits, providing additional safety and functionality during power outages.

Q12: Can motion sensors be integrated with this light fixture?
A12: Yes, the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm can be combined with motion sensors, allowing for automated lighting control based on occupancy.

Q13: What is the beam angle of this Bulkhead light?
A13: The DALI Bulkhead Light Round IP65 Waterproof Halo 300mm has a wide beam angle of 120°, providing broad and uniform illumination.

Q14: What is the electric class of this light fixture?
A14: The DALI Bulkhead Light Round IP65 Waterproof Halo 300mm has an electric class I rating, ensuring safety and compliance with electrical standards.

Q15: What are the available finishes for the base of this Bulkhead light?
A15: The base of the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm is available in three powder-coated finishes: black, silver gray, and white, allowing for design integration in various settings.

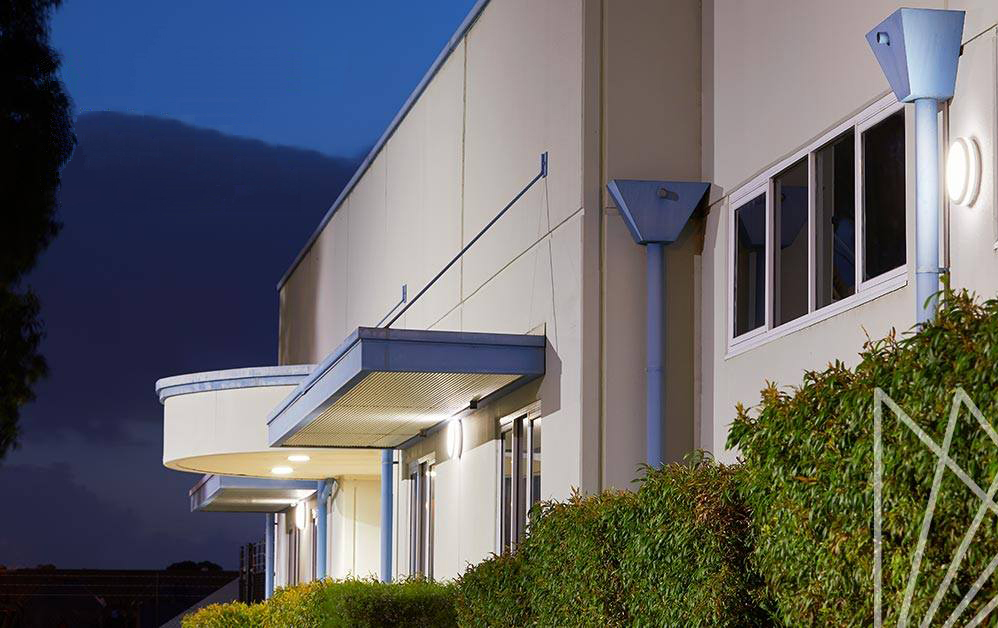

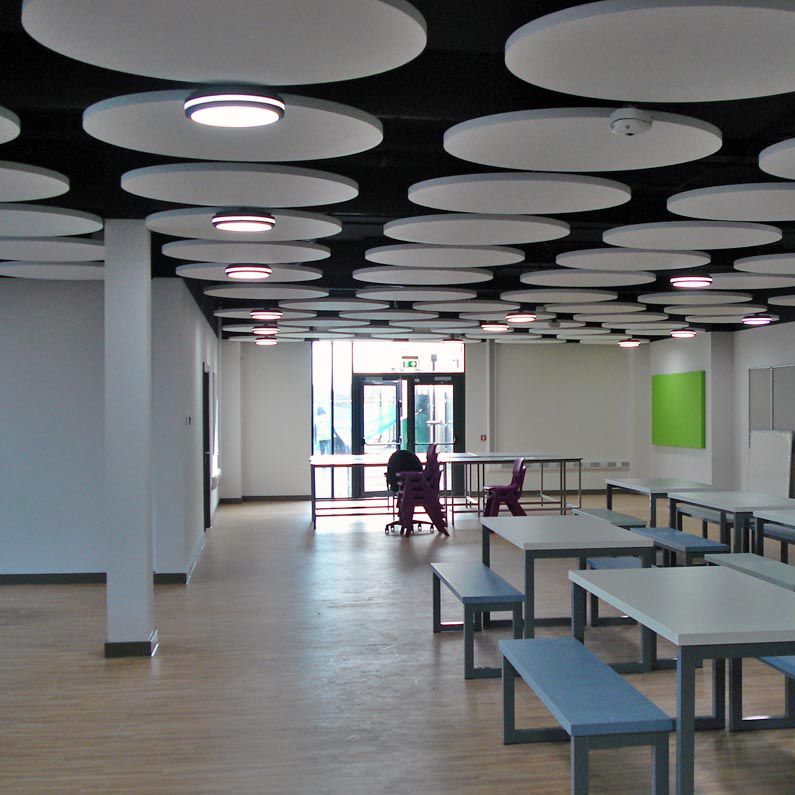

1. Walkways and Corridors: Illuminate pathways and corridors in commercial buildings, schools, hospitals, or hotels, providing safe and well-lit passage for occupants.

2. Tunnels: Enhance visibility and safety in underground tunnels, ensuring clear visibility for drivers and pedestrians.

3. Storage Areas: Illuminate storage spaces such as warehouses, garages, or industrial facilities, providing ample lighting for easy navigation and retrieval of stored items.

4. Car Parks: Install these lights in parking lots or garages to ensure well-lit and secure environments for vehicles and pedestrians.

5. Outdoor Areas: With its IP65 waterproof rating, these lights are suitable for outdoor applications such as building exteriors, entrances, or outdoor recreational spaces where reliable and durable lighting is required.

6. Commercial Spaces: Enhance lighting in retail stores, offices, lobbies, or public areas, providing an inviting and well-lit environment for customers, employees, or visitors.

7. Educational Institutions: Illuminate classrooms, libraries, or common areas in schools, colleges, or universities, creating an optimal learning environment.

8. Healthcare Facilities: Install these lights in hospitals, clinics, or medical centers to provide bright and uniform lighting for patient rooms, hallways, or waiting areas.

9. Hospitality Sector: Use these lights in hotels, resorts, or restaurants to create a welcoming ambiance in common areas, lobbies, or dining spaces.

10. Residential Spaces: These lights can also be used in residential settings such as apartments, condominiums, or houses, providing efficient and aesthetically pleasing lighting solutions.

1. Can this DALI Bulkhead Light have emergency and motion sensor together?

Yes, it can have emergency and motion sensor together, built-in the luminares.

2. If it has emergency, is it self-test?

Yes, we can provide self-test emergency with this DALI Bulkhead Lights.

3. If I want to make the emergency function with DALI, not only mains power, is it Okay?

Yes, it is Okay, the DALI Bulkhead light can not only have DALI for mains power, also can have DALI emergency for option. You can contact with our professional sales team.

4. Is the motion sensor settable?

Yes, the motion sensor is settable by DIP switcher.

5. Can we use it in coastal areas?

Yes, we use outdoor quality powder, and use professional coated processes to meet strict paint adhesion testing.

Specifications
Input 220V~240VAC or 110-277VAC LED Source LumiLEDs LEDs,SDCM 3
Watts 20-30W Lumen Effective
110LM/W
Size φ300x90mm DALI Type
DALI2 DT6, DT8 for option
Materials Dia Dast Aluminum+ PC PF >0.9
CCT 2800-7000K CRI >82
Electrical Classification  Class I IP Class  IP65, IK10
Beam angle 120° Body Color White, Black or Gray Painted
Warranty 3-5 years Certification CE&RoHS&SAA,TUV

Send Your Inquiry

Description
DALI Bulkhead Light Round IP65 Waterproof Halo 300mm (Model: ILED-BH-R DALI) is a versatile and reliable lighting solution suitable for various applications. It offers a range of features designed to meet different lighting needs. With its 3CCT switchable option, users can choose from different color temperatures. The input voltage compatibility of 220-240VAC/110-277VAC and selectable wattage of 20W/30W provide flexibility in installation. Constructed with a Die Cast Aluminum body and PC Diffuser, this light ensures durability and longevity. The LumiLEDs CRI 82 LEDs with SDCM 3 guarantee accurate color rendering. The built-in DALI driver from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic ensures reliable performance. It has a power factor greater than 0.9 and is flicker-free, ensuring efficient and comfortable lighting. The DALI Bulkhead Light offers a lumen efficacy of up to 110LM/W, providing soft and even lighting with a wide beam angle of 120°. It is designed to resist yellowing and UV damage, maintaining its quality over time. The light can be surface mounted or pendant installed, offering flexibility in placement. With an IK10 rating, it is highly resistant to impact, while its IP65 waterproof feature makes it suitable for outdoor and wet environments. The light has a long lifespan of 50,000 hours, reducing maintenance needs. It can also be integrated with emergency kits and motion sensors for added functionality. The base comes in three powder-coated finishes: Black, Silver Gray, or White, allowing for seamless integration into various settings. With its reliable performance and easy installation, the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm is an ideal choice for walkways, tunnels, storage areas, car parks, and other applications requiring efficient mains and emergency lighting.
Why choose us?

1. Versatility: With its 3CCT switchable option, you can customize the color temperature according to your project requirements, ensuring the desired ambiance and lighting effect.

2. Reliability and Flexibility: This bulkhead light operates on a wide input range, making it suitable for different voltage systems. The selectable wattage options allow you to adjust the power consumption based on specific needs.

3. High-Quality Lighting: The LumiLEDs CRI 82 LEDs ensure excellent color rendering, enhancing the visual appeal of your spaces. The soft and even lighting distribution creates a comfortable and inviting atmosphere.

4. Durability and Adaptability: Constructed with a robust Die Cast Aluminum body and a PC Diffuser, this light fixture is designed to withstand harsh conditions. Its IP65 waterproof rating ensures reliable performance in outdoor environments.

5. Energy Efficiency: With a lumen efficacy of up to 110LM/W and a power factor greater than 0.9, this bulkhead light offers energy savings while providing ample illumination, contributing to lower energy costs.

6. Safety and Convenience: The built-in DALI driver from reputable brands ensures stable and flicker-free operation, promoting visual comfort. The compatibility with emergency kits and motion sensors adds an extra layer of safety and convenience to your projects.

7. Long Lifespan: With a lifespan of 50,000 hours, this ceiling light minimizes maintenance requirements and offers long-term reliability, reducing the need for frequent replacements.

8. Aesthetics: The powder-coated finishes in black, silver gray, or white provide options to seamlessly integrate the bulkhead light into your project’s design aesthetic.

Frequently Asked Questions

Q1: What is the size of the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm?
A1: The size of the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm is φ300x90mm.

Q2: Does this light fixture have a built-in driver?
A2: Yes, the DALI bulkhead Light Square IP65 Waterproof Halo 300mm comes with a built-in quality brand DALI driver from BOKE, VS, TCI, Osram, or Tridonic.

Q3: Can I adjust the wattage of this bulkhead light?
A3: Yes, you can select the wattage option for the DALI Bulkhead Light round IP65 Waterproof Halo 300mm between 20W and 30W.

Q4: Is the color temperature adjustable?
A4: Yes, this Bulkhead light offers a 3CCT switchable option, allowing you to adjust the color temperature according to your preferences.

Q5: What is the lumen efficacy of this light fixture?
A5: The DALI Bulkhead Light Square IP65 Waterproof Halo 300mm provides a lumen efficacy of up to 110LM/W, ensuring efficient and effective illumination.

Q6: Does this light emit flickering?
A6: No, the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm is designed to be flicker-free, providing a comfortable and visually stable lighting experience.

Q7: Is the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm suitable for outdoor use?
A7: Yes, this light fixture has an IP65 waterproof rating, making it ideal for outdoor applications where protection against dust and water is required.

Q8: What is the lifespan of this ceiling light?
A8: The DALI Bulkhead Light Round IP65 Waterproof Halo 300mm has a long lifespan of 50,000 hours, ensuring durability and minimal maintenance requirements.

Q9: Can this light be installed on the surface or as a pendant?
A9: Yes, the DALI Bulkhead Light Square IP65 Waterproof Halo 300mm offers installation options for both surface mounting and pendant installation.

Q10: Does this bulkhead light have UV protection?
A10: Yes, the DALI Bulkhead Light Square IP65 Waterproof Halo 300mm is designed with anti-UV properties, preventing yellowing and maintaining its performance over time.

Q11: Is this light compatible with emergency kits?
A11: Yes, the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm can work with emergency kits, providing additional safety and functionality during power outages.

Q12: Can motion sensors be integrated with this light fixture?
A12: Yes, the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm can be combined with motion sensors, allowing for automated lighting control based on occupancy.

Q13: What is the beam angle of this Bulkhead light?
A13: The DALI Bulkhead Light Round IP65 Waterproof Halo 300mm has a wide beam angle of 120°, providing broad and uniform illumination.

Q14: What is the electric class of this light fixture?
A14: The DALI Bulkhead Light Round IP65 Waterproof Halo 300mm has an electric class I rating, ensuring safety and compliance with electrical standards.

Q15: What are the available finishes for the base of this Bulkhead light?
A15: The base of the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm is available in three powder-coated finishes: black, silver gray, and white, allowing for design integration in various settings.

Applications

1. Walkways and Corridors: Illuminate pathways and corridors in commercial buildings, schools, hospitals, or hotels, providing safe and well-lit passage for occupants.

2. Tunnels: Enhance visibility and safety in underground tunnels, ensuring clear visibility for drivers and pedestrians.

3. Storage Areas: Illuminate storage spaces such as warehouses, garages, or industrial facilities, providing ample lighting for easy navigation and retrieval of stored items.

4. Car Parks: Install these lights in parking lots or garages to ensure well-lit and secure environments for vehicles and pedestrians.

5. Outdoor Areas: With its IP65 waterproof rating, these lights are suitable for outdoor applications such as building exteriors, entrances, or outdoor recreational spaces where reliable and durable lighting is required.

6. Commercial Spaces: Enhance lighting in retail stores, offices, lobbies, or public areas, providing an inviting and well-lit environment for customers, employees, or visitors.

7. Educational Institutions: Illuminate classrooms, libraries, or common areas in schools, colleges, or universities, creating an optimal learning environment.

8. Healthcare Facilities: Install these lights in hospitals, clinics, or medical centers to provide bright and uniform lighting for patient rooms, hallways, or waiting areas.

9. Hospitality Sector: Use these lights in hotels, resorts, or restaurants to create a welcoming ambiance in common areas, lobbies, or dining spaces.

10. Residential Spaces: These lights can also be used in residential settings such as apartments, condominiums, or houses, providing efficient and aesthetically pleasing lighting solutions.

More You're Caring

1. Can this DALI Bulkhead Light have emergency and motion sensor together?

Yes, it can have emergency and motion sensor together, built-in the luminares.

2. If it has emergency, is it self-test?

Yes, we can provide self-test emergency with this DALI Bulkhead Lights.

3. If I want to make the emergency function with DALI, not only mains power, is it Okay?

Yes, it is Okay, the DALI Bulkhead light can not only have DALI for mains power, also can have DALI emergency for option. You can contact with our professional sales team.

4. Is the motion sensor settable?

Yes, the motion sensor is settable by DIP switcher.

5. Can we use it in coastal areas?

Yes, we use outdoor quality powder, and use professional coated processes to meet strict paint adhesion testing.
