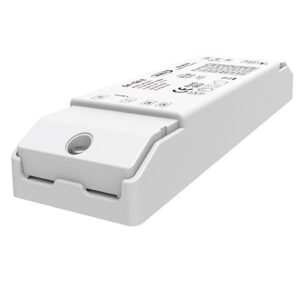

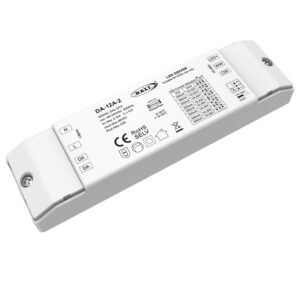

12W 100-450mA Constant Current 3CCT DALI LED Driver
1. Support DALI-2 dimming mode.
2. PWM digital dimming, standard DALI logarithmic dimming curve.
3. DALI address will be automatically assigned by DALI master, 1 DALI address.
4. Universal AC input / Ful range, High Pf, High efficiency, Flicker Free.
5. Standby power input<0.5W, meets the requirements of ErP certification.
6. Multi-current & wide voltage, suitable for different power LEDs.
7. Overheat / Overload / Short circuit protection, recover automatically.
8. Class ll design, SElV safety ultra-low voltage.
9. Suitable for indoor LED lighting application.
10. In accordance with DALI standard protocol lEC 62386-102,IEC 62386-20lEC 62386-209 and in compliance with DAll producis from otherinternational incorporation.
Highlights
→ DT6 DALI 2, PUSH DIM
→ High PF,Flicker Free, Low THD
→ Stable and Long life
→ 110-277VAC
| Model NO. |
DA-12A-2 | Brand | FlexCUBE |
| Input | 110-240VAC | Frequency | 50/60Hz |
| Efficiency | >83% | PF | >0.95 |
| Output Voltage |
10-42VDC | Output Current |
100-450mA |
| Max. O-Voltage |
48VDC | Output Power |
Max. 12W |
| Ta |
50℃ |
Tc |
80℃ |
| Dimming | 0-100%(Dimming Depth 0.1%) |
THD |
<12%@240VAC |
| Protection type | Class II | IP Rating | IP20 |
|
Output type
|
SELV |
Operation temperature |
-20°C-50°C |
| Warranty | 5 years | Certifications | SAA CE ROHS |
|
Surge |
L-N:1KV |
||
| Features | 1. Support DALI-2 dimming mode. 2. PWM digital dimming, standard DALI logarithmic dimming curve. 3. DALI address will be automatically assigned by DALI master, 1 DALI address. 4. Universal AC input / Ful range, High Pf, High efficiency, Flicker Free. 5. Standby power input<0.5W, meets the requirements of ErP certification. 6. Multi-current & wide voltage, suitable for different power LEDs. 7. Overheat / Overload / Short circuit protection, recover automatically. 8. Class ll design, SElV safety ultra-low voltage. 9. Suitable for indoor LED lighting application. 10. In accordance with DALI standard protocol lEC 62386-102,IEC 62386-20lEC 62386-209 and in compliance with DAll producis from otherinternational incorporation. |
||
