DALI Bulkhead Light Max Size IP65 Waterproof 360mm
DALI Bulkhead Light is a high-performance lighting solution designed for various applications. With a maximum size of φ360mm and an IP65 waterproof rating, it ensures reliable performance in demanding environments. The IK10 impact resistance and die-cast aluminum body with a PC diffuser provide durability and efficient light distribution. Delivering a luminous efficacy of 110LM/W, powered by LumiLEDs LEDs, and boasting a CRI of over 82, it offers exceptional light quality. The light is free from blue light hazards and operates flicker-free, providing comfortable illumination. It comes with branded DALI drivers like BOKE, Tridonic, Osram, VS, or TCI, ensuring seamless integration with DALI systems. Optional features include emergency kits and motion sensors for enhanced safety and energy efficiency. The face ring can be customized with options such as O-ring, eyelid, or crossblade to suit specific design preferences.
Highlights
→ DALI2
→ High Lumen 110LM/W
→ Robust Cast Aluminum Body
→ Max Size Diameter 360mm
→ Emergency+Motion Sensor
→ Anti Salty,IP65,IK10
→ Uniform Soft Lighting
| Input | 220V~240VAC or 110-277VAC | LED Source | LumiLEDs LEDs,SDCM 3 |
| Watts | 20-30W | Lumen Effective |
110LM/W |
| Size | φ360x130mm | DALI Type |
DALI2 DT6, DT8 for option |
| Materials | Dia Dast Aluminum+ PC | PF | >0.9 |
| CCT | 2800-7000K | CRI | >82 |
| Electrical Classification | Class I | IP Class | IP65, IK10 |
| Beam angle | 120° | Body Color | White, Black or Gray Painted |
| Warranty | 3-5 years | Certification | CE&RoHS&SAA,TUV |
Send Your Inquiry
1. Versatility: The light offers a 3CCT switchable option, allowing you to select the desired color temperature according to your preference or lighting requirements.
2. High-quality components: The light features LumiLEDs CRI 82 LEDs with SDCM 3, ensuring excellent light quality and color consistency. The built-in DALI driver from renowned brands like BOKE, VS, TCI, Osram, or Tridonic ensures reliable performance and seamless integration with DALI systems.
3. Energy efficiency: With a lumen efficacy of up to 110LM/W and a power factor greater than 0.9, the light delivers efficient illumination, helping to reduce energy consumption and lower utility costs.
4. Durability: The light is constructed with a robust die-cast aluminum body and PC diffuser, providing durability and resistance to harsh environments. It has an IK10 impact resistance rating and an IP65 waterproof rating, making it suitable for indoor and outdoor applications.
5. Easy installation: The light is designed for surface mounting, offering ease of installation and flexibility in placement.
6. Safety and convenience features: The light can work with emergency kits and motion sensors, providing enhanced safety and energy efficiency options.
7. Long lifespan: With a lifespan of 50,000 hours, the light offers longevity and minimal maintenance requirements, reducing replacement and maintenance costs.
8. Wide beam angle: The light provides a wide beam angle of 120°, ensuring broad coverage and even distribution of light, making it suitable for various applications.
9. Aesthetically pleasing design: The light has a base finish available in black, silver gray, or white powder coating, allowing it to seamlessly integrate with different architectural styles.
10. Anti-UV and no yellowing: The light is designed to resist UV damage and prevent yellowing over time, ensuring long-lasting visual appeal.

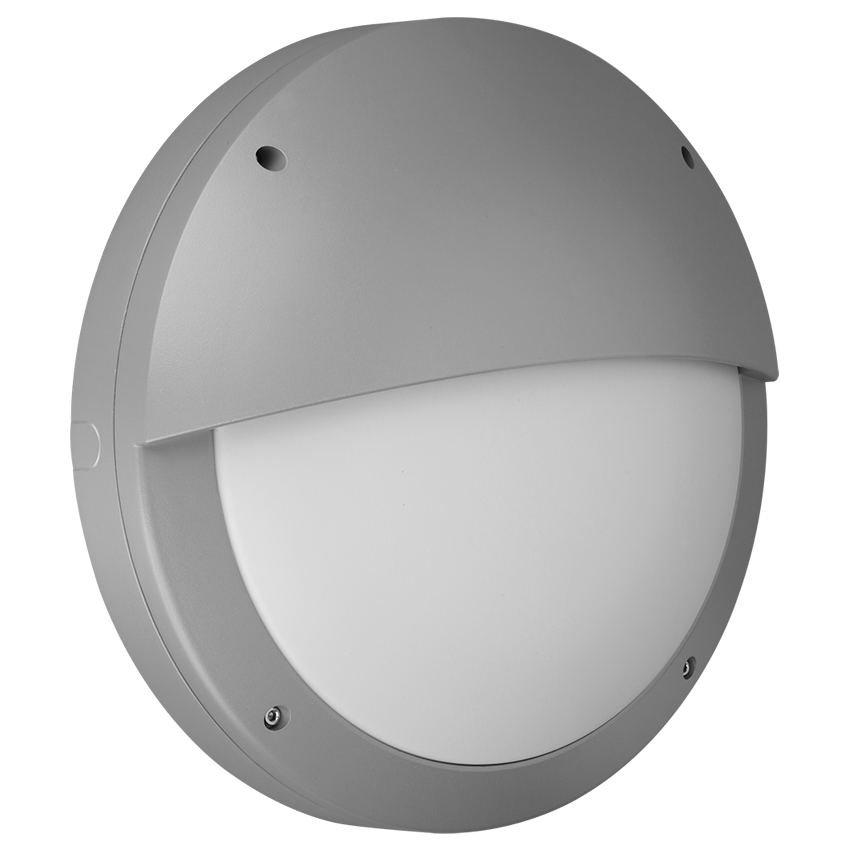

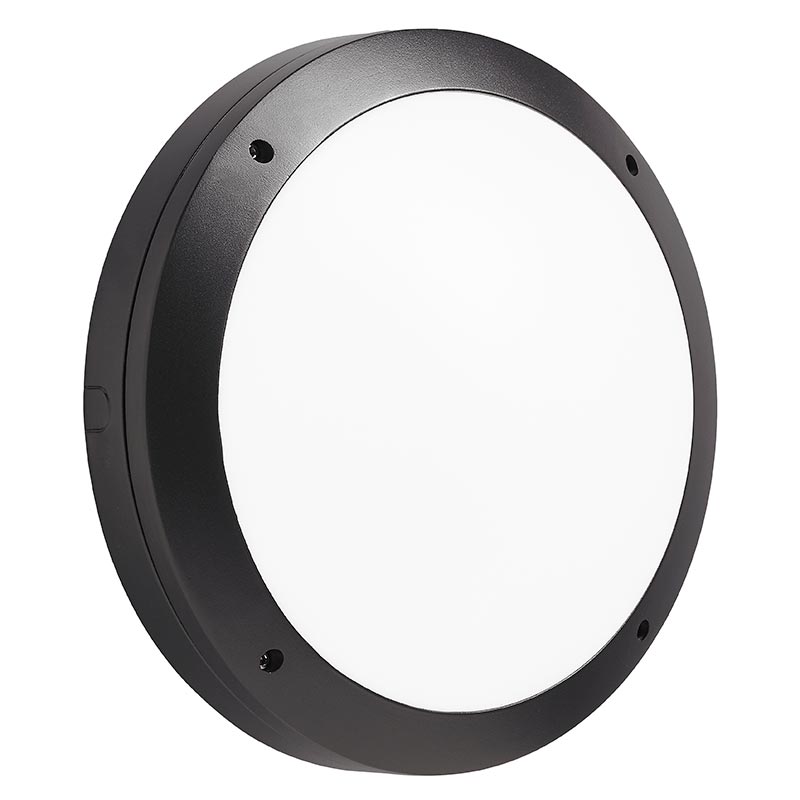

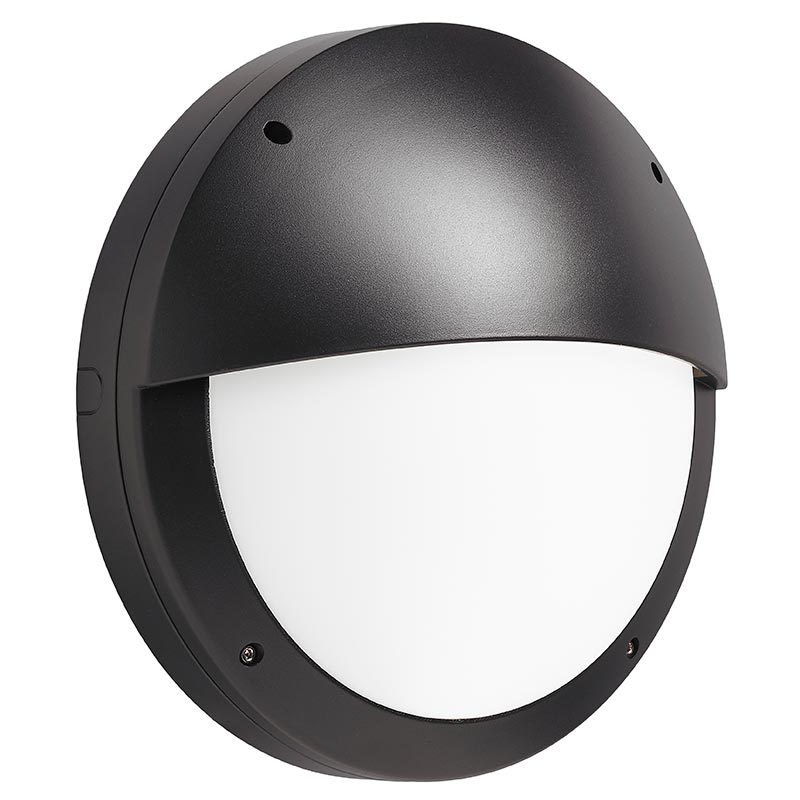

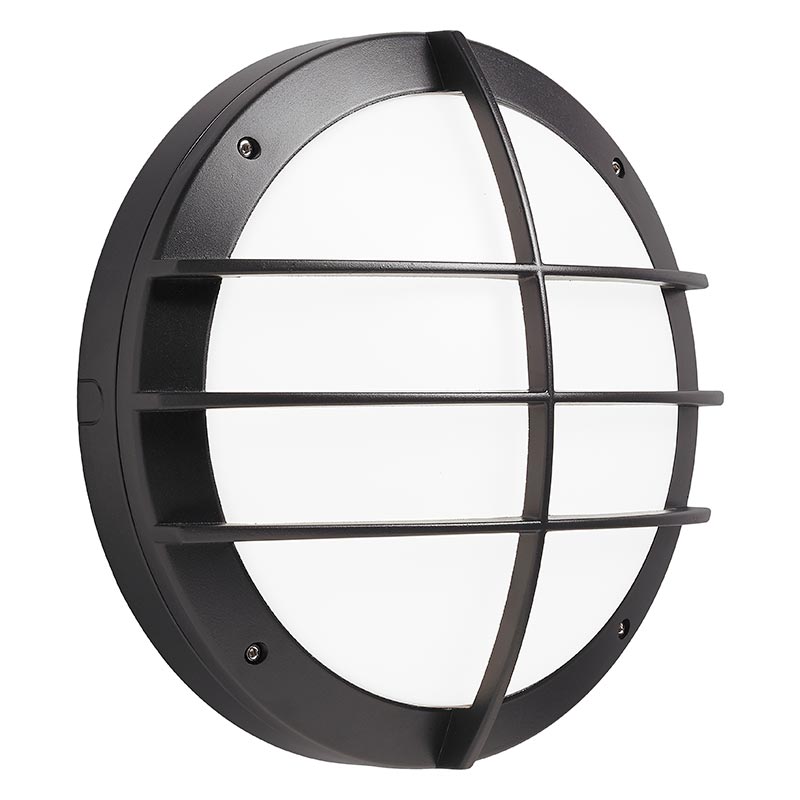

11. Different Outdoor Ring for option: O- Ring, Eyelid(Half Moon) or Crossblade.
Q1: What are the available color temperature options for the DALI Bulkhead Light?
A1: The DALI Bulkhead Light offers a 3CCT switchable option, allowing you to choose the desired color temperature.
Q2: What is the power range of the light?
A2: The DALI Bulkhead Light has a power range of 20W to 30W, providing flexibility in meeting your lighting requirements.
Q3: Is the light suitable for outdoor use?
A3: Yes, the light has an IP65 waterproof rating, making it suitable for both indoor and outdoor applications.
Q4: Does the light come with a built-in DALI driver?
A4: Yes, the DALI Bulkhead Light comes with a built-in DALI driver from quality brands like BOKE, VS, TCI, Osram, or Tridonic, ensuring reliable performance and compatibility with DALI systems.
Q5: Is the light flicker-free?
A5: Yes, the DALI Bulkhead Light operates flicker-free, providing a comfortable and consistent lighting experience.
Q6: Can the light work with emergency kits?
A6: Yes, the DALI Bulkhead Light is compatible with emergency kits, ensuring continued operation during power outages or emergencies.
Q7: What is the lifespan of the light?
A7: The DALI Bulkhead Light has a lifespan of 50,000 hours, offering long-lasting performance and reducing the need for frequent replacements.
Q8: What is the beam angle of the light?
A8: The light provides a wide beam angle of 120°, ensuring broad coverage and even distribution of light.
1. Commercial spaces: Illuminate offices, retail stores, or other commercial establishments with the DALI Bulkhead Light for efficient and reliable lighting.
2. Industrial facilities: Use the light in factories, warehouses, or industrial settings to provide optimal lighting conditions for productivity and safety.
3. Outdoor areas: The IP65 waterproof rating makes the light suitable for outdoor applications such as gardens, pathways, building exteriors, or parking lots.
4. Educational institutions: Install the light in schools, colleges, or universities to provide adequate lighting in classrooms, corridors, or common areas.
5. Healthcare facilities: Use the light in hospitals, clinics, or healthcare facilities to ensure proper lighting in patient care areas, hallways, or waiting rooms.
6. Residential spaces: The DALI Bulkhead Light can be used in residential settings, such as hallways, bathrooms, or outdoor areas, to provide reliable and energy-efficient lighting.
7. Community areas: Illuminate community spaces, parks, or recreational facilities with the DALI Bulkhead Light for enhanced visibility and safety.
8. Transportation hubs: Install the light in airports, train stations, or bus terminals to provide well-lit environments for travelers and staff.
9. Hospitality industry: Use the light in hotels, restaurants, or resorts to create a pleasant and inviting atmosphere for guests.
10. Public buildings: Illuminate public buildings, government offices, or cultural institutions with the DALI Bulkhead Light for functional and aesthetically pleasing lighting.
DALI LED Bulkhead Light for Outdoor Lighting
1. Can this DALI Bulkhead Light have emergency and motion sensor together?
Yes, it can have emergency and motion sensor together, built-in the luminares.
2. If it has emergency, is it self-test?
Yes, we can provide self-test emergency with this DALI Bulkhead Lights.
3. If I want to make the emergency function with DALI, not only mains power, is it Okay?
Yes, it is Okay, the DALI Bulkhead light can not only have DALI for mains power, also can have DALI emergency for option. You can contact with our professional sales team.
4. Is the motion sensor settable?
Yes, the motion sensor is settable by DIP switcher.
5. Can we use it in coastal areas?
Yes, we use outdoor quality powder, and use professional coated processes to meet strict paint adhesion testing.
| Input | 220V~240VAC or 110-277VAC | LED Source | LumiLEDs LEDs,SDCM 3 |
| Watts | 20-30W | Lumen Effective |
110LM/W |
| Size | φ360x130mm | DALI Type |
DALI2 DT6, DT8 for option |
| Materials | Dia Dast Aluminum+ PC | PF | >0.9 |
| CCT | 2800-7000K | CRI | >82 |
| Electrical Classification | Class I | IP Class | IP65, IK10 |
| Beam angle | 120° | Body Color | White, Black or Gray Painted |
| Warranty | 3-5 years | Certification | CE&RoHS&SAA,TUV |
Send Your Inquiry
1. Versatility: The light offers a 3CCT switchable option, allowing you to select the desired color temperature according to your preference or lighting requirements.
2. High-quality components: The light features LumiLEDs CRI 82 LEDs with SDCM 3, ensuring excellent light quality and color consistency. The built-in DALI driver from renowned brands like BOKE, VS, TCI, Osram, or Tridonic ensures reliable performance and seamless integration with DALI systems.
3. Energy efficiency: With a lumen efficacy of up to 110LM/W and a power factor greater than 0.9, the light delivers efficient illumination, helping to reduce energy consumption and lower utility costs.
4. Durability: The light is constructed with a robust die-cast aluminum body and PC diffuser, providing durability and resistance to harsh environments. It has an IK10 impact resistance rating and an IP65 waterproof rating, making it suitable for indoor and outdoor applications.
5. Easy installation: The light is designed for surface mounting, offering ease of installation and flexibility in placement.
6. Safety and convenience features: The light can work with emergency kits and motion sensors, providing enhanced safety and energy efficiency options.
7. Long lifespan: With a lifespan of 50,000 hours, the light offers longevity and minimal maintenance requirements, reducing replacement and maintenance costs.
8. Wide beam angle: The light provides a wide beam angle of 120°, ensuring broad coverage and even distribution of light, making it suitable for various applications.
9. Aesthetically pleasing design: The light has a base finish available in black, silver gray, or white powder coating, allowing it to seamlessly integrate with different architectural styles.
10. Anti-UV and no yellowing: The light is designed to resist UV damage and prevent yellowing over time, ensuring long-lasting visual appeal.
11. Different Outdoor Ring for option: O- Ring, Eyelid(Half Moon) or Crossblade.
Q1: What are the available color temperature options for the DALI Bulkhead Light?
A1: The DALI Bulkhead Light offers a 3CCT switchable option, allowing you to choose the desired color temperature.
Q2: What is the power range of the light?
A2: The DALI Bulkhead Light has a power range of 20W to 30W, providing flexibility in meeting your lighting requirements.
Q3: Is the light suitable for outdoor use?
A3: Yes, the light has an IP65 waterproof rating, making it suitable for both indoor and outdoor applications.
Q4: Does the light come with a built-in DALI driver?
A4: Yes, the DALI Bulkhead Light comes with a built-in DALI driver from quality brands like BOKE, VS, TCI, Osram, or Tridonic, ensuring reliable performance and compatibility with DALI systems.
Q5: Is the light flicker-free?
A5: Yes, the DALI Bulkhead Light operates flicker-free, providing a comfortable and consistent lighting experience.
Q6: Can the light work with emergency kits?
A6: Yes, the DALI Bulkhead Light is compatible with emergency kits, ensuring continued operation during power outages or emergencies.
Q7: What is the lifespan of the light?
A7: The DALI Bulkhead Light has a lifespan of 50,000 hours, offering long-lasting performance and reducing the need for frequent replacements.
Q8: What is the beam angle of the light?
A8: The light provides a wide beam angle of 120°, ensuring broad coverage and even distribution of light.
1. Commercial spaces: Illuminate offices, retail stores, or other commercial establishments with the DALI Bulkhead Light for efficient and reliable lighting.
2. Industrial facilities: Use the light in factories, warehouses, or industrial settings to provide optimal lighting conditions for productivity and safety.
3. Outdoor areas: The IP65 waterproof rating makes the light suitable for outdoor applications such as gardens, pathways, building exteriors, or parking lots.
4. Educational institutions: Install the light in schools, colleges, or universities to provide adequate lighting in classrooms, corridors, or common areas.
5. Healthcare facilities: Use the light in hospitals, clinics, or healthcare facilities to ensure proper lighting in patient care areas, hallways, or waiting rooms.
6. Residential spaces: The DALI Bulkhead Light can be used in residential settings, such as hallways, bathrooms, or outdoor areas, to provide reliable and energy-efficient lighting.
7. Community areas: Illuminate community spaces, parks, or recreational facilities with the DALI Bulkhead Light for enhanced visibility and safety.
8. Transportation hubs: Install the light in airports, train stations, or bus terminals to provide well-lit environments for travelers and staff.
9. Hospitality industry: Use the light in hotels, restaurants, or resorts to create a pleasant and inviting atmosphere for guests.
10. Public buildings: Illuminate public buildings, government offices, or cultural institutions with the DALI Bulkhead Light for functional and aesthetically pleasing lighting.
DALI LED Bulkhead Light for Outdoor Lighting
1. Can this DALI Bulkhead Light have emergency and motion sensor together?
Yes, it can have emergency and motion sensor together, built-in the luminares.
2. If it has emergency, is it self-test?
Yes, we can provide self-test emergency with this DALI Bulkhead Lights.
3. If I want to make the emergency function with DALI, not only mains power, is it Okay?
Yes, it is Okay, the DALI Bulkhead light can not only have DALI for mains power, also can have DALI emergency for option. You can contact with our professional sales team.
4. Is the motion sensor settable?
Yes, the motion sensor is settable by DIP switcher.
5. Can we use it in coastal areas?
Yes, we use outdoor quality powder, and use professional coated processes to meet strict paint adhesion testing.
