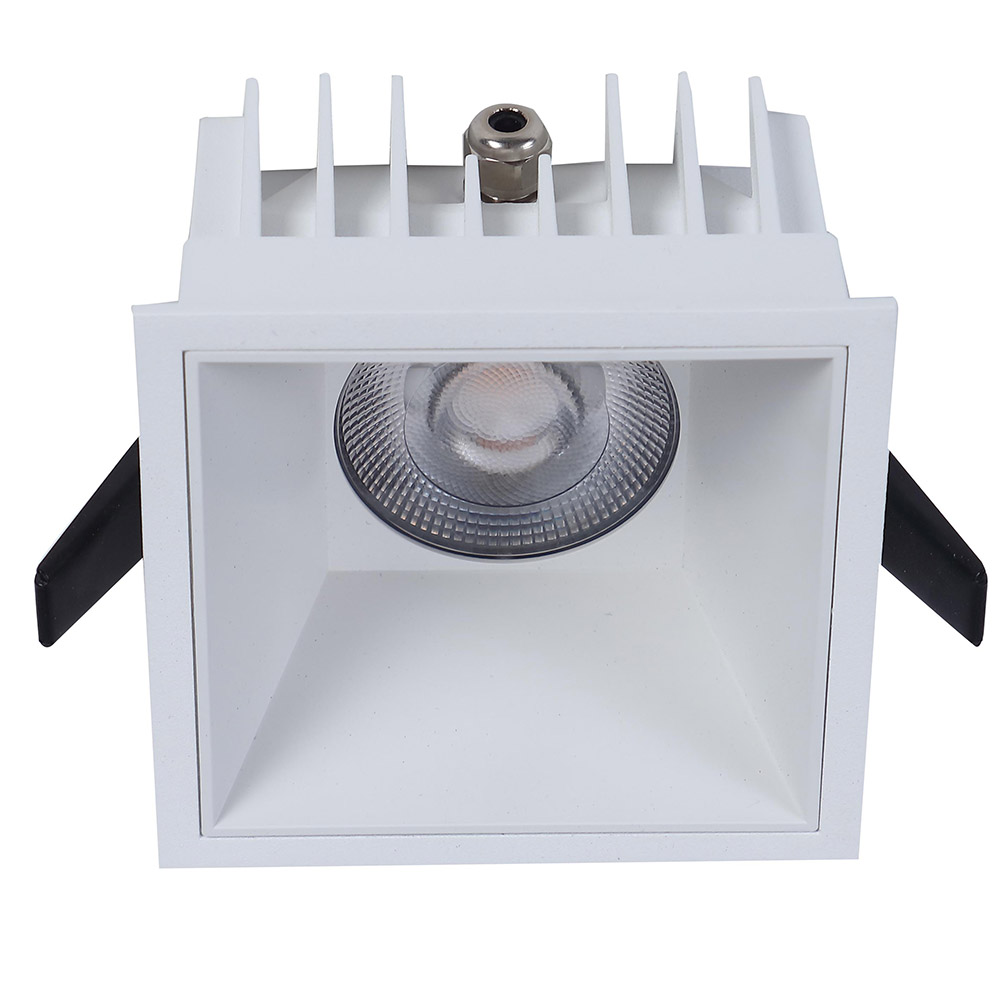

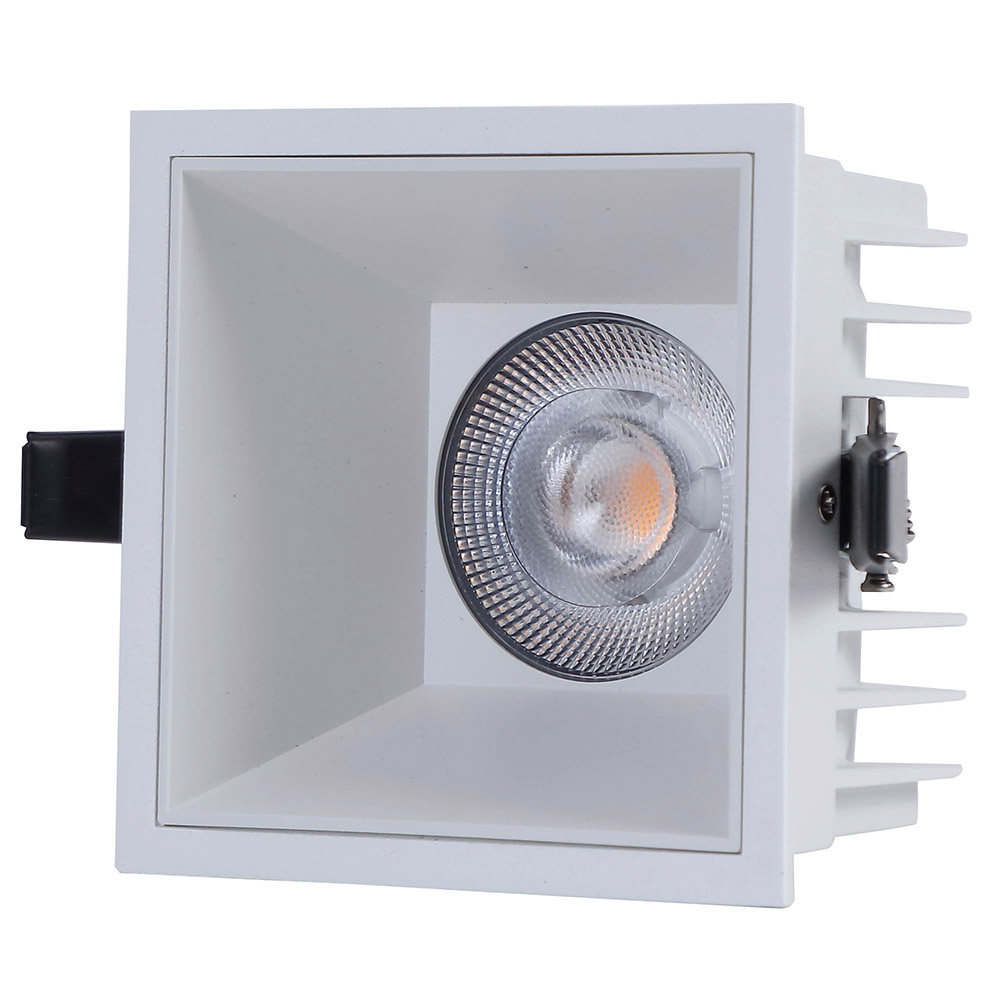

DALI Dimmable LED Downlight IP65 Square COB
DALI Dimmable LED Downlight IP65 Square COB. With aluminum body, PMMA diffuser. 10-40W, 3-6 inch sizes. CREE/Citizen COB, CRI 90. No blue light hazard, flicker-free. Compatible with DALI Lighting System. Easy connection. Recessed mounted, UGR<19, IP65 waterproof. Optional emergency feature. High-quality lighting solution.
Highlights
→ DALI2
→ CREE or Citizen COB CRI 92
→ IP65 Waterproof
→ Emergency is Option
|
Model |
Watts |
Lumen |
Size |
out |
Beam angle |
IP Class |
|
ILED-DL3-A D4 DALI |
18W |
1800LM |
100x100x64mm |
90x90mm |
IP65
|
Normal Triac Dimmable 0-10V Dimmable DALI Dimmable Emergency |
|
ILED-DL4-A D4 DALI |
28W |
2800LM |
136x136x83mm |
125x125mm |
||
|
ILED-DL5-A D4 DALI |
38W |
3800LM |
158x158x96mm |
145x145mm |
||
|
ILED-DL6-A D4 DALI |
48W |
4800LM |
180x180x109mm |
165x165mm |
| Input | 110-277VAC or 220-240VAC | LED Source | Citizen or CREE COB |
| Materials | Aluminum | PF | >0.9 |
| CCT | 2700K-6500K | CRI | >92 |
| Electrical Classification | Class II | IP Class | IP65 |
| Body Color | White/ Black | Certification | TUV,CE,RoHS,SAA |
| Functions | DALI,Emergency,Triac Dimmable,0-10V Dimmable | ||
Send Your Inquiry
1. Versatility: This downlight offers a range of options, including different color temperatures and sizes, allowing you to customize the lighting to suit your preferences and space requirements.
2. High-Quality LED Source: The downlight utilizes LM80 CRI90 CREE or Citizen COB LEDs, known for their superior quality and color rendering capabilities. This ensures that the lighting is accurate, vibrant, and visually appealing.
3. Reliable DALI Driver: Equipped with an external DALI driver from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic, the downlight ensures reliable and efficient performance. The driver is known for its quality and compatibility with DALI lighting control systems.
4. Safety and Comfort: The downlight is designed to be free from blue light hazards and flickering, ensuring a safe and comfortable lighting experience. With a power factor greater than 0.9 and flicker-free operation, it promotes energy efficiency and visual comfort.
5. Durability and Aesthetics: Constructed with an aluminum body and PMMA diffuser, the downlight offers durability and a sleek appearance. It provides soft and even lighting, creating a pleasant ambiance in any space. The anti-UV and no-yellowish features ensure long-lasting color stability and maintain the quality of the light output.
6. Easy Installation and Connection: The downlight features a recessed mounted design for easy installation. Additionally, it offers easy connection capabilities, simplifying the installation process and saving time.
7. Compatibility and Control: The downlight is designed to work seamlessly with DALI lighting control systems, offering convenient and flexible control options. This allows for centralized control and customization of the lighting according to your preferences.
8. Durability and Weather Resistance: With an IP65 rating, the downlight is protected against dust and water, making it suitable for both indoor and outdoor applications. The IK10 rating ensures resistance to impacts and vandalism, ensuring its longevity and reliability.
Q1: What are the available color temperature options for the DALI Dimmable LED Downlight IP65 Square COB?
A1: The downlight is available in color temperature options of 3000K, 4000K, 5000K, and 6000K, allowing you to choose the desired lighting ambiance.
Q2: What is the power range of the downlight?
A2: The downlight has a power range of 10-40W, providing flexibility to meet different lighting requirements.
Q3: Can the downlight be used in different sizes of ceiling spaces?
A3: Yes, the DALI Dimmable LED Downlight IP65 Square COB is available in sizes ranging from 3 inches to 6 inches, making it suitable for various ceiling spaces.
Q4: Which LED sources are used in this downlight?
A4: The downlight utilizes high-quality LM80 CRI90 CREE or Citizen COB LEDs, ensuring excellent color rendering and lighting performance.
Q5: What are the compatible DALI drivers for this downlight?
A5: The downlight is compatible with external DALI drivers from reputed brands such as BOKE, VS, TCI, Osram, or Tridonic, offering reliable and efficient performance.
Q6: Is the downlight free from blue light hazards and flickering?
A6: Yes, the DALI Dimmable LED Downlight IP65 Square COB is designed to be free from blue light hazards and flickering, providing a safe and comfortable lighting experience.
Q7: What is the lifespan of this downlight?
A7: The downlight has a long lifespan of approximately 50,000 hours, ensuring durability and longevity.
Q8: Does the downlight offer easy installation?
A8: Yes, the downlight features a recessed mounted design, making it easy to install in various spaces.
Q9: Can this downlight be used with emergency kits?
A9: Yes, the downlight is compatible with emergency kits, providing added safety and security during power outages.
Q10: Does the downlight work well with DALI lighting control systems?
A10: Absolutely. The DALI Dimmable LED Downlight IP65 Square COB is designed to work seamlessly with DALI lighting control systems, allowing for convenient and flexible control options.
1. Residential Spaces: Install these downlights in living rooms, bedrooms, kitchens, and bathrooms to create a comfortable and visually appealing lighting atmosphere. The soft and even lighting produced by the downlights enhances the overall ambiance of residential areas.
2. Commercial Buildings: These downlights are well-suited for providing efficient and visually pleasing lighting in offices, conference rooms, lobbies, hallways, and retail spaces. The high-quality LED source and adjustable beam angles ensure optimal illumination, promoting productivity and enhancing the aesthetics of commercial environments.
3. Hospitality Settings: Hotels, restaurants, and cafes can benefit from the DALI Dimmable LED Downlight IP65 Square COB. It can be used in guest rooms, dining areas, reception areas, and corridors, providing a welcoming and comfortable lighting experience for guests.
4. Educational Facilities: Install these downlights in classrooms, libraries, study areas, and common spaces in schools, colleges, and universities. The flicker-free and high-quality lighting helps create a conducive learning environment while offering energy efficiency.
5. Healthcare Facilities: The downlights can be used in hospitals, clinics, and medical facilities, providing reliable and visually comfortable lighting for patient rooms, waiting areas, corridors, and examination rooms. The flicker-free and high CRI lighting contributes to a soothing and calming atmosphere.
6. Outdoor Spaces: With its IP65 weatherproof rating, the downlight is suitable for outdoor applications such as covered patios, walkways, and building exteriors. It can withstand dust, moisture, and other environmental factors while providing efficient and visually appealing lighting.
7. Public Spaces: Install these downlights in museums, art galleries, libraries, and exhibition halls to illuminate artworks and displays effectively. The high CRI and adjustable beam angles enhance the visual experience, allowing visitors to appreciate the exhibits.
8. Industrial Environments: The downlights can be used in warehouses, manufacturing facilities, and workshops, providing bright and efficient lighting. The durable construction and resistance to impacts make them suitable for demanding industrial settings.
|
Model |
Watts |
Lumen |
Size |
out |
Beam angle |
IP Class |
|
ILED-DL3-A D4 DALI |
18W |
1800LM |
100x100x64mm |
90x90mm |
IP65
|
Normal Triac Dimmable 0-10V Dimmable DALI Dimmable Emergency |
|
ILED-DL4-A D4 DALI |
28W |
2800LM |
136x136x83mm |
125x125mm |
||
|
ILED-DL5-A D4 DALI |
38W |
3800LM |
158x158x96mm |
145x145mm |
||
|
ILED-DL6-A D4 DALI |
48W |
4800LM |
180x180x109mm |
165x165mm |
| Input | 110-277VAC or 220-240VAC | LED Source | Citizen or CREE COB |
| Materials | Aluminum | PF | >0.9 |
| CCT | 2700K-6500K | CRI | >92 |
| Electrical Classification | Class II | IP Class | IP65 |
| Body Color | White/ Black | Certification | TUV,CE,RoHS,SAA |
| Functions | DALI,Emergency,Triac Dimmable,0-10V Dimmable | ||
Send Your Inquiry
1. Versatility: This downlight offers a range of options, including different color temperatures and sizes, allowing you to customize the lighting to suit your preferences and space requirements.
2. High-Quality LED Source: The downlight utilizes LM80 CRI90 CREE or Citizen COB LEDs, known for their superior quality and color rendering capabilities. This ensures that the lighting is accurate, vibrant, and visually appealing.
3. Reliable DALI Driver: Equipped with an external DALI driver from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic, the downlight ensures reliable and efficient performance. The driver is known for its quality and compatibility with DALI lighting control systems.
4. Safety and Comfort: The downlight is designed to be free from blue light hazards and flickering, ensuring a safe and comfortable lighting experience. With a power factor greater than 0.9 and flicker-free operation, it promotes energy efficiency and visual comfort.
5. Durability and Aesthetics: Constructed with an aluminum body and PMMA diffuser, the downlight offers durability and a sleek appearance. It provides soft and even lighting, creating a pleasant ambiance in any space. The anti-UV and no-yellowish features ensure long-lasting color stability and maintain the quality of the light output.
6. Easy Installation and Connection: The downlight features a recessed mounted design for easy installation. Additionally, it offers easy connection capabilities, simplifying the installation process and saving time.
7. Compatibility and Control: The downlight is designed to work seamlessly with DALI lighting control systems, offering convenient and flexible control options. This allows for centralized control and customization of the lighting according to your preferences.
8. Durability and Weather Resistance: With an IP65 rating, the downlight is protected against dust and water, making it suitable for both indoor and outdoor applications. The IK10 rating ensures resistance to impacts and vandalism, ensuring its longevity and reliability.
Q1: What are the available color temperature options for the DALI Dimmable LED Downlight IP65 Square COB?
A1: The downlight is available in color temperature options of 3000K, 4000K, 5000K, and 6000K, allowing you to choose the desired lighting ambiance.
Q2: What is the power range of the downlight?
A2: The downlight has a power range of 10-40W, providing flexibility to meet different lighting requirements.
Q3: Can the downlight be used in different sizes of ceiling spaces?
A3: Yes, the DALI Dimmable LED Downlight IP65 Square COB is available in sizes ranging from 3 inches to 6 inches, making it suitable for various ceiling spaces.
Q4: Which LED sources are used in this downlight?
A4: The downlight utilizes high-quality LM80 CRI90 CREE or Citizen COB LEDs, ensuring excellent color rendering and lighting performance.
Q5: What are the compatible DALI drivers for this downlight?
A5: The downlight is compatible with external DALI drivers from reputed brands such as BOKE, VS, TCI, Osram, or Tridonic, offering reliable and efficient performance.
Q6: Is the downlight free from blue light hazards and flickering?
A6: Yes, the DALI Dimmable LED Downlight IP65 Square COB is designed to be free from blue light hazards and flickering, providing a safe and comfortable lighting experience.
Q7: What is the lifespan of this downlight?
A7: The downlight has a long lifespan of approximately 50,000 hours, ensuring durability and longevity.
Q8: Does the downlight offer easy installation?
A8: Yes, the downlight features a recessed mounted design, making it easy to install in various spaces.
Q9: Can this downlight be used with emergency kits?
A9: Yes, the downlight is compatible with emergency kits, providing added safety and security during power outages.
Q10: Does the downlight work well with DALI lighting control systems?
A10: Absolutely. The DALI Dimmable LED Downlight IP65 Square COB is designed to work seamlessly with DALI lighting control systems, allowing for convenient and flexible control options.
1. Residential Spaces: Install these downlights in living rooms, bedrooms, kitchens, and bathrooms to create a comfortable and visually appealing lighting atmosphere. The soft and even lighting produced by the downlights enhances the overall ambiance of residential areas.
2. Commercial Buildings: These downlights are well-suited for providing efficient and visually pleasing lighting in offices, conference rooms, lobbies, hallways, and retail spaces. The high-quality LED source and adjustable beam angles ensure optimal illumination, promoting productivity and enhancing the aesthetics of commercial environments.
3. Hospitality Settings: Hotels, restaurants, and cafes can benefit from the DALI Dimmable LED Downlight IP65 Square COB. It can be used in guest rooms, dining areas, reception areas, and corridors, providing a welcoming and comfortable lighting experience for guests.
4. Educational Facilities: Install these downlights in classrooms, libraries, study areas, and common spaces in schools, colleges, and universities. The flicker-free and high-quality lighting helps create a conducive learning environment while offering energy efficiency.
5. Healthcare Facilities: The downlights can be used in hospitals, clinics, and medical facilities, providing reliable and visually comfortable lighting for patient rooms, waiting areas, corridors, and examination rooms. The flicker-free and high CRI lighting contributes to a soothing and calming atmosphere.
6. Outdoor Spaces: With its IP65 weatherproof rating, the downlight is suitable for outdoor applications such as covered patios, walkways, and building exteriors. It can withstand dust, moisture, and other environmental factors while providing efficient and visually appealing lighting.
7. Public Spaces: Install these downlights in museums, art galleries, libraries, and exhibition halls to illuminate artworks and displays effectively. The high CRI and adjustable beam angles enhance the visual experience, allowing visitors to appreciate the exhibits.
8. Industrial Environments: The downlights can be used in warehouses, manufacturing facilities, and workshops, providing bright and efficient lighting. The durable construction and resistance to impacts make them suitable for demanding industrial settings.
Feedback from the Clients Who Used
We are extremely pleased with the DALI Dimmable LED Downlight IP65 Square COB by DaLight. These lights have transformed our building’s lighting system, offering superior performance and energy efficiency. The wide range of color temperature options allows us to create the desired ambiance for different areas. The durability and long lifespan of these lights ensure minimal maintenance and replacement needs. DaLight has truly delivered a high-quality lighting solution for our building.
Samantha Allen
Building Manager
We are extremely satisfied with the DALI Dimmable LED Downlight IP65 Square COB by DaLight. These lights have become our go-to choice for projects due to their outstanding performance. The high-quality LED source ensures excellent lighting output, enhancing the visual appeal of our installations. The durability and weather resistance of these lights make them suitable for various indoor and outdoor applications. DaLight has truly delivered a reliable and efficient lighting solution.
Stephanie Wilson
Lighting Technician
DaLight’s DALI Dimmable LED Downlight IP65 Square COB has been a fantastic addition to our projects. These lights offer superior performance and reliability. The wide range of color temperature options allows us to create the desired ambiance for different spaces. The compatibility with existing systems and easy installation process have simplified our work. DaLight has provided us with a high-quality lighting solution that we can trust.
Thomas Green
Electrical Contractor
DaLight’s DALI Dimmable LED Downlight IP65 Square COB has greatly simplified our maintenance tasks. These lights are built to last, with sturdy construction that withstands environmental factors. The long lifespan and low maintenance requirements save us time and effort. The compatibility with existing systems and easy installation process have made our work more efficient. These lights have proven to be a reliable and practical choice for maintenance projects.
Sarah Adams
Maintenance Supervisor
DaLight’s DALI Dimmable LED Downlight IP65 Square COB is a fantastic investment for energy-conscious projects. These lights offer outstanding energy efficiency, providing significant electricity savings without compromising on lighting quality. The durable construction and long lifespan contribute to reduced maintenance and replacement costs. With their compatibility with DALI lighting control systems, precise control over energy usage becomes effortless. These lights are a reliable and eco-friendly lighting solution.
Laura Davis
Energy Efficiency Analyst
We are extremely satisfied with the DALI Dimmable LED Downlight IP65 Square COB by DaLight. The choice of LM80 CRI90 CREE or Citizen COB LEDs resulted in exceptional color rendering and vibrant lighting. The compatibility with external DALI drivers ensured reliable performance. The downlights’ easy installation and connection simplified our projects. With its long lifespan and weather-resistant features, this product is a fantastic choice for any lighting application.
Ryan Anderson
Smart Home Systems
Can’t find a suitable product?
All of our LED lighting solutions can be customised to your needs. We also offer free, no-obligation consultations, prototype development, sample testing and can assist with your development projects.
Simply call us on with your special requirements and our experts will gladly help you find the best solution for your project.
