Your Reliable Automative Lighting Partner in DALI System,Wireless and DMX512

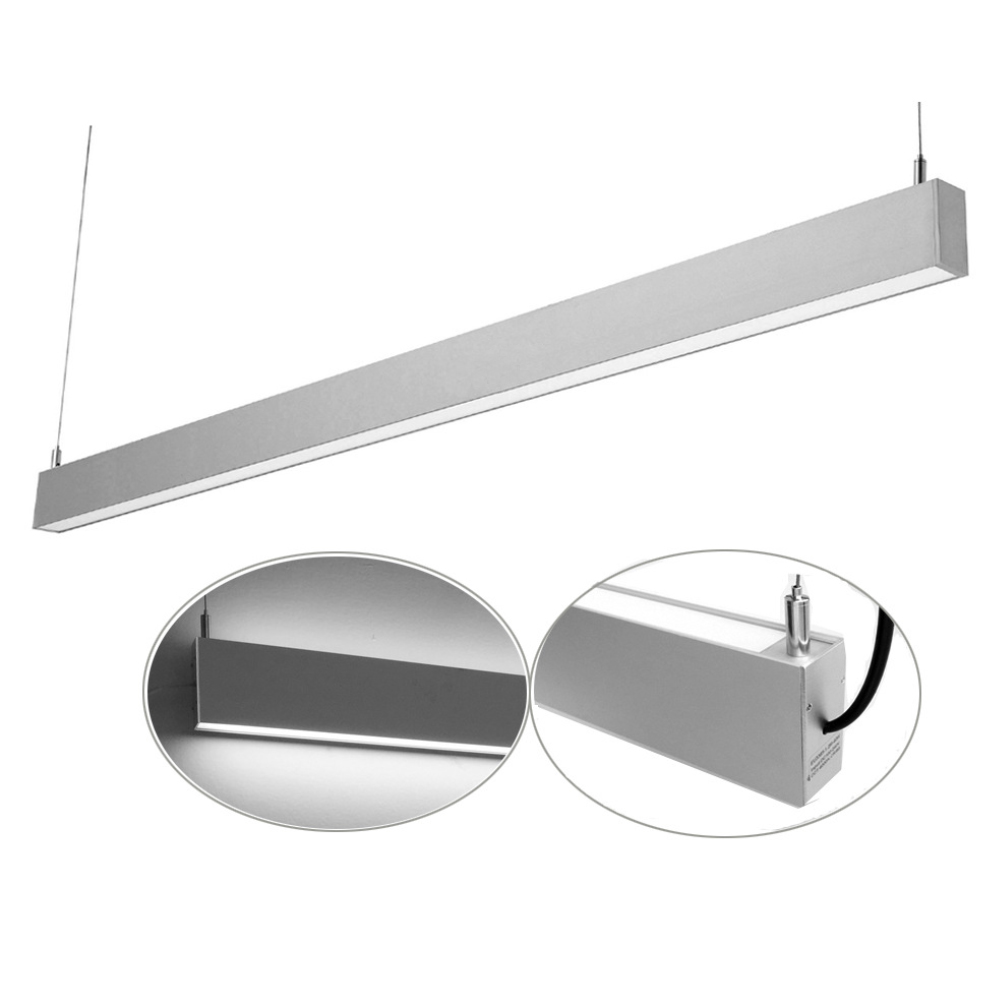

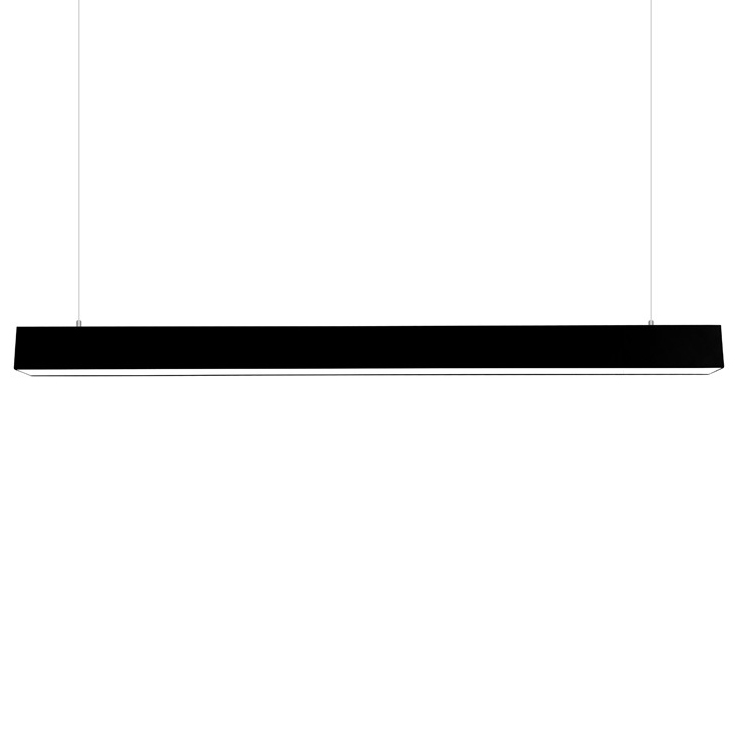

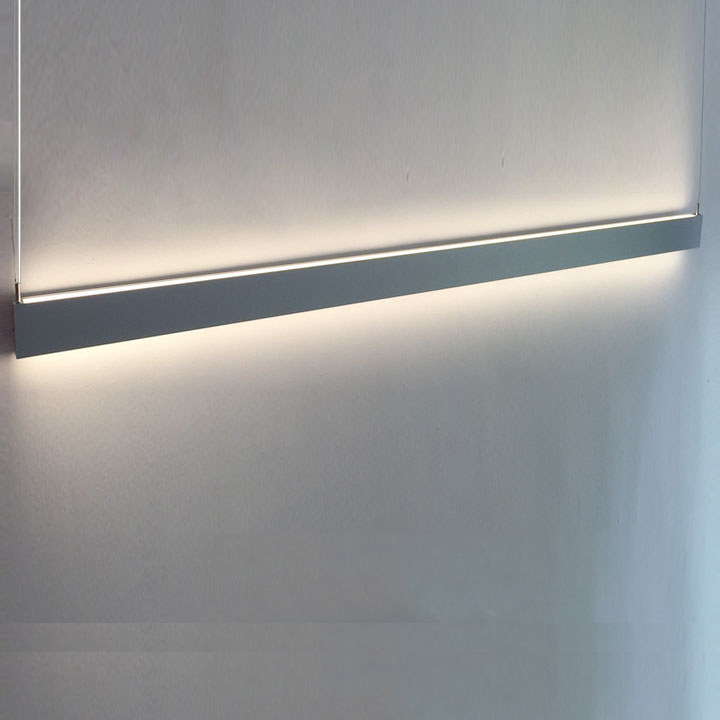

DALI Lamp LED Linear Slim Pendant Linkable

DALI Lamp LED Linear Slim Pendant Linkable, a cutting-edge lighting solution for versatile applications. Crafted with an aluminum body and PC diffuser, this fixture combines durability with a sleek aesthetic. With LM80 LumiLEDs LED technology, it delivers high luminous efficacy of 100LM/W, ensuring efficient lighting performance. Customizable in any length, it offers flexibility to suit various project requirements. The fixture boasts a CRI>82 or CRI 90, guaranteeing accurate color rendering. Safety is prioritized with no blue light hazard and flicker-free operation. Equipped with branded DALI drivers like BOKE, Tridonic, Osram, VS, or TCI, seamless integration into DALI Lighting Systems is assured. Easy connection and linkability make installation hassle-free. An optional emergency feature provides added functionality. Experience superior lighting control and reliability with the DALI Lamp LED Linear Slim Pendant Linkable.

Highlights

→ DALI2

→ LumiLEDs LM80, CRI 82 or CRI 90

→ Slim Design

→ Pendant



Model Wattage Lumen Output Dimensions
ILED-LL-100B 7535 DALI 30W 3000LM (100LM / W) L1000xW35xH75mm
ILED-LL-200B 7535 DALI 60W 6000LM (100LM / W) L2000xW35xH75mm



Input 220-240VAC/110-277VAC LED Source LumiLEDs LM80
Wattage 30W/60W PF >0.9
Color Temperature 2800-6500K/RGB/RGBW Lumen Effective 90-100LM/W
Materials Aluminum CRI >82 or 90
Electrical Classification Class I IP Rating IP42
Beam Angel 120° Body Color White/Black
Warranty 3-5 years Certifications SAA CE ROHS

Send Your Inquiry

DALI Lamp LED Linear Slim Pendant, model ILED-LL-B 7535 DALI, a versatile lighting solution that combines style and functionality. With a wide range of CCT options including 3000K, 4000K, 5000K, 6000K, RGB, or RGBW, it offers flexibility to create the desired ambiance. The input voltage ranges from 220-240VAC to 110-277VAC, accommodating different power systems. Available in two standard sizes, 1000x75x35mm and 2000x75x35mm, this pendant light can also be customized to any length, ensuring a perfect fit for any space. Equipped with LM80 LumiLEDs with a choice of CRI 82 or CRI 90 LEDs, the DALI Lamp LED Linear Slim Pendant delivers high-quality lighting with soft and even illumination. The built-in DALI driver is sourced from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic, ensuring reliable performance and compatibility with DALI lighting control systems. With a power factor greater than 0.9 and flicker-free operation, it provides a comfortable and visually appealing lighting experience. Constructed with an aluminum body and PC diffuser, this pendant light is not only durable but also offers anti-UV properties, preventing yellowing over time. It can be easily installed as a wall-mounted or pendant light, providing flexibility in placement. With electric Class I certification, it meets safety standards, and it can also work with emergency kits for added functionality. With a long lifespan of 50,000 hours and a wide beam angle of 120°, the DALI Lamp LED Linear Slim Pendant ensures reliable and efficient lighting for extended periods. It has an IP42 rating for protection against dust and IK06 rating for impact resistance. Easy connection and linkability make installation hassle-free, while its compatibility with DALI lighting control systems allows for seamless integration. Experience superior lighting performance with the DALI Lamp LED Linear Slim Pendant, a versatile and reliable lighting solution for various applications.

1. Versatile CCT Options: With a wide range of color temperature options, including 3000K, 4000K, 5000K, 6000K, RGB, or RGBW, you can create the desired ambiance and lighting effect for your space. Whether you need warm, cool, or customizable colored lighting, this pendant offers flexibility.
2. Customizable Length: The DALI Lamp LED Linear Slim Pendant can be customized to any length, allowing you to tailor the lighting fixture to the specific dimensions of your space. This ensures a seamless and aesthetically pleasing lighting installation.
3. High-Quality Lighting Performance: The pendant features LM80 LumiLEDs with a choice of CRI 82 or CRI 90 LEDs, providing excellent color rendering and ensuring that objects and spaces are accurately illuminated. The soft and even lighting distribution creates a comfortable and visually appealing environment.
4. Reliable and Branded DALI Driver: The built-in DALI driver is sourced from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic. This ensures reliable performance, compatibility with DALI lighting control systems, and seamless integration for enhanced lighting control.
5. Energy Efficiency and Flicker-Free Operation: The DALI Lamp LED Linear Slim Pendant has a high lumen efficacy of up to 100LM/W, delivering efficient lighting while reducing energy consumption. With a power factor greater than 0.9 and flicker-free operation, it provides a comfortable and visually pleasing lighting experience.
6. Durable Construction: The pendant features an aluminum body and PC diffuser, providing both durability and a sleek aesthetic. The materials used are resistant to UV damage, ensuring that the fixture remains free from yellowing over time.
7. Easy Installation and Connection: The pendant can be easily installed as a wall-mounted or pendant light, offering flexibility in placement. It also features easy connection and linkability, simplifying the installation process and allowing for a seamless lighting setup.
8. Compatibility with DALI Lighting Control Systems: The DALI Lamp LED Linear Slim Pendant is designed to work well with DALI lighting control systems. This enables advanced lighting management, including dimming, scheduling, and scene control, for enhanced energy efficiency and customization.
9. Long Lifespan and Safety: With a lifespan of 50,000 hours, the pendant ensures long-lasting performance and minimal maintenance. It also meets safety standards with electric Class I certification and offers optional compatibility with emergency kits for added functionality.

Q1: What are the available color temperature options for the DALI Lamp LED Linear Slim Pendant?
A1: The pendant offers a range of color temperature options, including 3000K, 4000K, 5000K, 6000K, RGB, or RGBW, allowing you to customize the lighting ambiance according to your preference.

Q2: Can the length of the pendant be customized to fit specific spaces?
A2: Yes, the DALI Lamp LED Linear Slim Pendant can be custom-made to any length, ensuring a perfect fit for your specific installation requirements.

Q3: What is the lifespan of the pendant?
A3: The pendant has an impressive lifespan of 50,000 hours, providing long-lasting performance and reducing the need for frequent replacements.

Q4: Does the pendant come with a built-in DALI driver?
A4: Yes, the pendant features a built-in DALI driver sourced from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic, ensuring reliable performance and compatibility with DALI lighting control systems.

Q5: Is the pendant flicker-free?
A5: Yes, the DALI Lamp LED Linear Slim Pendant operates without flickering, providing a comfortable and visually pleasing lighting experience.

Q6: What materials are used for the pendant’s construction?
A6: The pendant features an aluminum body and a PC diffuser, combining durability with a sleek aesthetic.

Q7: Can the pendant be installed as a pendant light or wall-mounted?
A7: Yes, the pendant offers the flexibility to be installed as either a pendant light or a wall-mounted fixture, depending on your preference and the requirements of your space.

Q8: Is the DALI Lamp LED Linear Slim Pendant compatible with emergency kits?
A8: Yes, the pendant can be equipped to work with optional emergency kits, providing added functionality and ensuring continued illumination during power outages or emergencies.

1. Offices: The pendant can provide efficient and comfortable lighting in office spaces, promoting productivity and creating a well-lit working environment.
2. Retail Stores: With its customizable length and high-quality lighting performance, the pendant is ideal for illuminating retail spaces, showcasing products, and enhancing the overall shopping experience.
3. Hospitality: Whether it’s hotels, restaurants, or bars, the pendant can create a welcoming and visually appealing atmosphere, adding a touch of elegance to the space.
4. Educational Institutions: Schools, colleges, and universities can benefit from the pendant’s reliable lighting performance, ensuring optimal visibility for students and educators in classrooms, libraries, and common areas.
5. Healthcare Facilities: The pendant’s flicker-free operation and high color rendering make it suitable for healthcare environments such as hospitals, clinics, and medical offices, where accurate lighting is crucial.
6. Residential Spaces: The pendant’s sleek design and customizable length make it a stylish lighting option for residential applications, including living rooms, dining areas, and kitchens.
7. Exhibition Halls and Museums: The pendant’s adjustable color temperature options and excellent lighting quality make it ideal for illuminating exhibition spaces, artwork, and displays, creating an immersive and captivating experience.
8. Showrooms: Whether it’s automotive showrooms or product showcases, the pendant’s high-quality lighting output can highlight the features and details of displayed items, enhancing their visual appeal.
9. Entertainment Venues: The pendant can be used in theaters, concert halls, and event spaces to provide optimal lighting for performances and events, creating a captivating and immersive atmosphere.
10. Commercial Spaces: From conference rooms to lobbies and corridors, the pendant’s versatility and easy installation make it suitable for a wide range of commercial applications.

Specifications
Model Wattage Lumen Output Dimensions
ILED-LL-100B 7535 DALI 30W 3000LM (100LM / W) L1000xW35xH75mm
ILED-LL-200B 7535 DALI 60W 6000LM (100LM / W) L2000xW35xH75mm



Input 220-240VAC/110-277VAC LED Source LumiLEDs LM80
Wattage 30W/60W PF >0.9
Color Temperature 2800-6500K/RGB/RGBW Lumen Effective 90-100LM/W
Materials Aluminum CRI >82 or 90
Electrical Classification Class I IP Rating IP42
Beam Angel 120° Body Color White/Black
Warranty 3-5 years Certifications SAA CE ROHS

Send Your Inquiry

Description
DALI Lamp LED Linear Slim Pendant, model ILED-LL-B 7535 DALI, a versatile lighting solution that combines style and functionality. With a wide range of CCT options including 3000K, 4000K, 5000K, 6000K, RGB, or RGBW, it offers flexibility to create the desired ambiance. The input voltage ranges from 220-240VAC to 110-277VAC, accommodating different power systems. Available in two standard sizes, 1000x75x35mm and 2000x75x35mm, this pendant light can also be customized to any length, ensuring a perfect fit for any space. Equipped with LM80 LumiLEDs with a choice of CRI 82 or CRI 90 LEDs, the DALI Lamp LED Linear Slim Pendant delivers high-quality lighting with soft and even illumination. The built-in DALI driver is sourced from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic, ensuring reliable performance and compatibility with DALI lighting control systems. With a power factor greater than 0.9 and flicker-free operation, it provides a comfortable and visually appealing lighting experience. Constructed with an aluminum body and PC diffuser, this pendant light is not only durable but also offers anti-UV properties, preventing yellowing over time. It can be easily installed as a wall-mounted or pendant light, providing flexibility in placement. With electric Class I certification, it meets safety standards, and it can also work with emergency kits for added functionality. With a long lifespan of 50,000 hours and a wide beam angle of 120°, the DALI Lamp LED Linear Slim Pendant ensures reliable and efficient lighting for extended periods. It has an IP42 rating for protection against dust and IK06 rating for impact resistance. Easy connection and linkability make installation hassle-free, while its compatibility with DALI lighting control systems allows for seamless integration. Experience superior lighting performance with the DALI Lamp LED Linear Slim Pendant, a versatile and reliable lighting solution for various applications.
Why choose us?

1. Versatile CCT Options: With a wide range of color temperature options, including 3000K, 4000K, 5000K, 6000K, RGB, or RGBW, you can create the desired ambiance and lighting effect for your space. Whether you need warm, cool, or customizable colored lighting, this pendant offers flexibility.
2. Customizable Length: The DALI Lamp LED Linear Slim Pendant can be customized to any length, allowing you to tailor the lighting fixture to the specific dimensions of your space. This ensures a seamless and aesthetically pleasing lighting installation.
3. High-Quality Lighting Performance: The pendant features LM80 LumiLEDs with a choice of CRI 82 or CRI 90 LEDs, providing excellent color rendering and ensuring that objects and spaces are accurately illuminated. The soft and even lighting distribution creates a comfortable and visually appealing environment.
4. Reliable and Branded DALI Driver: The built-in DALI driver is sourced from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic. This ensures reliable performance, compatibility with DALI lighting control systems, and seamless integration for enhanced lighting control.
5. Energy Efficiency and Flicker-Free Operation: The DALI Lamp LED Linear Slim Pendant has a high lumen efficacy of up to 100LM/W, delivering efficient lighting while reducing energy consumption. With a power factor greater than 0.9 and flicker-free operation, it provides a comfortable and visually pleasing lighting experience.
6. Durable Construction: The pendant features an aluminum body and PC diffuser, providing both durability and a sleek aesthetic. The materials used are resistant to UV damage, ensuring that the fixture remains free from yellowing over time.
7. Easy Installation and Connection: The pendant can be easily installed as a wall-mounted or pendant light, offering flexibility in placement. It also features easy connection and linkability, simplifying the installation process and allowing for a seamless lighting setup.
8. Compatibility with DALI Lighting Control Systems: The DALI Lamp LED Linear Slim Pendant is designed to work well with DALI lighting control systems. This enables advanced lighting management, including dimming, scheduling, and scene control, for enhanced energy efficiency and customization.
9. Long Lifespan and Safety: With a lifespan of 50,000 hours, the pendant ensures long-lasting performance and minimal maintenance. It also meets safety standards with electric Class I certification and offers optional compatibility with emergency kits for added functionality.

Frequently Asked Questions

Q1: What are the available color temperature options for the DALI Lamp LED Linear Slim Pendant?
A1: The pendant offers a range of color temperature options, including 3000K, 4000K, 5000K, 6000K, RGB, or RGBW, allowing you to customize the lighting ambiance according to your preference.

Q2: Can the length of the pendant be customized to fit specific spaces?
A2: Yes, the DALI Lamp LED Linear Slim Pendant can be custom-made to any length, ensuring a perfect fit for your specific installation requirements.

Q3: What is the lifespan of the pendant?
A3: The pendant has an impressive lifespan of 50,000 hours, providing long-lasting performance and reducing the need for frequent replacements.

Q4: Does the pendant come with a built-in DALI driver?
A4: Yes, the pendant features a built-in DALI driver sourced from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic, ensuring reliable performance and compatibility with DALI lighting control systems.

Q5: Is the pendant flicker-free?
A5: Yes, the DALI Lamp LED Linear Slim Pendant operates without flickering, providing a comfortable and visually pleasing lighting experience.

Q6: What materials are used for the pendant’s construction?
A6: The pendant features an aluminum body and a PC diffuser, combining durability with a sleek aesthetic.

Q7: Can the pendant be installed as a pendant light or wall-mounted?
A7: Yes, the pendant offers the flexibility to be installed as either a pendant light or a wall-mounted fixture, depending on your preference and the requirements of your space.

Q8: Is the DALI Lamp LED Linear Slim Pendant compatible with emergency kits?
A8: Yes, the pendant can be equipped to work with optional emergency kits, providing added functionality and ensuring continued illumination during power outages or emergencies.

Applications

1. Offices: The pendant can provide efficient and comfortable lighting in office spaces, promoting productivity and creating a well-lit working environment.
2. Retail Stores: With its customizable length and high-quality lighting performance, the pendant is ideal for illuminating retail spaces, showcasing products, and enhancing the overall shopping experience.
3. Hospitality: Whether it’s hotels, restaurants, or bars, the pendant can create a welcoming and visually appealing atmosphere, adding a touch of elegance to the space.
4. Educational Institutions: Schools, colleges, and universities can benefit from the pendant’s reliable lighting performance, ensuring optimal visibility for students and educators in classrooms, libraries, and common areas.
5. Healthcare Facilities: The pendant’s flicker-free operation and high color rendering make it suitable for healthcare environments such as hospitals, clinics, and medical offices, where accurate lighting is crucial.
6. Residential Spaces: The pendant’s sleek design and customizable length make it a stylish lighting option for residential applications, including living rooms, dining areas, and kitchens.
7. Exhibition Halls and Museums: The pendant’s adjustable color temperature options and excellent lighting quality make it ideal for illuminating exhibition spaces, artwork, and displays, creating an immersive and captivating experience.
8. Showrooms: Whether it’s automotive showrooms or product showcases, the pendant’s high-quality lighting output can highlight the features and details of displayed items, enhancing their visual appeal.
9. Entertainment Venues: The pendant can be used in theaters, concert halls, and event spaces to provide optimal lighting for performances and events, creating a captivating and immersive atmosphere.
10. Commercial Spaces: From conference rooms to lobbies and corridors, the pendant’s versatility and easy installation make it suitable for a wide range of commercial applications.
