DALI LED Panel Light Dimmable 1200x300mm
DALI LED Panel Light Dimmable in the size of 1200x300mm and 40W is a highly efficient lighting solution. Featuring an aluminum body and a PMMA diffuser, it offers durability and even light distribution. With an impressive lumen efficacy of 110LM/W and LM80 LED chips, it provides excellent illumination. The panel ensures visual clarity with a CRI greater than 80 or 90 and is free from blue light hazards and flickering. Equipped with a branded DALI driver from BOKE, Tridonic, Osram, VS, or TCI, it guarantees reliable performance. Optional features include compatibility with emergency kits or motion sensors. It seamlessly integrates with DALI Lighting Systems and allows for easy connection. The panel can be recessed, surface-mounted, or suspended, offering versatile installation options. With a slim profile of 11mm, it maintains an anti-UV and non-yellowing performance. UGR options of less than 22 or less than 19 ensure reduced glare for enhanced visual comfort.
Highlights
→ DALI2
→ High Lumen 100-110LM/W
→ Uniform Soft Lighting,No Yellowish
→ Super Slim 11mm
→ Emergency or Sensor for Option
| Input | 220-240VAC/110-277VAC | LED Source | LM80 LEDs |
| Wattage | 40W | Size | 1195*295*11mm |
| Materials | Aluminum | PF | >0.9 |
| Lumen Output | 4000LM | Lumen Effective | 100-110LM/W |
| Color Temperature | 2800-6500K | CRI | >80 |
| UGR | 22(<19 for option) | IP Rating | IP42 |
| Beam Angel | 120° | Body Color | White/Silver |
| Warranty | 3-5 years | Certifications | CE ROHS |
Send Your Inquiry

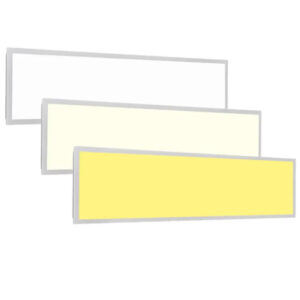

1. Versatility: The panel offers a wide range of color temperature options, including 3000K, 4000K, 5000K, 6000K, RGB, or RGBW. This flexibility allows you to create the desired lighting ambiance for different applications and settings.
2. High-Quality Illumination: With LM80 CRI 80 or CRI 90 LEDs, the panel ensures excellent color rendering and visual clarity. It provides soft and even lighting, enhancing visibility and creating a pleasant environment.
3. Reliable Performance: The external DALI driver from renowned brands such as BOKE, VS, TCI, Osram, or Tridonic guarantees reliable and consistent performance. It ensures stable operation, flicker-free lighting, and eliminates the risk of blue light hazards.
4. Energy Efficiency: With a lumen efficacy of up to 110LM/W and a power factor greater than 0.9, the panel offers energy-efficient lighting solutions. It helps to reduce energy consumption and lower electricity costs.
5. Durability and Longevity: The panel features an aluminum body and a PMMA diffuser, providing durability and even light distribution. It has a long lifespan of 50,000 hours, reducing maintenance needs and ensuring long-term performance.
6. Easy Installation and Integration: The panel can be easily installed through surface mounting, wall mounting, or pendant mounting, offering flexibility for various installation requirements. It seamlessly integrates with DALI Lighting Control Systems, enabling efficient and centralized management of lighting.
7. Additional Features: The panel is equipped with anti-UV and non-yellowing properties, maintaining its performance and aesthetics over time. It can also be paired with emergency kits or motion sensors to enhance functionality and adapt to specific needs.
8. Safety and Compliance: The panel has an electric Class II rating, providing an extra layer of safety. It also meets IP42 and IK06 standards for dust protection and impact resistance, respectively.
Q1: What are the available color temperature options for the DALI LED Panel Light Dimmable 1200x300mm?
A1: The panel is available in color temperature options of 3000K, 4000K, 5000K, 6000K, RGB, or RGBW.
Q2: Can the panel handle different input voltages?
A2: Yes, the panel can handle input voltages ranging from 220-240VAC or 110-277VAC.
Q3: What is the power consumption of the panel?
A3: The DALI LED Panel Light Dimmable 1200x300mm has a power consumption of 40W.
Q4: What are the dimensions of the panel?
A4: The panel’s dimensions are 1195x295x11mm (length x width x thickness).
Q5: What type of LEDs are used in the panel?
A5: The panel utilizes LM80 CRI 80 or CRI 90 LEDs, ensuring high-quality illumination.
Q6: Which brands’ DALI drivers are external of the panel?
A6: The panel is equipped with DALI drivers from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic.
Q7: Does the panel emit blue light hazards?
A7: No, the panel is designed to be free from blue light hazards, ensuring visual comfort.
Q8: Does the panel produce flickering light?
A8: No, the panel is flicker-free, providing a stable and comfortable lighting experience.
Q9: What materials are used in the construction of the panel?
A9: The panel features an aluminum body and a PMMA diffuser, ensuring durability and even light distribution.
Q10: What is the lumen efficacy of the panel?
A10: The panel has a lumen efficacy of up to 110LM/W, delivering efficient and effective lighting.
Q11: Can the panel be installed in different ways?
A11: Yes, the panel can be recessed, surface-mounted, or suspended, offering flexible installation options.
Q12: Is the panel resistant to UV and yellowing?
A12: Yes, the panel has anti-UV properties and is designed to resist yellowing over time.
Q13: What is the IP rating of the panel?
A13: The panel has an IP42 rating, providing protection against dust and solid objects.
Q14: Can the panel be integrated with emergency kits or motion sensors?
A14: Yes, the panel can work with optional emergency kits or motion sensors for enhanced functionality.
Q15: Does the panel work well with DALI Lighting Control Systems?
A15: Yes, the panel is designed to work seamlessly with DALI Lighting Control Systems, allowing for efficient management and control of lighting.
分享
1. Offices: The panel provides uniform and glare-free lighting, making it suitable for office spaces. It creates a comfortable working environment, enhances visibility, and promotes productivity.
2. Commercial Spaces: Whether it’s retail stores, showrooms, or hospitality venues, the panel’s versatile color temperature options and high-quality illumination make it ideal for highlighting products and creating an inviting ambiance.
3. Educational Institutions: Schools, colleges, and universities can benefit from the panel’s flicker-free and visually comfortable lighting. It helps create an optimal learning environment for students and reduces eye strain.
4. Healthcare Facilities: The panel’s high color rendering index (CRI) ensures accurate color representation, which is essential in medical settings. It can be used in hospitals, clinics, and examination rooms to provide clear and reliable lighting.
5. Conference Rooms: The panel’s even and soft lighting is suitable for conference rooms and meeting spaces. It ensures visual clarity during presentations and discussions, creating an engaging environment.
6. Residential Spaces: The panel can be used in homes, apartments, or condominiums, providing energy-efficient and aesthetically pleasing lighting solutions. It can be installed in living rooms, bedrooms, kitchens, or any area where versatile and reliable lighting is desired.
7. Public Buildings: The panel’s durability, longevity, and easy integration with DALI Lighting Control Systems make it suitable for public buildings such as libraries, museums, galleries, and government offices.
8. Hospitality: Hotels, restaurants, and bars can benefit from the panel’s ability to create different lighting atmospheres, thanks to its color temperature options. It enhances the overall ambiance and can be used for general lighting or accent lighting.
| Input | 220-240VAC/110-277VAC | LED Source | LM80 LEDs |
| Wattage | 40W | Size | 1195*295*11mm |
| Materials | Aluminum | PF | >0.9 |
| Lumen Output | 4000LM | Lumen Effective | 100-110LM/W |
| Color Temperature | 2800-6500K | CRI | >80 |
| UGR | 22(<19 for option) | IP Rating | IP42 |
| Beam Angel | 120° | Body Color | White/Silver |
| Warranty | 3-5 years | Certifications | CE ROHS |
Send Your Inquiry
1. Versatility: The panel offers a wide range of color temperature options, including 3000K, 4000K, 5000K, 6000K, RGB, or RGBW. This flexibility allows you to create the desired lighting ambiance for different applications and settings.
2. High-Quality Illumination: With LM80 CRI 80 or CRI 90 LEDs, the panel ensures excellent color rendering and visual clarity. It provides soft and even lighting, enhancing visibility and creating a pleasant environment.
3. Reliable Performance: The external DALI driver from renowned brands such as BOKE, VS, TCI, Osram, or Tridonic guarantees reliable and consistent performance. It ensures stable operation, flicker-free lighting, and eliminates the risk of blue light hazards.
4. Energy Efficiency: With a lumen efficacy of up to 110LM/W and a power factor greater than 0.9, the panel offers energy-efficient lighting solutions. It helps to reduce energy consumption and lower electricity costs.
5. Durability and Longevity: The panel features an aluminum body and a PMMA diffuser, providing durability and even light distribution. It has a long lifespan of 50,000 hours, reducing maintenance needs and ensuring long-term performance.
6. Easy Installation and Integration: The panel can be easily installed through surface mounting, wall mounting, or pendant mounting, offering flexibility for various installation requirements. It seamlessly integrates with DALI Lighting Control Systems, enabling efficient and centralized management of lighting.
7. Additional Features: The panel is equipped with anti-UV and non-yellowing properties, maintaining its performance and aesthetics over time. It can also be paired with emergency kits or motion sensors to enhance functionality and adapt to specific needs.
8. Safety and Compliance: The panel has an electric Class II rating, providing an extra layer of safety. It also meets IP42 and IK06 standards for dust protection and impact resistance, respectively.
Q1: What are the available color temperature options for the DALI LED Panel Light Dimmable 1200x300mm?
A1: The panel is available in color temperature options of 3000K, 4000K, 5000K, 6000K, RGB, or RGBW.
Q2: Can the panel handle different input voltages?
A2: Yes, the panel can handle input voltages ranging from 220-240VAC or 110-277VAC.
Q3: What is the power consumption of the panel?
A3: The DALI LED Panel Light Dimmable 1200x300mm has a power consumption of 40W.
Q4: What are the dimensions of the panel?
A4: The panel’s dimensions are 1195x295x11mm (length x width x thickness).
Q5: What type of LEDs are used in the panel?
A5: The panel utilizes LM80 CRI 80 or CRI 90 LEDs, ensuring high-quality illumination.
Q6: Which brands’ DALI drivers are external of the panel?
A6: The panel is equipped with DALI drivers from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic.
Q7: Does the panel emit blue light hazards?
A7: No, the panel is designed to be free from blue light hazards, ensuring visual comfort.
Q8: Does the panel produce flickering light?
A8: No, the panel is flicker-free, providing a stable and comfortable lighting experience.
Q9: What materials are used in the construction of the panel?
A9: The panel features an aluminum body and a PMMA diffuser, ensuring durability and even light distribution.
Q10: What is the lumen efficacy of the panel?
A10: The panel has a lumen efficacy of up to 110LM/W, delivering efficient and effective lighting.
Q11: Can the panel be installed in different ways?
A11: Yes, the panel can be recessed, surface-mounted, or suspended, offering flexible installation options.
Q12: Is the panel resistant to UV and yellowing?
A12: Yes, the panel has anti-UV properties and is designed to resist yellowing over time.
Q13: What is the IP rating of the panel?
A13: The panel has an IP42 rating, providing protection against dust and solid objects.
Q14: Can the panel be integrated with emergency kits or motion sensors?
A14: Yes, the panel can work with optional emergency kits or motion sensors for enhanced functionality.
Q15: Does the panel work well with DALI Lighting Control Systems?
A15: Yes, the panel is designed to work seamlessly with DALI Lighting Control Systems, allowing for efficient management and control of lighting.
分享
1. Offices: The panel provides uniform and glare-free lighting, making it suitable for office spaces. It creates a comfortable working environment, enhances visibility, and promotes productivity.
2. Commercial Spaces: Whether it’s retail stores, showrooms, or hospitality venues, the panel’s versatile color temperature options and high-quality illumination make it ideal for highlighting products and creating an inviting ambiance.
3. Educational Institutions: Schools, colleges, and universities can benefit from the panel’s flicker-free and visually comfortable lighting. It helps create an optimal learning environment for students and reduces eye strain.
4. Healthcare Facilities: The panel’s high color rendering index (CRI) ensures accurate color representation, which is essential in medical settings. It can be used in hospitals, clinics, and examination rooms to provide clear and reliable lighting.
5. Conference Rooms: The panel’s even and soft lighting is suitable for conference rooms and meeting spaces. It ensures visual clarity during presentations and discussions, creating an engaging environment.
6. Residential Spaces: The panel can be used in homes, apartments, or condominiums, providing energy-efficient and aesthetically pleasing lighting solutions. It can be installed in living rooms, bedrooms, kitchens, or any area where versatile and reliable lighting is desired.
7. Public Buildings: The panel’s durability, longevity, and easy integration with DALI Lighting Control Systems make it suitable for public buildings such as libraries, museums, galleries, and government offices.
8. Hospitality: Hotels, restaurants, and bars can benefit from the panel’s ability to create different lighting atmospheres, thanks to its color temperature options. It enhances the overall ambiance and can be used for general lighting or accent lighting.
