Your Reliable Automative Lighting Partner in DALI System,Wireless and DMX512

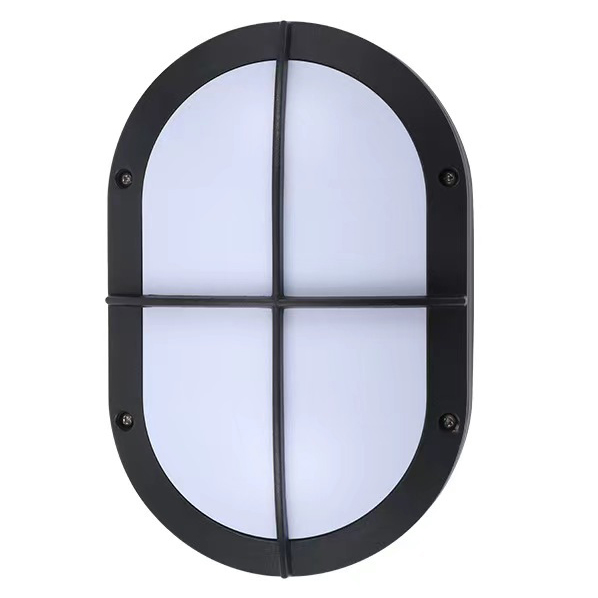

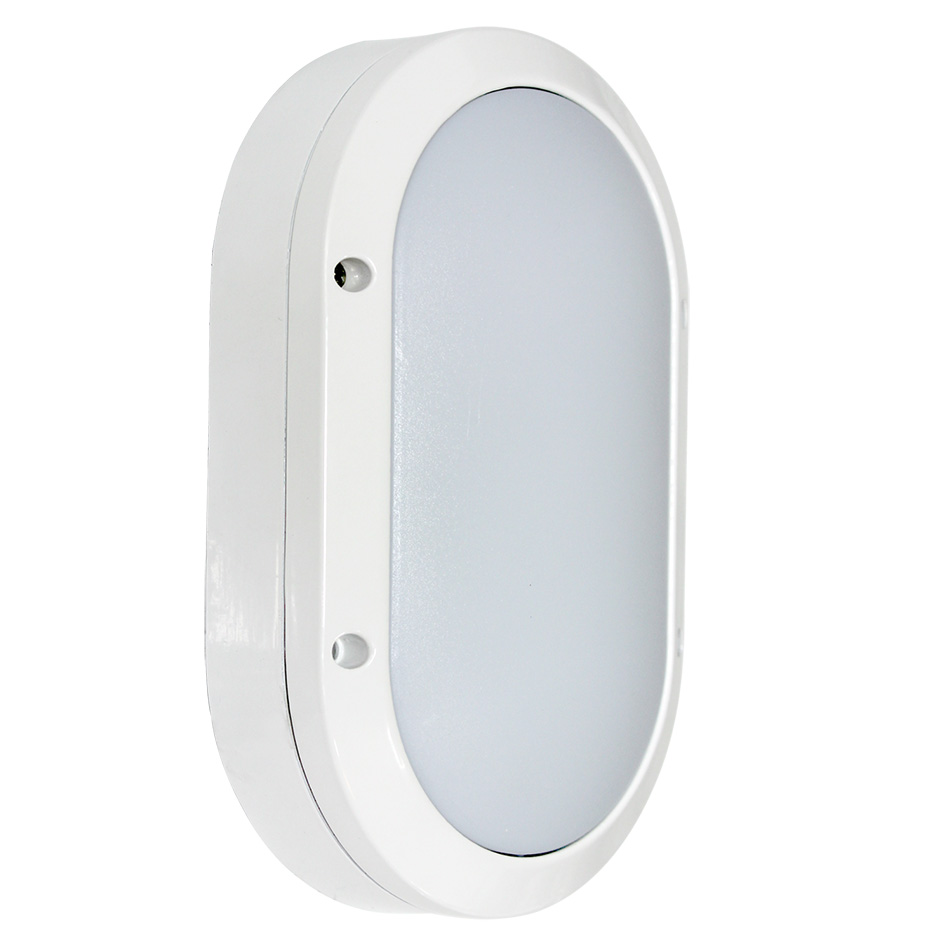

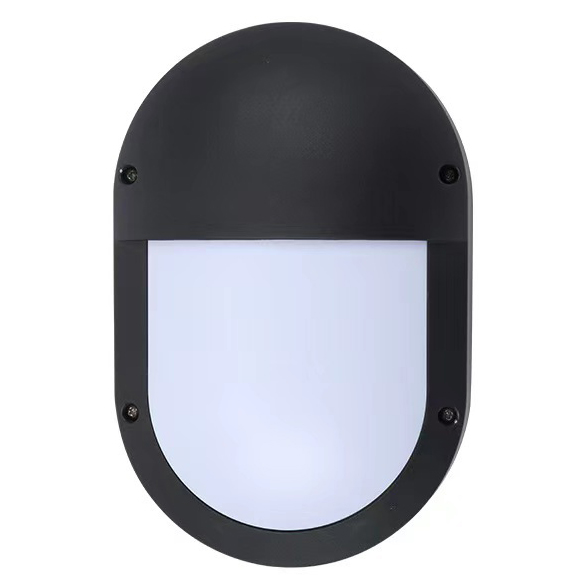

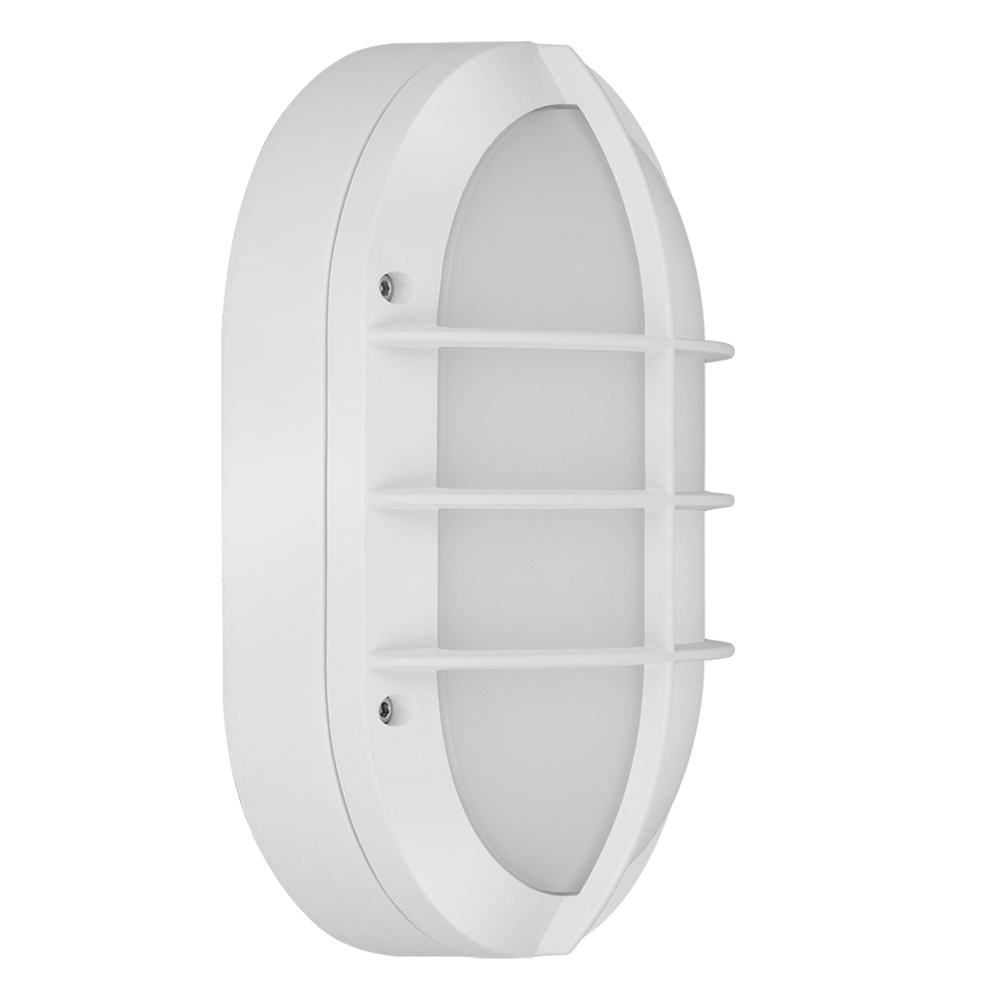

DALI Bulkhead Lamp Oval IP65 Waterproof 280mm

DALI Bulkhead Lamp Oval is a high-performance lighting solution with an IP65 waterproof and IK10 impact-resistant rating. Its robust die-cast aluminum body and PC diffuser ensure durability. With LumiLEDs LED technology, it delivers 110LM/W of high-quality illumination, SDCM 3, and a CRI>82 for accurate color rendering. It is certified as not being a blue light hazard and offers flicker-free operation. Compatible with renowned DALI drivers such as BOKE, Tridonic, Osram, VS, or TCI, it seamlessly integrates into DALI lighting control systems. The face ring offers customization options, including O-ring, eyelid, and crossblade. The DALI Bulkhead Lamp Oval is the perfect choice for reliable and customizable lighting solutions in DALI systems.

Highlights

→ DALI2

→ High Lumen 110LM/W

→ Robust Cast Aluminum Body

→ Anti Salty,IP65,IK10

→ Uniform Soft Lighting

Input 220V~240VAC or 110-277VAC LED Source LumiLEDs LEDs,SDCM 3
Watts 12W/15W Lumen Effective
110LM/W
Size 280x180x90mm DALI Type
DALI2 DT6, DT8 for option
Materials Dia Dast Aluminum+ PC PF >0.9
CCT 2800-7000K CRI >82
Electrical Classification  Class I IP Class  IP65, IK10
Beam angle 120° Body Color White, Black or Gray Painted
Warranty 3-5 years Certification CE&RoHS&SAA,TUV

Send Your Inquiry

DALI Bulkhead Lamp Oval IP65 Waterproof 280mm (Model: ILED-BH-O280 DALI) is a high-quality lighting solution designed for various applications. It offers flexibility with 3CCT switchable options for color temperature. The input voltage ranges from 220-240VAC to 110-277VAC, with power options of 12W or 15W. The lamp’s dimensions are 280x180x90mm, making it suitable for different installation requirements. Equipped with LumiLEDs CRI 82 LEDs and SDCM 3, the lamp ensures accurate color rendering and consistent light output. The built-in DALI driver, available from reputable brands like BOKE, VS, TCI, Osram, or Tridonic, guarantees reliable performance. With a power factor greater than 0.9 and flicker-free operation, it delivers efficient and comfortable lighting. The lamp features a robust die-cast aluminum body and PC diffuser, ensuring durability. It provides up to 110LM/W of soft and even lighting, while being UV-resistant and non-yellowing. The surface-mounted installation makes it easy to set up. With an electric class I rating, IK10 impact resistance, and IP65 waterproof rating, it offers protection and reliability in various environments. The lamp has a long lifespan of 50,000 hours and a wide beam angle of 120°. It is available in base finishes of black, silver gray, or white, with a powder-coated surface. Designed to work seamlessly with DALI LED lighting systems, the DALI Bulkhead Lamp Oval offers a high-quality and versatile lighting solution.

1. Versatility: The lamp offers 3CCT switchable options for color temperature, allowing you to customize the lighting to suit different environments or preferences.

2. Reliable Performance: With a built-in DALI driver from trusted brands like BOKE, VS, TCI, Osram, or Tridonic, you can expect consistent and reliable performance.

3. High Efficiency: The lamp boasts a high efficacy of up to 110LM/W, ensuring efficient energy consumption and cost savings.

4. Durability: Constructed with a robust die-cast aluminum body and PC diffuser, the lamp is designed to withstand demanding environments and provide long-lasting performance.

5. Visual Comfort: The lamp features a high CRI of 82 and SDCM 3, ensuring accurate color rendering and consistent light output for a comfortable and visually appealing illumination.

6. Easy Installation: The surface-mounted installation makes it simple and convenient to set up the lamp in various applications.

7. Long Lifespan: With a rated lifespan of 50,000 hours, the lamp offers extended service life, reducing the need for frequent replacements.

8. Weather Resistance: The IP65 waterproof rating ensures protection against dust and water, making it suitable for both indoor and outdoor use.

9. Design Options: The lamp is available in base finishes of black, silver gray, or white, allowing you to choose the option that best suits your aesthetic preferences.

10. Compatibility: The DALI Bulkhead Lamp Oval is designed to work seamlessly with DALI LED lighting systems, providing easy integration and control options for advanced lighting management.

Q1: What is the IP rating of the DALI Bulkhead Lamp Oval?
A1: The DALI Bulkhead Lamp Oval has an IP65 waterproof rating, ensuring protection against dust and water.

Q2: Can I customize the color temperature of the lamp?
A2: Yes, the lamp offers 3CCT switchable options for color temperature, allowing you to customize the lighting to your preference.

Q3: What is the lifespan of the DALI Bulkhead Lamp Oval?
A3: The lamp has a rated lifespan of 50,000 hours, providing long-lasting performance and reducing the need for frequent replacements.

Q4: Is the lamp compatible with DALI lighting control systems?
A4: Yes, the DALI Bulkhead Lamp Oval is designed to work seamlessly with DALI LED lighting systems, offering easy integration and control options.

Q5: Does the lamp come with a built-in driver?
A5: Yes, the lamp features a built-in quality brand DALI driver from options such as BOKE, VS, TCI, Osram, or Tridonic, ensuring reliable performance.

Q6: What materials are used in the construction of the lamp?
A6: The DALI Bulkhead Lamp Oval features a robust die-cast aluminum body and a PC diffuser, providing durability and protection for long-term use.

1. Commercial Spaces: Offices, retail stores, supermarkets, and hotels can benefit from the reliable and efficient lighting provided by the lamp.

2. Residential Areas: The lamp is suitable for lighting corridors, stairwells, parking garages, and other common areas in residential buildings.

3. Industrial Environments: Factories, warehouses, and manufacturing facilities can rely on the lamp’s durability and high-performance lighting.

4. Outdoor Spaces: The IP65 waterproof rating makes the lamp suitable for outdoor applications such as building exteriors, parking lots, pathways, and gardens.

5. Education Facilities: Schools, colleges, and universities can use the lamp in classrooms, hallways, libraries, and other areas requiring bright and efficient lighting.

6. Healthcare Facilities: Hospitals, clinics, and medical centers can benefit from the lamp’s flicker-free and visually comfortable lighting for patient rooms, hallways, and waiting areas.

DALI Bulkhead Lamp Oval

DALI Bulkhead Lamp Oval

DALI Bulkhead Lamp Oval 6

DALI Bulkhead Lamp Oval

1. Can this DALI Bulkhead Lamp have emergency and motion sensor together?

Yes, it can have emergency and motion sensor together, built-in the luminares.

2. Can we use it in coastal areas?

Yes, we use outdoor quality powder, and use professional coated processes to meet strict paint adhesion testing.

Specifications
Input 220V~240VAC or 110-277VAC LED Source LumiLEDs LEDs,SDCM 3
Watts 12W/15W Lumen Effective
110LM/W
Size 280x180x90mm DALI Type
DALI2 DT6, DT8 for option
Materials Dia Dast Aluminum+ PC PF >0.9
CCT 2800-7000K CRI >82
Electrical Classification  Class I IP Class  IP65, IK10
Beam angle 120° Body Color White, Black or Gray Painted
Warranty 3-5 years Certification CE&RoHS&SAA,TUV

Send Your Inquiry

Description
DALI Bulkhead Lamp Oval IP65 Waterproof 280mm (Model: ILED-BH-O280 DALI) is a high-quality lighting solution designed for various applications. It offers flexibility with 3CCT switchable options for color temperature. The input voltage ranges from 220-240VAC to 110-277VAC, with power options of 12W or 15W. The lamp’s dimensions are 280x180x90mm, making it suitable for different installation requirements. Equipped with LumiLEDs CRI 82 LEDs and SDCM 3, the lamp ensures accurate color rendering and consistent light output. The built-in DALI driver, available from reputable brands like BOKE, VS, TCI, Osram, or Tridonic, guarantees reliable performance. With a power factor greater than 0.9 and flicker-free operation, it delivers efficient and comfortable lighting. The lamp features a robust die-cast aluminum body and PC diffuser, ensuring durability. It provides up to 110LM/W of soft and even lighting, while being UV-resistant and non-yellowing. The surface-mounted installation makes it easy to set up. With an electric class I rating, IK10 impact resistance, and IP65 waterproof rating, it offers protection and reliability in various environments. The lamp has a long lifespan of 50,000 hours and a wide beam angle of 120°. It is available in base finishes of black, silver gray, or white, with a powder-coated surface. Designed to work seamlessly with DALI LED lighting systems, the DALI Bulkhead Lamp Oval offers a high-quality and versatile lighting solution.
Why choose us?

1. Versatility: The lamp offers 3CCT switchable options for color temperature, allowing you to customize the lighting to suit different environments or preferences.

2. Reliable Performance: With a built-in DALI driver from trusted brands like BOKE, VS, TCI, Osram, or Tridonic, you can expect consistent and reliable performance.

3. High Efficiency: The lamp boasts a high efficacy of up to 110LM/W, ensuring efficient energy consumption and cost savings.

4. Durability: Constructed with a robust die-cast aluminum body and PC diffuser, the lamp is designed to withstand demanding environments and provide long-lasting performance.

5. Visual Comfort: The lamp features a high CRI of 82 and SDCM 3, ensuring accurate color rendering and consistent light output for a comfortable and visually appealing illumination.

6. Easy Installation: The surface-mounted installation makes it simple and convenient to set up the lamp in various applications.

7. Long Lifespan: With a rated lifespan of 50,000 hours, the lamp offers extended service life, reducing the need for frequent replacements.

8. Weather Resistance: The IP65 waterproof rating ensures protection against dust and water, making it suitable for both indoor and outdoor use.

9. Design Options: The lamp is available in base finishes of black, silver gray, or white, allowing you to choose the option that best suits your aesthetic preferences.

10. Compatibility: The DALI Bulkhead Lamp Oval is designed to work seamlessly with DALI LED lighting systems, providing easy integration and control options for advanced lighting management.

Frequently Asked Questions

Q1: What is the IP rating of the DALI Bulkhead Lamp Oval?
A1: The DALI Bulkhead Lamp Oval has an IP65 waterproof rating, ensuring protection against dust and water.

Q2: Can I customize the color temperature of the lamp?
A2: Yes, the lamp offers 3CCT switchable options for color temperature, allowing you to customize the lighting to your preference.

Q3: What is the lifespan of the DALI Bulkhead Lamp Oval?
A3: The lamp has a rated lifespan of 50,000 hours, providing long-lasting performance and reducing the need for frequent replacements.

Q4: Is the lamp compatible with DALI lighting control systems?
A4: Yes, the DALI Bulkhead Lamp Oval is designed to work seamlessly with DALI LED lighting systems, offering easy integration and control options.

Q5: Does the lamp come with a built-in driver?
A5: Yes, the lamp features a built-in quality brand DALI driver from options such as BOKE, VS, TCI, Osram, or Tridonic, ensuring reliable performance.

Q6: What materials are used in the construction of the lamp?
A6: The DALI Bulkhead Lamp Oval features a robust die-cast aluminum body and a PC diffuser, providing durability and protection for long-term use.

Applications

1. Commercial Spaces: Offices, retail stores, supermarkets, and hotels can benefit from the reliable and efficient lighting provided by the lamp.

2. Residential Areas: The lamp is suitable for lighting corridors, stairwells, parking garages, and other common areas in residential buildings.

3. Industrial Environments: Factories, warehouses, and manufacturing facilities can rely on the lamp’s durability and high-performance lighting.

4. Outdoor Spaces: The IP65 waterproof rating makes the lamp suitable for outdoor applications such as building exteriors, parking lots, pathways, and gardens.

5. Education Facilities: Schools, colleges, and universities can use the lamp in classrooms, hallways, libraries, and other areas requiring bright and efficient lighting.

6. Healthcare Facilities: Hospitals, clinics, and medical centers can benefit from the lamp’s flicker-free and visually comfortable lighting for patient rooms, hallways, and waiting areas.

DALI Bulkhead Lamp Oval

DALI Bulkhead Lamp Oval

DALI Bulkhead Lamp Oval 6

DALI Bulkhead Lamp Oval

More You're Caring

1. Can this DALI Bulkhead Lamp have emergency and motion sensor together?

Yes, it can have emergency and motion sensor together, built-in the luminares.

2. Can we use it in coastal areas?

Yes, we use outdoor quality powder, and use professional coated processes to meet strict paint adhesion testing.
