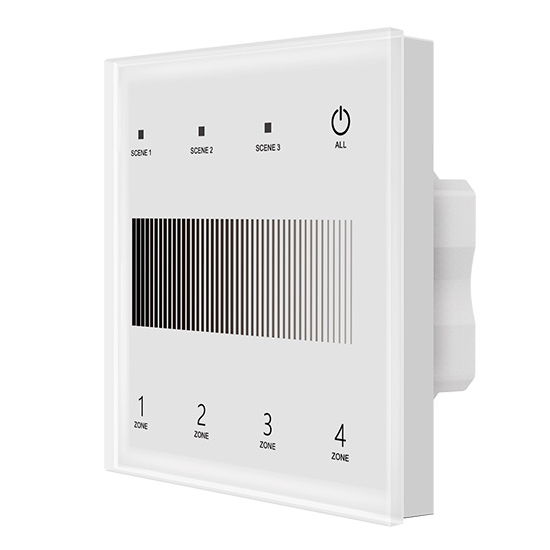

4 Zones Wall Mounted DALI Lighting Control Panel

. For Single Color DT6 Dimming.
.Enable to Select DALI address by Encoding Switch, support unicast, group and broadcast  mode.
.Match with RF 2.4G four zone remote control optional.
.Ultra Sensitive High Strength Glass Touch Panel with Touch Color Slide
.Smooth and accurate color adjustment by touching color slide.
.3 Scenes Memory,Touch Keys with LED Indicator.
.White & Black Glass Panel Available.

Highlights

→ Touch Panel 4 Zones

→ 4 DALI Addresses,DT6

→ Compliance with DALI, DALI2

→ Powered by DALI Bus or 24VDC

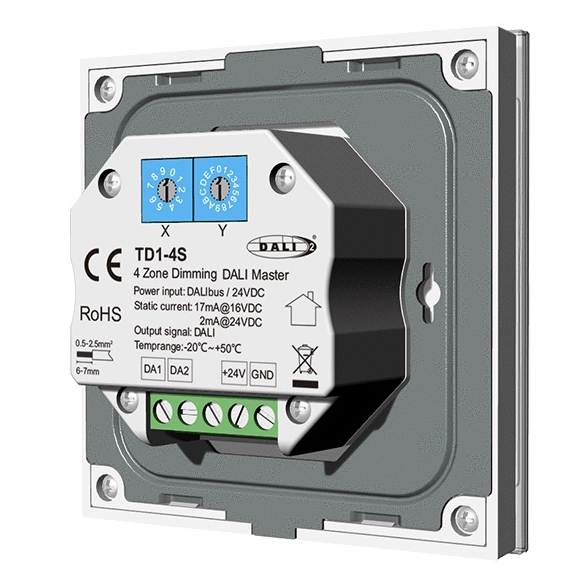

Model NO.:  TD1-4S Brand
FlexCUBE
Dimming Level
256 Levels Dimming Range
0-100%
Support Color
DT6 Single Color Zones
4 Zones
Power Supply
DALI Bus or 24VDC Output Signal
DALI
Static Current
17mA @ 16VDC , 2mA @ 24VDC
Input Singal
Touch Key + RF 2.4GHz
RF Control Distance
10 meters(Barrier -free Space)
Size
L112mm x W112mm x H50mm
Installation
Wall Mounted
Packaging Colorful Box or Skin Packing, any OEM can be supported.
Functions
1. Easy setting DALI Address.
2. 4 zones individualy control or synchronously control.
3. Ultra sensitive high strength glass touch panel.
4. Comply with DALl standard protocol and support
DT6 type.

Send Your Inquiry

Specifications
Model NO.:  TD1-4S Brand
FlexCUBE
Dimming Level
256 Levels Dimming Range
0-100%
Support Color
DT6 Single Color Zones
4 Zones
Power Supply
DALI Bus or 24VDC Output Signal
DALI
Static Current
17mA @ 16VDC , 2mA @ 24VDC
Input Singal
Touch Key + RF 2.4GHz
RF Control Distance
10 meters(Barrier -free Space)
Size
L112mm x W112mm x H50mm
Installation
Wall Mounted
Packaging Colorful Box or Skin Packing, any OEM can be supported.
Functions
1. Easy setting DALI Address.
2. 4 zones individualy control or synchronously control.
3. Ultra sensitive high strength glass touch panel.
4. Comply with DALl standard protocol and support
DT6 type.
