4 Zones Wall Mounted RGBW DALI Control Panel
. For RGBW DT8 Dimming.
.Enable to Select DALI address by Encoding Switch, support unicast, group and broadcast mode.
.Match with RF 2.4G four zone remote control optional.

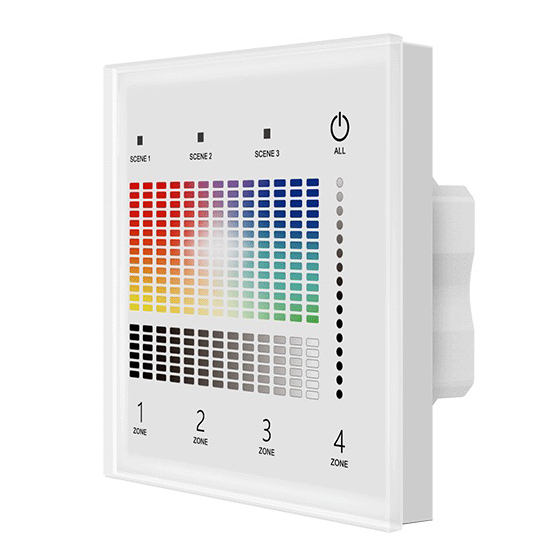

.Ultra Sensitive High Strength Glass Touch Panel with Touch Color Slide
.Smooth and accurate color adjustment by touching color slide.
.3 Scenes Memory,Touch Keys with LED Indicator.
.White & Black Glass Panel Available.
Highlights
→ Touch Panel 4 Zones
→ 4 DALI Addresses,DT8 RGBW
→ Compliance with DALI, DALI2

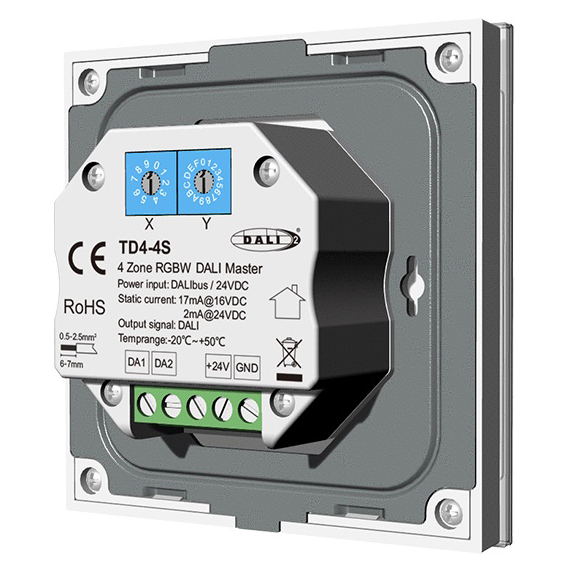

→ Powered by DALI Bus or 24VDC
| Model NO.: | TD4-4S | Brand |
FlexCUBE |
| Dimming Level |
256 Levels | Dimming Range |
0-100% |
| Support Color |
DT8 RGBW | Zones |
4 Zones |
| Power Supply |
DALI Bus or 24VDC | Output Signal |
DALI |
| Static Current |
17mA @ 16VDC , 2mA @ 24VDC | ||
| Input Singal |
Touch Key + RF 2.4GHz | ||
| RF Control Distance |
10 meters(Barrier -free Space) | ||
| Size |
L112mm x W112mm x H50mm | ||
| Installation |
Wall Mounted | ||
| Packaging | Colorful Box or Skin Packing, any OEM can be supported. | ||
| Functions |
1. Easy setting DALI Address. 2. 4 zones individualy control or synchronously control. 3. Ultra sensitive high strength glass touch panel. 4. Comply with DALl standard protocol and support DT8 type. |
||
Send Your Inquiry
| Model NO.: | TD4-4S | Brand |
FlexCUBE |
| Dimming Level |
256 Levels | Dimming Range |
0-100% |
| Support Color |
DT8 RGBW | Zones |
4 Zones |
| Power Supply |
DALI Bus or 24VDC | Output Signal |
DALI |
| Static Current |
17mA @ 16VDC , 2mA @ 24VDC | ||
| Input Singal |
Touch Key + RF 2.4GHz | ||
| RF Control Distance |
10 meters(Barrier -free Space) | ||
| Size |
L112mm x W112mm x H50mm | ||
| Installation |
Wall Mounted | ||
| Packaging | Colorful Box or Skin Packing, any OEM can be supported. | ||
| Functions |
1. Easy setting DALI Address. 2. 4 zones individualy control or synchronously control. 3. Ultra sensitive high strength glass touch panel. 4. Comply with DALl standard protocol and support DT8 type. |
||
Send Your Inquiry
