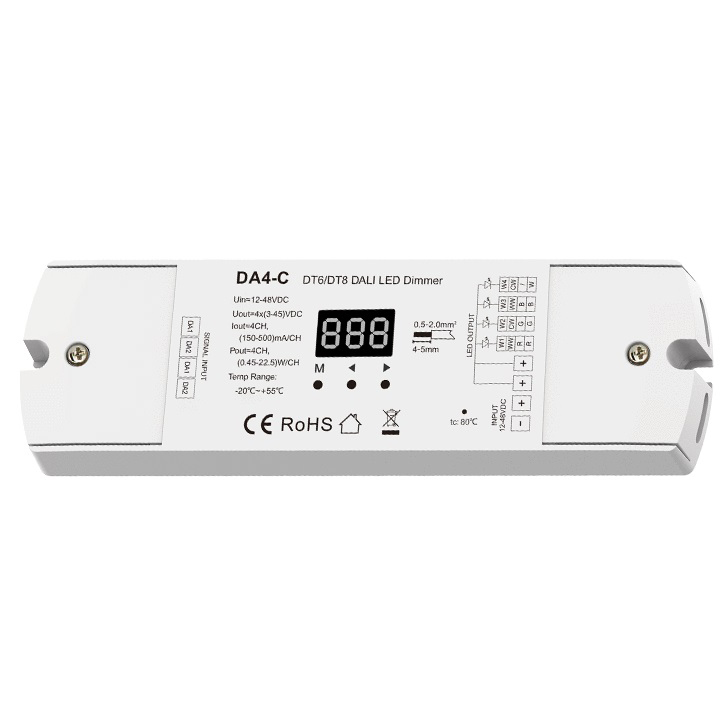

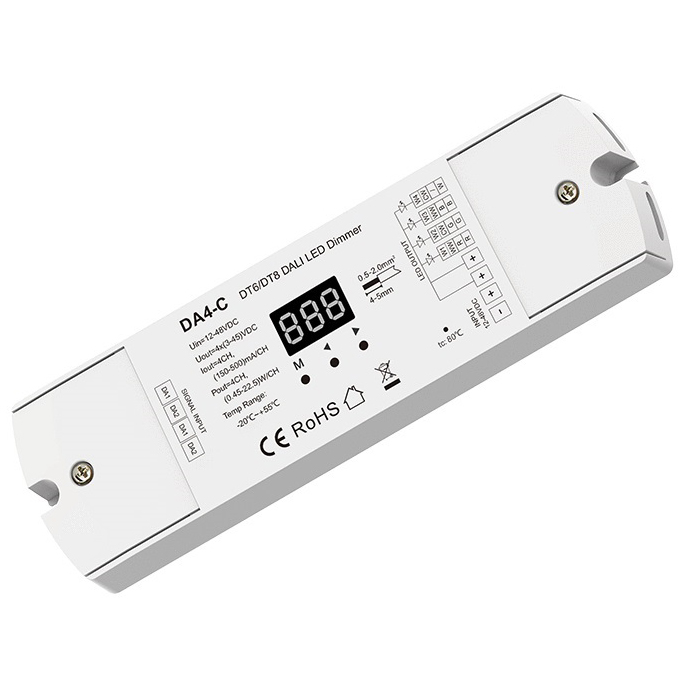

4CH 150-500mA LED DT8 Constant Current DALI Dimmer
1. 4 channel constant current DALI LED Dimmer with digital display 150-500mA per channel
2. DT6 dimming or DT8-TC color temperature or DT8-RGB orDT8-RGBW light type selectable
3. For DT6 dimming, support 1-4 DALI address, 4 channel work separately
4. In accordance with DALI standard protocol lEC 62386-102,IEC 62386207,IEC 62386-209 and in compliance with DALI products from other interational incorporation
5. DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master.
6. PWM digital dimming, standard DALI logarithmic dimming curve
7. PWM frequency 1000/2000/4000/8000/16000Hz selectable
8. Overheat / Short circuit protection, recover automatically
9. With fast selftesting function.
Highlights
→ 4 DALI Address, 4 Channel Output
→ DT6,DT8-TC,DT8-RGB or DT8-RGBW
→ DALI Address Assigned Auto by DALI Master
→ Compliance with DALI, DALI2
→ PWM Digital Dimming
| Model NO.: | DA4-C(150-500mA) | Brand |
FlexCUBE |
| Input Voltage | 12-48VDC | Output Voltage | 4x(3-45)VDC |
| Output Current | 4 Channel , 150-500mA / CH | ||
| Output Power | 4 x(0.45-22.5W) | ||
| Output Type | Constant Current | ||
| Input Signal | DALI | ||
| Dimming Range |
0-100% | ||
| Dimming Curve |
Logarithmic | ||
| PWM Frequency |
4000 Hz(Default) | ||
| Size |
L175mm x W54mm x H27mm | ||
| Packaging | White Box or Colorful Box, any OEM can be supported. | ||
| Functions |
1. 4 channel constant current DALI LED Dimmer with digital display 150-500mA per channel 2. DT6 dimming or DT8-TC color temperature or DT8-RGB orDT8-RGBW light type selectable 3. For DT6 dimming, support 1-4 DALI address, 4 channel work separately 4. In accordance with DALI standard protocol lEC 62386-102,IEC 62386207,IEC 62386-209 and in compliance with DALI products from other interational incorporation 5. DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master. 6. PWM digital dimming, standard DALI logarithmic dimming curve 7. PWM frequency 1000/2000/4000/8000/16000Hz selectable 8. Overheat / Short circuit protection, recover automatically 9. With fast selftesting function. |
||
Send Your Inquiry
| Model NO.: | DA4-C(150-500mA) | Brand |
FlexCUBE |
| Input Voltage | 12-48VDC | Output Voltage | 4x(3-45)VDC |
| Output Current | 4 Channel , 150-500mA / CH | ||
| Output Power | 4 x(0.45-22.5W) | ||
| Output Type | Constant Current | ||
| Input Signal | DALI | ||
| Dimming Range |
0-100% | ||
| Dimming Curve |
Logarithmic | ||
| PWM Frequency |
4000 Hz(Default) | ||
| Size |
L175mm x W54mm x H27mm | ||
| Packaging | White Box or Colorful Box, any OEM can be supported. | ||
| Functions |
1. 4 channel constant current DALI LED Dimmer with digital display 150-500mA per channel 2. DT6 dimming or DT8-TC color temperature or DT8-RGB orDT8-RGBW light type selectable 3. For DT6 dimming, support 1-4 DALI address, 4 channel work separately 4. In accordance with DALI standard protocol lEC 62386-102,IEC 62386207,IEC 62386-209 and in compliance with DALI products from other interational incorporation 5. DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master. 6. PWM digital dimming, standard DALI logarithmic dimming curve 7. PWM frequency 1000/2000/4000/8000/16000Hz selectable 8. Overheat / Short circuit protection, recover automatically 9. With fast selftesting function. |
||
Send Your Inquiry
