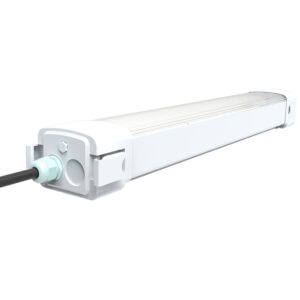

DALI Lighting LED Tri Proof Lock Buckle 20-60W
DALI Lighting LED Tri Proof Lock Buckle is a high-performance luminaire suitable for various environments. It features a robust PC body, PC diffuser, and aluminum heat sink, ensuring durability and efficient heat dissipation. With an impressive luminous efficacy of 120LM/W and LM80 SDCM 3 LumiLEDs LED, it delivers bright and uniform illumination. Available in 20W (600mm), 30W (900mm), 40W (1200mm), and 60W (1500mm) options, it offers flexibility to meet different lighting requirements. With a CRI>82 and no blue light hazard, it provides excellent color rendering and ensures visual comfort. The luminaire is compatible with leading DALI drivers such as BOKE, Tridonic, Osram, VS, or TCI, enabling seamless integration with DALI Lighting Systems. Optional features include an emergency module or motion sensor for added functionality. The lock buckle design allows for easy installation and maintenance, facilitating quick and secure wire connection. With flicker-free operation, the DALI Lighting LED Tri Proof Lock Buckle ensures stable and comfortable lighting performance.
Highlights
→ DALI2
→ High Lumen 120LM/W
→ Buckle Lock, Easy Connection
→ LumiLEDs SDCM 3
→ IP65, IK08
| Model | Wattage | Lumen Output | Dimensions |
| ILED-TRP-60A 2 DALI | 20W | 2200LM (110LM / W) | 600x84x69mm |
| ILED-TRP-120A 2 DALI | 40W | 4400LM (110LM / W) | 1200x84x69mm |
| ILED-TRP-150A 2 DALI | 60W | 6600LM (110LM / W) | 1500x84x69mm |
| Input | 220V~240VAC 50/60Hz | LED Source | LM80 LumiLEDs LEDs |
| Materials | PC Body, Aluminium Heat Sink and PC Diffuser | PF | >0.9 |
| CCT | 2800-7000K | CRI | >80 |
| Electrical Classification | Â Class II | IP Class | Â IP65 |
| Beam angle | 120° | Body Color | White Painted or Silver |
| Warranty | 3~5 years | Certification | CE&RoHS&SAA,TUV |
Send Your Inquiry
1. High-Quality Lighting Performance: The luminaire features LM80 SDCM 3 LumiLEDs CRI 82 LEDs, ensuring excellent color rendering and consistency in lighting output. With a lumen efficacy of up to 120LM/W, it delivers bright and efficient lighting with a soft and even distribution. This provides optimal visual comfort and eliminates harsh shadows.
2. Energy Efficiency: The luminaire offers a power factor greater than 0.9, ensuring efficient power usage. Coupled with its high lumen efficacy, it provides energy-saving benefits, reducing electricity consumption and lowering utility costs.
3. Versatility in Lighting Options: With a choice of color temperatures (CCT) including 3000K, 4000K, 5000K, or 6000K, you have the flexibility to create the desired lighting ambiance for your space. This allows you to tailor the lighting to suit specific preferences or functional requirements.
4. Durable Construction: The luminaire is constructed with a pure aluminum heat sink, PC body, and PC diffuser. This combination of materials ensures optimal heat dissipation, durability, and efficient light diffusion. It is designed to withstand challenging environments and resist UV radiation, preventing yellowing and maintaining long-term color stability.
5. Easy Installation and Maintenance: The lock buckle design of the luminaire makes it incredibly easy to open and connect wires. This simplifies the installation process, saving time and effort. Additionally, the luminaire has a long lifespan of 50,000 hours, reducing the need for frequent maintenance and replacement.
6. Compatibility and Control: The DALI Lighting LED Tri Proof Lock Buckle is designed to work seamlessly with DALI Lighting Control Systems. This integration enables efficient and intelligent lighting control, allowing for customized lighting scenes, scheduling, and energy management. It can also be combined with emergency kits or sensors, providing additional functionality and adaptability.
7. Robust Protection: The luminaire has an IP65 rating, making it resistant to dust and water. This ensures its suitability for various indoor and outdoor environments, including areas prone to moisture or dust accumulation. Additionally, the IK08 rating provides robust protection against impacts, enhancing its durability and longevity.
8. Linkable Design: The luminaire can be linkable, allowing for a seamless and continuous lighting installation. This feature is particularly useful for large spaces or areas where uniform lighting coverage is desired.
Q1: What is the power range available for the DALI Lighting LED Tri Proof Lock Buckle?
A1: The power range available for this luminaire is 20W (600mm), 30W (900mm), 40W (1200mm), and 60W (1500mm).
Q2: Can I choose the color temperature for the light?
A2: Yes, you have the option to select the color temperature (CCT) from 3000K, 4000K, 5000K, or 6000K.
Q3: What is the lifespan of the DALI Lighting LED Tri Proof Lock Buckle?
A3: The luminaire has a lifespan of 50,000 hours, providing long-lasting performance and reducing maintenance costs.
Q4: Is the DALI Lighting LED Tri Proof Lock Buckle compatible with DALI Lighting Control Systems?
A4: Yes, this luminaire is designed to work well with DALI Lighting Control Systems, enabling efficient and intelligent lighting control.

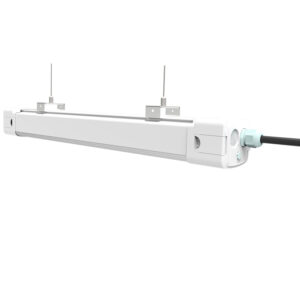

Q5: Can the luminaire be installed as a surface-mounted or pendant fixture?
A5: Yes, the DALI Lighting LED Tri Proof Lock Buckle can be installed as either a surface-mounted or pendant fixture, offering flexibility in installation options.
Q6: What materials are used in the construction of this luminaire?
A6: The luminaire features a pure aluminum heat sink, PC body, and PC diffuser, ensuring optimal thermal management, durability, and efficient light diffusion.
Q7: Does the luminaire come with a built-in driver?
A7: Yes, the luminaire is equipped with a built-in quality brand DALI driver from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic.
Q8: Does the DALI Lighting LED Tri Proof Lock Buckle support emergency kits or sensors?
A8: Yes, this luminaire can work with emergency kits or sensors, providing additional functionality and adaptability based on specific requirements.
Q9: What is the ingress protection rating of the luminaire?
A9: The DALI Lighting LED Tri Proof Lock Buckle has an IP65 rating, making it resistant to dust and water, ensuring its suitability for various environments.

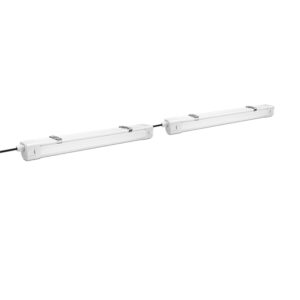

Q10: Can multiple luminaires be connected together?
A10: Yes, the DALI Lighting LED Tri Proof Lock Buckle can be linkable, allowing for a seamless and continuous lighting installation.
1. Industrial Facilities: The luminaire’s robust construction and high ingress protection rating (IP65) make it suitable for industrial environments such as factories, warehouses, production areas, and manufacturing facilities. It can withstand dust, moisture, and even mild impacts, providing durable and reliable lighting solutions.
2. Commercial Spaces: The versatile design of the luminaire makes it ideal for various commercial settings, including retail stores, supermarkets, shopping malls, and offices. Its high-quality lighting performance, with soft and even distribution, enhances visibility and creates a pleasant atmosphere for customers and employees.
3. Parking Areas: The durable and weather-resistant nature of the luminaire, along with its high lumen efficacy, makes it suitable for parking garages, parking lots, and outdoor parking areas. The wide beam angle (120°) ensures efficient coverage and visibility, enhancing safety and security.
4. Sports Facilities: The DALI Lighting LED Tri Proof Lock Buckle can be used in sports facilities such as gyms, fitness centers, and indoor courts. Its high lumen output provides sufficient illumination for various activities, while the durable construction ensures it can withstand the rigors of sports environments.
5. Educational Institutions: Schools, colleges, and universities can benefit from the reliable and energy-efficient lighting provided by this luminaire. It can be used in classrooms, libraries, corridors, and other educational spaces to create an optimal learning environment.
6. Healthcare Facilities: The luminaire’s anti-UV and non-yellowing properties make it suitable for healthcare settings such as hospitals, clinics, and laboratories. The high color rendering index (CRI) ensures accurate color representation, which is crucial in medical examinations and procedures.
7. Food Processing Areas: The luminaire’s IP65 rating and resistance to moisture and dust make it suitable for food processing facilities, commercial kitchens, and restaurants. It provides reliable and hygienic lighting, complying with the necessary regulations and ensuring food safety.
8. Outdoor Applications: The luminaire’s durable construction and IP65 rating make it suitable for outdoor installations such as building facades, walkways, and outdoor recreational areas. Its ability to withstand harsh weather conditions and provide consistent lighting output makes it a reliable choice for outdoor lighting needs.
| Model | Wattage | Lumen Output | Dimensions |
| ILED-TRP-60A 2 DALI | 20W | 2200LM (110LM / W) | 600x84x69mm |
| ILED-TRP-120A 2 DALI | 40W | 4400LM (110LM / W) | 1200x84x69mm |
| ILED-TRP-150A 2 DALI | 60W | 6600LM (110LM / W) | 1500x84x69mm |
| Input | 220V~240VAC 50/60Hz | LED Source | LM80 LumiLEDs LEDs |
| Materials | PC Body, Aluminium Heat Sink and PC Diffuser | PF | >0.9 |
| CCT | 2800-7000K | CRI | >80 |
| Electrical Classification | Â Class II | IP Class | Â IP65 |
| Beam angle | 120° | Body Color | White Painted or Silver |
| Warranty | 3~5 years | Certification | CE&RoHS&SAA,TUV |
Send Your Inquiry
1. High-Quality Lighting Performance: The luminaire features LM80 SDCM 3 LumiLEDs CRI 82 LEDs, ensuring excellent color rendering and consistency in lighting output. With a lumen efficacy of up to 120LM/W, it delivers bright and efficient lighting with a soft and even distribution. This provides optimal visual comfort and eliminates harsh shadows.
2. Energy Efficiency: The luminaire offers a power factor greater than 0.9, ensuring efficient power usage. Coupled with its high lumen efficacy, it provides energy-saving benefits, reducing electricity consumption and lowering utility costs.
3. Versatility in Lighting Options: With a choice of color temperatures (CCT) including 3000K, 4000K, 5000K, or 6000K, you have the flexibility to create the desired lighting ambiance for your space. This allows you to tailor the lighting to suit specific preferences or functional requirements.
4. Durable Construction: The luminaire is constructed with a pure aluminum heat sink, PC body, and PC diffuser. This combination of materials ensures optimal heat dissipation, durability, and efficient light diffusion. It is designed to withstand challenging environments and resist UV radiation, preventing yellowing and maintaining long-term color stability.
5. Easy Installation and Maintenance: The lock buckle design of the luminaire makes it incredibly easy to open and connect wires. This simplifies the installation process, saving time and effort. Additionally, the luminaire has a long lifespan of 50,000 hours, reducing the need for frequent maintenance and replacement.
6. Compatibility and Control: The DALI Lighting LED Tri Proof Lock Buckle is designed to work seamlessly with DALI Lighting Control Systems. This integration enables efficient and intelligent lighting control, allowing for customized lighting scenes, scheduling, and energy management. It can also be combined with emergency kits or sensors, providing additional functionality and adaptability.
7. Robust Protection: The luminaire has an IP65 rating, making it resistant to dust and water. This ensures its suitability for various indoor and outdoor environments, including areas prone to moisture or dust accumulation. Additionally, the IK08 rating provides robust protection against impacts, enhancing its durability and longevity.
8. Linkable Design: The luminaire can be linkable, allowing for a seamless and continuous lighting installation. This feature is particularly useful for large spaces or areas where uniform lighting coverage is desired.
Q1: What is the power range available for the DALI Lighting LED Tri Proof Lock Buckle?
A1: The power range available for this luminaire is 20W (600mm), 30W (900mm), 40W (1200mm), and 60W (1500mm).
Q2: Can I choose the color temperature for the light?
A2: Yes, you have the option to select the color temperature (CCT) from 3000K, 4000K, 5000K, or 6000K.
Q3: What is the lifespan of the DALI Lighting LED Tri Proof Lock Buckle?
A3: The luminaire has a lifespan of 50,000 hours, providing long-lasting performance and reducing maintenance costs.
Q4: Is the DALI Lighting LED Tri Proof Lock Buckle compatible with DALI Lighting Control Systems?
A4: Yes, this luminaire is designed to work well with DALI Lighting Control Systems, enabling efficient and intelligent lighting control.
Q5: Can the luminaire be installed as a surface-mounted or pendant fixture?
A5: Yes, the DALI Lighting LED Tri Proof Lock Buckle can be installed as either a surface-mounted or pendant fixture, offering flexibility in installation options.
Q6: What materials are used in the construction of this luminaire?
A6: The luminaire features a pure aluminum heat sink, PC body, and PC diffuser, ensuring optimal thermal management, durability, and efficient light diffusion.
Q7: Does the luminaire come with a built-in driver?
A7: Yes, the luminaire is equipped with a built-in quality brand DALI driver from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic.
Q8: Does the DALI Lighting LED Tri Proof Lock Buckle support emergency kits or sensors?
A8: Yes, this luminaire can work with emergency kits or sensors, providing additional functionality and adaptability based on specific requirements.
Q9: What is the ingress protection rating of the luminaire?
A9: The DALI Lighting LED Tri Proof Lock Buckle has an IP65 rating, making it resistant to dust and water, ensuring its suitability for various environments.
Q10: Can multiple luminaires be connected together?
A10: Yes, the DALI Lighting LED Tri Proof Lock Buckle can be linkable, allowing for a seamless and continuous lighting installation.
1. Industrial Facilities: The luminaire’s robust construction and high ingress protection rating (IP65) make it suitable for industrial environments such as factories, warehouses, production areas, and manufacturing facilities. It can withstand dust, moisture, and even mild impacts, providing durable and reliable lighting solutions.
2. Commercial Spaces: The versatile design of the luminaire makes it ideal for various commercial settings, including retail stores, supermarkets, shopping malls, and offices. Its high-quality lighting performance, with soft and even distribution, enhances visibility and creates a pleasant atmosphere for customers and employees.
3. Parking Areas: The durable and weather-resistant nature of the luminaire, along with its high lumen efficacy, makes it suitable for parking garages, parking lots, and outdoor parking areas. The wide beam angle (120°) ensures efficient coverage and visibility, enhancing safety and security.
4. Sports Facilities: The DALI Lighting LED Tri Proof Lock Buckle can be used in sports facilities such as gyms, fitness centers, and indoor courts. Its high lumen output provides sufficient illumination for various activities, while the durable construction ensures it can withstand the rigors of sports environments.
5. Educational Institutions: Schools, colleges, and universities can benefit from the reliable and energy-efficient lighting provided by this luminaire. It can be used in classrooms, libraries, corridors, and other educational spaces to create an optimal learning environment.
6. Healthcare Facilities: The luminaire’s anti-UV and non-yellowing properties make it suitable for healthcare settings such as hospitals, clinics, and laboratories. The high color rendering index (CRI) ensures accurate color representation, which is crucial in medical examinations and procedures.
7. Food Processing Areas: The luminaire’s IP65 rating and resistance to moisture and dust make it suitable for food processing facilities, commercial kitchens, and restaurants. It provides reliable and hygienic lighting, complying with the necessary regulations and ensuring food safety.
8. Outdoor Applications: The luminaire’s durable construction and IP65 rating make it suitable for outdoor installations such as building facades, walkways, and outdoor recreational areas. Its ability to withstand harsh weather conditions and provide consistent lighting output makes it a reliable choice for outdoor lighting needs.
