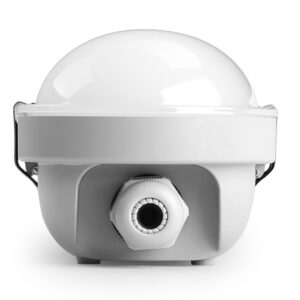

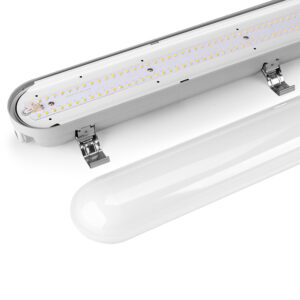

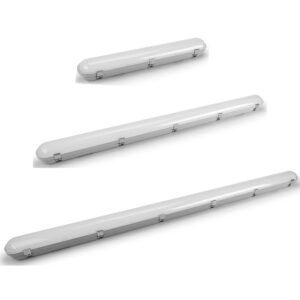

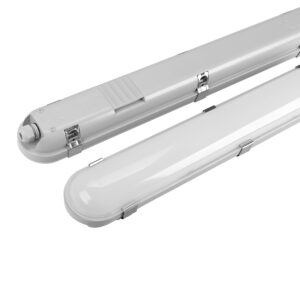

DALI Light LED Vapor Triproof 20-80W IP65 IK08
DALI Light LED Vapor Triproof is a high-performance luminaire designed for demanding environments. With an IP65 rating and IK08 impact resistance, it offers excellent protection against dust, water, and mechanical impacts. The PC body and diffuser ensure durability, while the LM80 LumiLEDs LEDs provide a high efficacy of 120LM/W and a CRI above 82, delivering bright and accurate lighting. Importantly, it is not a Blue Light Hazard and offers flicker-free illumination. The luminaire comes in 20W (600mm/2ft), 40W (1200mm/4ft), 60W (1500mm/5ft), and 80W (1800mm/6ft) variants, catering to different lighting requirements. It features a branded DALI driver from reputable manufacturers like BOKE, Tridonic, Osram, VS, or TCI, ensuring reliable performance. Additionally, it offers the option for emergency kits or motion sensors, enhancing functionality. With easy connection and seamless integration with DALI Lighting Systems, this luminaire is a top choice for efficient and intelligent lighting solutions.
Highlights
→ DALI2
→ High Lumen 120LM/W
→ 2ft – 6ft (600mm-1800mm)
→ LumiLEDs LM80
→ IP65, IK08
| Model | Watt | Lumen | Size(L*W*H) |
| ILED-TRP-60C 1 | 20W | 2400LM | 600*83*72mm |
| ILED-TRP-120C 1 | 40W | 4800LM | 1200*83*72mm |
| ILED-TRP-150C 1 | 60W | 7200LM | 1500*83*72mm |
| ILED-TRP-180C 1 | 80W | 9600LM | 1800*83*72mm |
| Input | 220V~240VAC 50/60Hz | LED Source | LM80 LEDs |
| Materials | PC | PF | >0.9 |
| CCT | 2800-6500K | CRI | >80 |
| Electrical Classification | Â Class II | IP Class | Â IP65 |
| Beam angle | 120° | Body Color | Gray |
| Watt | 20W/40W/60W/80W | Lumens | 120lm/W |
| Warranty | 5 years | Certification | CE&RoHS&SAA,TUV |
Send Your Inquiry
1. High Performance: The luminaire utilizes LM80 LumiLEDs CRI 82 LEDs, delivering efficient and high-quality illumination with up to 120LM/W efficacy. This ensures bright and energy-efficient lighting, reducing energy consumption and operating costs.
2. Durable and Reliable: With an IP65 rating and IK08 impact resistance, the luminaire is designed to withstand harsh environments. Its PC body and diffuser materials offer durability and protection against dust, water, and mechanical impacts, ensuring long-lasting performance.
3. Versatile Options: The DALI Light LED Vapor Triproof is available in various sizes and wattages, allowing you to choose the right configuration for your specific lighting requirements. Additionally, the CCT options (3000K, 4000K, 5000K, or 6000K) provide flexibility to create the desired lighting ambiance.
4. High-Quality Driver: The luminaire features a built-in DALI driver from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic. This ensures reliable performance, power factor greater than 0.9, and flicker-free operation, providing stable and comfortable lighting conditions.
5. Easy Installation and Integration: The DALI Light LED Vapor Triproof offers easy connection capabilities and can be surface mounted or pendant installed, providing installation flexibility. It is also compatible with DALI Lighting Control Systems, allowing for seamless integration and intelligent lighting management.
6. Long Lifespan: With a lifespan of 50,000 hours, the luminaire offers long-lasting performance, reducing maintenance costs and the need for frequent replacements.
7. Safety and Convenience: The luminaire is classified as Electric Class II, providing enhanced safety during installation and operation. It also offers the option to work with emergency kits or motion sensors, enhancing functionality and convenience.
Q1: What is the IP rating of the DALI Light LED Vapor Triproof?
A1: The DALI Light LED Vapor Triproof has an IP65 rating, which means it is highly resistant to dust and water, making it suitable for both indoor and outdoor use.
Q2: What is the lifespan of the DALI Light LED Vapor Triproof?
A2: The DALI Light LED Vapor Triproof has a lifespan of 50,000 hours, ensuring long-lasting performance and reducing maintenance costs.
Q3: Can the DALI Light LED Vapor Triproof be connected to a DALI Lighting Control System?
A3: Yes, the DALI Light LED Vapor Triproof is designed to work well with DALI Lighting Control Systems, enabling efficient and intelligent lighting management.
Q4: What are the available sizes and wattages of the DALI Light LED Vapor Triproof?
A4: The DALI Light LED Vapor Triproof is available in sizes of 600mm (20W), 1200mm (40W), 1500mm (60W), and 1800mm (80W), providing options to suit different lighting requirements.
Q5: Does the DALI Light LED Vapor Triproof offer flicker-free operation?
A5: Yes, the DALI Light LED Vapor Triproof ensures flicker-free operation, providing stable and comfortable lighting conditions.
Q6: What is the beam angle of the DALI Light LED Vapor Triproof?
A6: The DALI Light LED Vapor Triproof has a wide 120° beam angle, ensuring uniform light distribution across the space.
Q7: Can the DALI Light LED Vapor Triproof be linked together for continuous lighting?
A7: Yes, the DALI Light LED Vapor Triproof can be linkable, allowing for a seamless and continuous lighting setup.
Q8: What materials are used in the construction of the DALI Light LED Vapor Triproof?
A8: The DALI Light LED Vapor Triproof features a PC body and PC diffuser, providing durability and protection against harsh environments.
1. Industrial Facilities: The robust design and high durability make it ideal for use in industrial environments such as warehouses, factories, production areas, and workshops.
2. Parking Garages: The IP65 rating ensures protection against dust and water, making the DALI Light LED Vapor Triproof suitable for lighting in parking garages and other covered outdoor parking areas.
3. Retail Spaces: The high-quality illumination and customizable CCT options make it suitable for retail stores, supermarkets, shopping malls, and showrooms, where bright and appealing lighting is desired.
4. Commercial Buildings: The DALI Light LED Vapor Triproof can be used in offices, conference rooms, lobbies, corridors, and other commercial spaces to provide efficient and visually comfortable lighting.
5. Sports Facilities: Due to its durable construction and high lumen output, the luminaire can be installed in sports halls, gyms, and indoor stadiums to ensure proper lighting during sporting events and activities.
6. Educational Institutions: Schools, colleges, universities, and classrooms can benefit from the DALI Light LED Vapor Triproof’s energy-efficient lighting, creating a conducive learning environment.
7. Food Processing Areas: The IP65 rating and dust-resistant properties make the luminaire suitable for lighting in food processing facilities, ensuring a hygienic and well-lit environment.
8. Outdoor Walkways: The luminaire’s robustness and protection against water make it suitable for outdoor walkways, pathways, and covered outdoor areas, providing safe and reliable lighting.
9. Healthcare Facilities: Hospitals, clinics, and healthcare facilities can benefit from the durable and high-performance lighting provided by the DALI Light LED Vapor Triproof, ensuring well-lit patient rooms, corridors, and other areas.
| Model | Watt | Lumen | Size(L*W*H) |
| ILED-TRP-60C 1 | 20W | 2400LM | 600*83*72mm |
| ILED-TRP-120C 1 | 40W | 4800LM | 1200*83*72mm |
| ILED-TRP-150C 1 | 60W | 7200LM | 1500*83*72mm |
| ILED-TRP-180C 1 | 80W | 9600LM | 1800*83*72mm |
| Input | 220V~240VAC 50/60Hz | LED Source | LM80 LEDs |
| Materials | PC | PF | >0.9 |
| CCT | 2800-6500K | CRI | >80 |
| Electrical Classification | Â Class II | IP Class | Â IP65 |
| Beam angle | 120° | Body Color | Gray |
| Watt | 20W/40W/60W/80W | Lumens | 120lm/W |
| Warranty | 5 years | Certification | CE&RoHS&SAA,TUV |
Send Your Inquiry
1. High Performance: The luminaire utilizes LM80 LumiLEDs CRI 82 LEDs, delivering efficient and high-quality illumination with up to 120LM/W efficacy. This ensures bright and energy-efficient lighting, reducing energy consumption and operating costs.
2. Durable and Reliable: With an IP65 rating and IK08 impact resistance, the luminaire is designed to withstand harsh environments. Its PC body and diffuser materials offer durability and protection against dust, water, and mechanical impacts, ensuring long-lasting performance.
3. Versatile Options: The DALI Light LED Vapor Triproof is available in various sizes and wattages, allowing you to choose the right configuration for your specific lighting requirements. Additionally, the CCT options (3000K, 4000K, 5000K, or 6000K) provide flexibility to create the desired lighting ambiance.
4. High-Quality Driver: The luminaire features a built-in DALI driver from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic. This ensures reliable performance, power factor greater than 0.9, and flicker-free operation, providing stable and comfortable lighting conditions.
5. Easy Installation and Integration: The DALI Light LED Vapor Triproof offers easy connection capabilities and can be surface mounted or pendant installed, providing installation flexibility. It is also compatible with DALI Lighting Control Systems, allowing for seamless integration and intelligent lighting management.
6. Long Lifespan: With a lifespan of 50,000 hours, the luminaire offers long-lasting performance, reducing maintenance costs and the need for frequent replacements.
7. Safety and Convenience: The luminaire is classified as Electric Class II, providing enhanced safety during installation and operation. It also offers the option to work with emergency kits or motion sensors, enhancing functionality and convenience.
Q1: What is the IP rating of the DALI Light LED Vapor Triproof?
A1: The DALI Light LED Vapor Triproof has an IP65 rating, which means it is highly resistant to dust and water, making it suitable for both indoor and outdoor use.
Q2: What is the lifespan of the DALI Light LED Vapor Triproof?
A2: The DALI Light LED Vapor Triproof has a lifespan of 50,000 hours, ensuring long-lasting performance and reducing maintenance costs.
Q3: Can the DALI Light LED Vapor Triproof be connected to a DALI Lighting Control System?
A3: Yes, the DALI Light LED Vapor Triproof is designed to work well with DALI Lighting Control Systems, enabling efficient and intelligent lighting management.
Q4: What are the available sizes and wattages of the DALI Light LED Vapor Triproof?
A4: The DALI Light LED Vapor Triproof is available in sizes of 600mm (20W), 1200mm (40W), 1500mm (60W), and 1800mm (80W), providing options to suit different lighting requirements.
Q5: Does the DALI Light LED Vapor Triproof offer flicker-free operation?
A5: Yes, the DALI Light LED Vapor Triproof ensures flicker-free operation, providing stable and comfortable lighting conditions.
Q6: What is the beam angle of the DALI Light LED Vapor Triproof?
A6: The DALI Light LED Vapor Triproof has a wide 120° beam angle, ensuring uniform light distribution across the space.
Q7: Can the DALI Light LED Vapor Triproof be linked together for continuous lighting?
A7: Yes, the DALI Light LED Vapor Triproof can be linkable, allowing for a seamless and continuous lighting setup.
Q8: What materials are used in the construction of the DALI Light LED Vapor Triproof?
A8: The DALI Light LED Vapor Triproof features a PC body and PC diffuser, providing durability and protection against harsh environments.
1. Industrial Facilities: The robust design and high durability make it ideal for use in industrial environments such as warehouses, factories, production areas, and workshops.
2. Parking Garages: The IP65 rating ensures protection against dust and water, making the DALI Light LED Vapor Triproof suitable for lighting in parking garages and other covered outdoor parking areas.
3. Retail Spaces: The high-quality illumination and customizable CCT options make it suitable for retail stores, supermarkets, shopping malls, and showrooms, where bright and appealing lighting is desired.
4. Commercial Buildings: The DALI Light LED Vapor Triproof can be used in offices, conference rooms, lobbies, corridors, and other commercial spaces to provide efficient and visually comfortable lighting.
5. Sports Facilities: Due to its durable construction and high lumen output, the luminaire can be installed in sports halls, gyms, and indoor stadiums to ensure proper lighting during sporting events and activities.
6. Educational Institutions: Schools, colleges, universities, and classrooms can benefit from the DALI Light LED Vapor Triproof’s energy-efficient lighting, creating a conducive learning environment.
7. Food Processing Areas: The IP65 rating and dust-resistant properties make the luminaire suitable for lighting in food processing facilities, ensuring a hygienic and well-lit environment.
8. Outdoor Walkways: The luminaire’s robustness and protection against water make it suitable for outdoor walkways, pathways, and covered outdoor areas, providing safe and reliable lighting.
9. Healthcare Facilities: Hospitals, clinics, and healthcare facilities can benefit from the durable and high-performance lighting provided by the DALI Light LED Vapor Triproof, ensuring well-lit patient rooms, corridors, and other areas.
