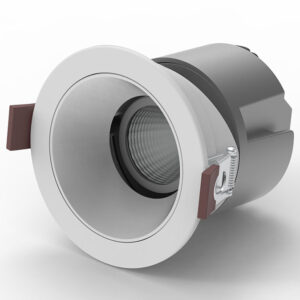

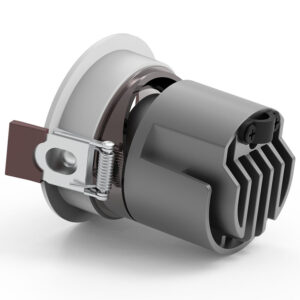

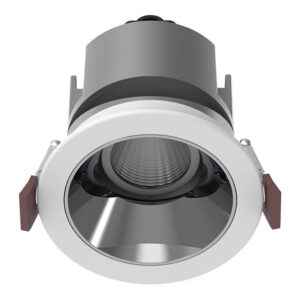

DALI Dimmable LED Downlight Embedded Low Glare
ALI Dimmable LED Downlight Embedded Low Glare is a high-quality lighting solution. With aluminum body, PMMA diffuser, and CREE or Citizen COB, it offers efficient and flicker-free performance. Compatible with DALI systems, it has easy installation and UGR<19 for comfortable lighting.
Highlights
→ DALI2
→ CREE or Citizen COB CRI 92
→ Low UGR , Anti Glare
→ Emergency Option
|
Model |
Watt |
Lumen |
Size |
Cutout |
Lens |
|
ILED-CL2-A C1 5W DALI |
5W |
450LM |
D63*H63mm |
D55mm |
15,24,38° |
|
ILED-CL3-A C1 7W DALI |
7W |
630LM |
D85*H71mm |
D75mm |
15,24,38° |
|
ILED-CL3-A C1 9W DALI |
9W |
810LM |
D85*H76mm |
D75mm |
15,24,38° |
|
ILED-CL3-A C1 12W DALI |
12W |
1080LM |
D85*H93mm |
D75mm |
15,24,38° |
|
ILED-CL4-A C1 18W DALI |
18W |
1620LM |
D105*H99mm |
D95mm |
15,24,38° |
|
ILED-CL5-A C1 28W DALI |
28W |
2000LM |
D130*H115mm |
D120mm |
15,24,38° |
Other Parameters
| Input | 110-277VAC or 220-240VAC | LED Source | Citizen or CREE COB |
| Materials | Aluminum +PC | PF | >0.9 |
| CCT | 2700K-6500K | CRI | >92 |
| Lens | 15°,24°,38° | IP Class | IP42 |
| Body Color | White | Certification | TUV,CE,RoHS,SAA |
| Functions | DALI,Emergency,Triac Dimmable,0-10V Dimmable | ||
Send Your Inquiry
1. High-quality lighting: The downlight features LM80 CRI90 CREE or Citizen COB LEDs, ensuring superior light quality with high color rendering index (CRI). This means that the colors of objects illuminated by these lights will appear more accurate and vibrant.
2. Energy-efficient: With a lumen efficacy of up to 100LM/W and a power factor greater than 0.9, this downlight provides efficient illumination while minimizing energy consumption. It helps reduce energy costs and is more environmentally friendly.
3. Comfortable lighting experience: The downlight offers a soft and even lighting distribution, creating a visually comfortable environment. It also eliminates flickering, ensuring a pleasant lighting experience without causing eye strain or discomfort.
4. Versatility and customization: The downlight comes in various CCT options (3000K, 4000K, 5000K, and 6000K) and beam angle options (15°, 24°, or 38°). This allows you to tailor the lighting to meet specific requirements, whether it’s for accent lighting or general illumination.
5. Durable construction: The downlight features an aluminum body and a PMMA diffuser, making it robust and resistant to impacts. It has an IK07 rating for impact resistance, ensuring its durability in various environments.
6. Integration with DALI Lighting Control System: The downlight works seamlessly with DALI Lighting Control Systems. This enables enhanced lighting management, including dimming, scheduling, and scene control, for greater flexibility and energy savings.
7. Easy installation and maintenance: The downlight’s recessed mounted design and easy connection make installation hassle-free. Additionally, its long lifespan of up to 50,000 hours reduces maintenance and replacement costs.
8. Safety and reliability: The downlight is classified as Electric Class II, offering enhanced safety features. It can also work with emergency kits, providing backup lighting during power outages for added reliability.
Q1: What is the input voltage range for the DALI Dimmable LED Downlight Embedded Low Glare?
A1: The input voltage range for this downlight is 220-240VAC and 110-277VAC, offering flexibility for different electrical systems.
Q2: Can I dim the DALI Dimmable LED Downlight?
A2: Yes, you can dim this downlight. It is compatible with DALI lighting control systems, allowing for smooth and precise dimming control.
Q3: What is the lifespan of the DALI Dimmable LED Downlight?
A3: The downlight has a lifespan of up to 50,000 hours, providing long-lasting performance and reducing the need for frequent replacements.
Q4: Does the DALI Dimmable LED Downlight emit harmful blue light?
A4: No, this downlight is designed to be free from blue light hazards, ensuring a safe and comfortable lighting environment.
Q5: Can the DALI Dimmable LED Downlight be used in emergency situations?
A5: Yes, this downlight can work with emergency kits, providing backup lighting during power outages or emergency situations.
Q6: Is the DALI Dimmable LED Downlight flicker-free?
A6: Yes, this downlight is flicker-free, ensuring a stable and comfortable lighting experience that reduces eye strain.
Q7: What is the beam angle range available for the DALI Dimmable LED Downlight?
A7: The downlight offers beam angle options of 15°, 24°, or 38°, allowing for versatile lighting distribution and focused illumination.
Q8: Is the DALI Dimmable LED Downlight suitable for recessed mounting?
A8: Yes, this downlight is designed for recessed mounted installation, providing a seamless and integrated look in the ceiling or architectural spaces.
1. Residential spaces: Install these downlights in living rooms, bedrooms, kitchens, and dining areas to create a pleasant and visually appealing ambiance. Their adjustable beam angles allow for focused lighting on specific areas or objects.
2. Commercial and retail environments: Use these downlights in offices, conference rooms, retail stores, showrooms, and restaurants to provide efficient and comfortable lighting for employees and customers. The high-quality light output enhances visibility and showcases products or displays.
3. Hospitality industry: Illuminate hotel lobbies, corridors, guest rooms, and common areas with these downlights to create a welcoming and inviting atmosphere. Their flicker-free performance and customizable CCT options contribute to a comfortable and relaxing environment.
4. Art galleries and museums: The high CRI and even lighting distribution of these downlights make them ideal for illuminating artwork and exhibits. The adjustable beam angles help highlight specific pieces and add depth to the space.
5. Educational institutions: Install these downlights in classrooms, lecture halls, libraries, and study areas to provide uniform and glare-free lighting, enhancing the learning environment for students and educators.
6. Healthcare facilities: Use these downlights in hospitals, clinics, and healthcare centers to provide bright and comfortable lighting in patient rooms, waiting areas, and corridors. The flicker-free and high-quality light output helps create a calm and soothing atmosphere.
7. Corporate offices: Illuminate workspaces, meeting rooms, and common areas with these downlights to provide efficient and comfortable lighting for employees. The integration with DALI Lighting Control Systems allows for intelligent lighting management and energy savings.
8. Showrooms and exhibition spaces: Highlight products or displays in showrooms, exhibition halls, and galleries with these downlights. Their adjustable beam angles and high CRI ensure optimal visibility and visual impact.
|
Model |
Watt |
Lumen |
Size |
Cutout |
Lens |
|
ILED-CL2-A C1 5W DALI |
5W |
450LM |
D63*H63mm |
D55mm |
15,24,38° |
|
ILED-CL3-A C1 7W DALI |
7W |
630LM |
D85*H71mm |
D75mm |
15,24,38° |
|
ILED-CL3-A C1 9W DALI |
9W |
810LM |
D85*H76mm |
D75mm |
15,24,38° |
|
ILED-CL3-A C1 12W DALI |
12W |
1080LM |
D85*H93mm |
D75mm |
15,24,38° |
|
ILED-CL4-A C1 18W DALI |
18W |
1620LM |
D105*H99mm |
D95mm |
15,24,38° |
|
ILED-CL5-A C1 28W DALI |
28W |
2000LM |
D130*H115mm |
D120mm |
15,24,38° |
Other Parameters
| Input | 110-277VAC or 220-240VAC | LED Source | Citizen or CREE COB |
| Materials | Aluminum +PC | PF | >0.9 |
| CCT | 2700K-6500K | CRI | >92 |
| Lens | 15°,24°,38° | IP Class | IP42 |
| Body Color | White | Certification | TUV,CE,RoHS,SAA |
| Functions | DALI,Emergency,Triac Dimmable,0-10V Dimmable | ||
Send Your Inquiry
1. High-quality lighting: The downlight features LM80 CRI90 CREE or Citizen COB LEDs, ensuring superior light quality with high color rendering index (CRI). This means that the colors of objects illuminated by these lights will appear more accurate and vibrant.
2. Energy-efficient: With a lumen efficacy of up to 100LM/W and a power factor greater than 0.9, this downlight provides efficient illumination while minimizing energy consumption. It helps reduce energy costs and is more environmentally friendly.
3. Comfortable lighting experience: The downlight offers a soft and even lighting distribution, creating a visually comfortable environment. It also eliminates flickering, ensuring a pleasant lighting experience without causing eye strain or discomfort.
4. Versatility and customization: The downlight comes in various CCT options (3000K, 4000K, 5000K, and 6000K) and beam angle options (15°, 24°, or 38°). This allows you to tailor the lighting to meet specific requirements, whether it’s for accent lighting or general illumination.
5. Durable construction: The downlight features an aluminum body and a PMMA diffuser, making it robust and resistant to impacts. It has an IK07 rating for impact resistance, ensuring its durability in various environments.
6. Integration with DALI Lighting Control System: The downlight works seamlessly with DALI Lighting Control Systems. This enables enhanced lighting management, including dimming, scheduling, and scene control, for greater flexibility and energy savings.
7. Easy installation and maintenance: The downlight’s recessed mounted design and easy connection make installation hassle-free. Additionally, its long lifespan of up to 50,000 hours reduces maintenance and replacement costs.
8. Safety and reliability: The downlight is classified as Electric Class II, offering enhanced safety features. It can also work with emergency kits, providing backup lighting during power outages for added reliability.
Q1: What is the input voltage range for the DALI Dimmable LED Downlight Embedded Low Glare?
A1: The input voltage range for this downlight is 220-240VAC and 110-277VAC, offering flexibility for different electrical systems.
Q2: Can I dim the DALI Dimmable LED Downlight?
A2: Yes, you can dim this downlight. It is compatible with DALI lighting control systems, allowing for smooth and precise dimming control.
Q3: What is the lifespan of the DALI Dimmable LED Downlight?
A3: The downlight has a lifespan of up to 50,000 hours, providing long-lasting performance and reducing the need for frequent replacements.
Q4: Does the DALI Dimmable LED Downlight emit harmful blue light?
A4: No, this downlight is designed to be free from blue light hazards, ensuring a safe and comfortable lighting environment.
Q5: Can the DALI Dimmable LED Downlight be used in emergency situations?
A5: Yes, this downlight can work with emergency kits, providing backup lighting during power outages or emergency situations.
Q6: Is the DALI Dimmable LED Downlight flicker-free?
A6: Yes, this downlight is flicker-free, ensuring a stable and comfortable lighting experience that reduces eye strain.
Q7: What is the beam angle range available for the DALI Dimmable LED Downlight?
A7: The downlight offers beam angle options of 15°, 24°, or 38°, allowing for versatile lighting distribution and focused illumination.
Q8: Is the DALI Dimmable LED Downlight suitable for recessed mounting?
A8: Yes, this downlight is designed for recessed mounted installation, providing a seamless and integrated look in the ceiling or architectural spaces.
1. Residential spaces: Install these downlights in living rooms, bedrooms, kitchens, and dining areas to create a pleasant and visually appealing ambiance. Their adjustable beam angles allow for focused lighting on specific areas or objects.
2. Commercial and retail environments: Use these downlights in offices, conference rooms, retail stores, showrooms, and restaurants to provide efficient and comfortable lighting for employees and customers. The high-quality light output enhances visibility and showcases products or displays.
3. Hospitality industry: Illuminate hotel lobbies, corridors, guest rooms, and common areas with these downlights to create a welcoming and inviting atmosphere. Their flicker-free performance and customizable CCT options contribute to a comfortable and relaxing environment.
4. Art galleries and museums: The high CRI and even lighting distribution of these downlights make them ideal for illuminating artwork and exhibits. The adjustable beam angles help highlight specific pieces and add depth to the space.
5. Educational institutions: Install these downlights in classrooms, lecture halls, libraries, and study areas to provide uniform and glare-free lighting, enhancing the learning environment for students and educators.
6. Healthcare facilities: Use these downlights in hospitals, clinics, and healthcare centers to provide bright and comfortable lighting in patient rooms, waiting areas, and corridors. The flicker-free and high-quality light output helps create a calm and soothing atmosphere.
7. Corporate offices: Illuminate workspaces, meeting rooms, and common areas with these downlights to provide efficient and comfortable lighting for employees. The integration with DALI Lighting Control Systems allows for intelligent lighting management and energy savings.
8. Showrooms and exhibition spaces: Highlight products or displays in showrooms, exhibition halls, and galleries with these downlights. Their adjustable beam angles and high CRI ensure optimal visibility and visual impact.
