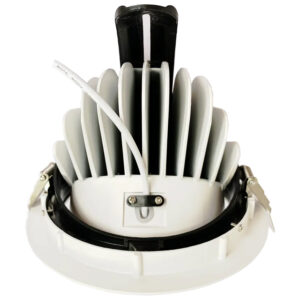

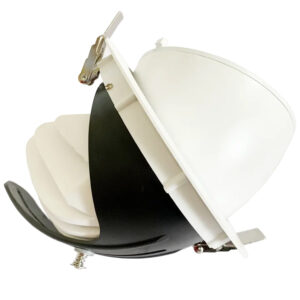

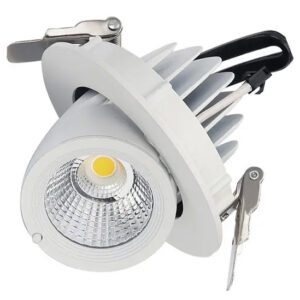

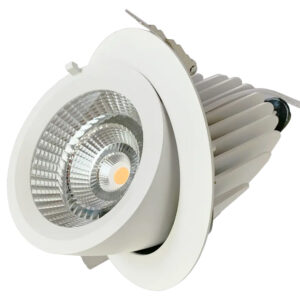

DALI Dimmable Downlights LED Gimbal Elephant Embedded
DALI Dimmable Downlights LED Gimbal Elephant Embedded. Sizes: 3-6 inches. Features: Aluminum body, PMMA diffuser. Efficacy: 100LM/W. CRI 90 (CREE/Citizen COB). No blue light hazard, flicker-free. Branded DALI drivers (BOKE, Tridonic, Osram, VS, TCI). Emergency option. Compatible with DALI Lighting System. Easy connection. Recessed mounted. UGR<19.
Highlights
→ DALI2
→ High Lumen 100LM/W
→ CREE or Citizen COB CRI 92
→ Gimbal Tiltable
→ Emergency option
|
Model |
Watts |
Lumen |
Size |
Beam angle |
Cutout size |
|
ILED-DL3-A D10 9W DALI |
9W |
900LM |
D95*H70mm |
24° or 45° |
D75mm |
|
ILED-DL3-A D10 12W DALI |
12W |
1200LM |
D114*H95mm |
15°24°38° or 60° |
D100mm |
|
ILED-DL4-A D10 DALI |
20W |
2000LM |
D138*H120mm |
15°24°38° or 60° |
D128mm |
|
ILED-DL5-A D10 DALI |
30W |
3000LM |
D165*H145mm |
15°24°38° or 60° |
D150mm |
|
ILED-DL6-A D10 DALI |
45W |
4500LM |
D190*H165mm |
15°24°38° or 60° |
175mm |
Other Parameters
|
Input |
100V~240VAC 50/60Hz |
LED Source |
Citizen,Osram, Philips or CREE COB |
|
Materials |
Aluminum+ PC |
PF |
>0.9 |
|
CCT |
2700-5000K |
CRI |
>92 |
|
Electrical Classification |
 Class II |
IP Class |
 IP42 or IP44 |
|
Beam angle |
24° or 45° |
Body Color |
White or Black |
|
Watt |
9W/12W/20W/30W/45W |
Install Style |
Recessed |
|
Warranty |
3 -5 years |
Certification |
CE&RoHS&SAA,TUV |
| Functions | DALI,Emergency,Triac Dimmable,0-10V Dimmable | ||
Send Your Inquiry
1. Versatility: With a range of models and sizes available, along with multiple color temperature options, these downlights offer versatility to suit various project requirements and design preferences. Whether you need warm or cool lighting, or different sizes for different spaces, these downlights have you covered.
2. High-quality LED Source and Driver: The downlights feature LM80 CRI90 CREE or Citizen COB LEDs, ensuring excellent color rendering and lighting performance. The use of external DALI drivers from reputable brands like BOKE, VS, TCI, Osram, or Tridonic guarantees reliable and efficient operation, enhancing the overall quality and longevity of the lighting system.
3. Health and Comfort: These downlights prioritize user well-being by eliminating blue light hazard and providing flicker-free lighting. This helps reduce eye strain and promotes a healthier and more comfortable lighting environment, particularly for extended periods of use.
4. Energy Efficiency: With a high power factor (>0.9) and an impressive lumen efficacy of up to 100LM/W, these downlights deliver energy-efficient lighting solutions. This translates to cost savings on energy bills while reducing environmental impact.
5. Durability and Longevity: Constructed with an aluminum body and PMMA diffuser, these downlights are built to last. They offer efficient heat dissipation, ensuring optimal performance and extending the lifespan of the lighting system. With a life expectancy of 50,000 hours, maintenance requirements are minimized.
6. Seamless Integration and Control: Designed to work well with DALI Lighting Control Systems, these downlights enable seamless integration and intelligent control. This allows for centralized management, dimming capabilities, scheduling, and other advanced lighting control features, enhancing convenience and flexibility.
7. Safety and Protection: The downlights are classified as Electric Class II, offering an extra layer of safety. They also have IP42 rating for dust and moisture protection, as well as IK06 rating for impact resistance. This ensures durability and suitability for various indoor applications and environments.
8. Easy Installation and Connection: The downlights are designed for recessed mounting and feature easy connection design, simplifying the installation process and saving time and effort.
Q1: What are the available sizes for the DALI Dimmable Downlights LED Gimbal Elephant Embedded?
A1: The downlights are available in sizes ranging from 3 inches to 6 inches, providing options to suit different installation requirements.
Q2: What is the lifespan of these downlights?
A2: These downlights have a lifespan of approximately 50,000 hours, ensuring long-lasting performance and reducing the need for frequent replacements.
Q3: Can these downlights be dimmed?
A3: Yes, these downlights are DALI dimmable, allowing for easy control and adjustment of light levels to create various atmospheres and save energy.
Q4: What is the color rendering index (CRI) of the LED sources?
A4: The LED sources used in these downlights have a high CRI of 90, ensuring accurate and vibrant color representation.
Q5: Are these downlights flicker-free?
A5: Yes, these downlights are designed to be flicker-free, providing a comfortable and stable lighting experience that reduces eye strain.
Q6: Can these downlights work with emergency kits?
A6: Yes, these downlights can be equipped with emergency kits, ensuring functionality during power outages or emergency situations.
Q7: Are the downlights compatible with DALI Lighting Control Systems?
A7: Absolutely, these downlights are fully compatible with DALI Lighting Control Systems, allowing for seamless integration and intelligent control.
Q8: What materials are used in the construction of these downlights?
A8: The downlights feature an aluminum body and a PMMA diffuser, providing durability, efficient heat dissipation, and a sleek appearance.
Q9: What beam angles are available for these downlights?
A9: The downlights offer a range of beam angles, including 15°, 24°, 38°, or 60°, allowing for precise light direction and control.
Q10: What IP rating do these downlights have?
A10: These downlights have an IP42 rating, providing protection against dust and moisture, making them suitable for various indoor applications.
1. Residential Spaces: Install these downlights in living rooms, bedrooms, kitchens, and bathrooms to create a pleasant and well-lit ambiance. Their adjustable beam angles allow for focused illumination in specific areas or broader coverage for general lighting.
2. Commercial Offices: Illuminate workspaces, conference rooms, reception areas, and corridors with these downlights. Their flicker-free and high-quality lighting output promotes productivity, reduces eye strain, and creates a professional atmosphere.
3. Retail Stores: Highlight merchandise and enhance the customer experience by using these downlights to create attractive and well-lit displays. The adjustable beam angles help direct the light precisely where it’s needed, showcasing products effectively.
4. Hospitality Settings: Enhance the aesthetics and comfort of hotels, restaurants, lobbies, and lounges with these downlights. Their soft and even lighting distribution creates a welcoming and visually appealing environment for guests.
5. Art Galleries and Museums: Achieve optimal lighting conditions for displaying artwork, sculptures, and artifacts. The high color rendering index (CRI) ensures accurate color reproduction, allowing for the appreciation of fine details.
6. Educational Institutions: Illuminate classrooms, libraries, laboratories, and common areas with these downlights. Their flicker-free and uniform lighting helps create an ideal learning environment.
7. Healthcare Facilities: Ensure adequate lighting in hospitals, clinics, and medical facilities. The downlights’ blue light hazard elimination and flicker-free performance contribute to a comfortable and safe environment for patients and staff.
8. Showrooms: Use these downlights in automotive showrooms, jewelry stores, or electronics showrooms to enhance the presentation of products and create an immersive visual experience.
9. Exhibition Halls and Event Spaces: Illuminate large event venues, exhibition halls, and convention centers with these downlights. Their versatility, adjustable beam angles, and compatibility with DALI lighting control systems allow for dynamic and customized lighting setups.
10. Public Spaces: Install these downlights in corridors, stairwells, and public areas of commercial buildings, airports, train stations, and other public facilities to provide efficient and visually pleasing lighting for safe navigation.
|
Model |
Watts |
Lumen |
Size |
Beam angle |
Cutout size |
|
ILED-DL3-A D10 9W DALI |
9W |
900LM |
D95*H70mm |
24° or 45° |
D75mm |
|
ILED-DL3-A D10 12W DALI |
12W |
1200LM |
D114*H95mm |
15°24°38° or 60° |
D100mm |
|
ILED-DL4-A D10 DALI |
20W |
2000LM |
D138*H120mm |
15°24°38° or 60° |
D128mm |
|
ILED-DL5-A D10 DALI |
30W |
3000LM |
D165*H145mm |
15°24°38° or 60° |
D150mm |
|
ILED-DL6-A D10 DALI |
45W |
4500LM |
D190*H165mm |
15°24°38° or 60° |
175mm |
Other Parameters
|
Input |
100V~240VAC 50/60Hz |
LED Source |
Citizen,Osram, Philips or CREE COB |
|
Materials |
Aluminum+ PC |
PF |
>0.9 |
|
CCT |
2700-5000K |
CRI |
>92 |
|
Electrical Classification |
 Class II |
IP Class |
 IP42 or IP44 |
|
Beam angle |
24° or 45° |
Body Color |
White or Black |
|
Watt |
9W/12W/20W/30W/45W |
Install Style |
Recessed |
|
Warranty |
3 -5 years |
Certification |
CE&RoHS&SAA,TUV |
| Functions | DALI,Emergency,Triac Dimmable,0-10V Dimmable | ||
Send Your Inquiry
1. Versatility: With a range of models and sizes available, along with multiple color temperature options, these downlights offer versatility to suit various project requirements and design preferences. Whether you need warm or cool lighting, or different sizes for different spaces, these downlights have you covered.
2. High-quality LED Source and Driver: The downlights feature LM80 CRI90 CREE or Citizen COB LEDs, ensuring excellent color rendering and lighting performance. The use of external DALI drivers from reputable brands like BOKE, VS, TCI, Osram, or Tridonic guarantees reliable and efficient operation, enhancing the overall quality and longevity of the lighting system.
3. Health and Comfort: These downlights prioritize user well-being by eliminating blue light hazard and providing flicker-free lighting. This helps reduce eye strain and promotes a healthier and more comfortable lighting environment, particularly for extended periods of use.
4. Energy Efficiency: With a high power factor (>0.9) and an impressive lumen efficacy of up to 100LM/W, these downlights deliver energy-efficient lighting solutions. This translates to cost savings on energy bills while reducing environmental impact.
5. Durability and Longevity: Constructed with an aluminum body and PMMA diffuser, these downlights are built to last. They offer efficient heat dissipation, ensuring optimal performance and extending the lifespan of the lighting system. With a life expectancy of 50,000 hours, maintenance requirements are minimized.
6. Seamless Integration and Control: Designed to work well with DALI Lighting Control Systems, these downlights enable seamless integration and intelligent control. This allows for centralized management, dimming capabilities, scheduling, and other advanced lighting control features, enhancing convenience and flexibility.
7. Safety and Protection: The downlights are classified as Electric Class II, offering an extra layer of safety. They also have IP42 rating for dust and moisture protection, as well as IK06 rating for impact resistance. This ensures durability and suitability for various indoor applications and environments.
8. Easy Installation and Connection: The downlights are designed for recessed mounting and feature easy connection design, simplifying the installation process and saving time and effort.
Q1: What are the available sizes for the DALI Dimmable Downlights LED Gimbal Elephant Embedded?
A1: The downlights are available in sizes ranging from 3 inches to 6 inches, providing options to suit different installation requirements.
Q2: What is the lifespan of these downlights?
A2: These downlights have a lifespan of approximately 50,000 hours, ensuring long-lasting performance and reducing the need for frequent replacements.
Q3: Can these downlights be dimmed?
A3: Yes, these downlights are DALI dimmable, allowing for easy control and adjustment of light levels to create various atmospheres and save energy.
Q4: What is the color rendering index (CRI) of the LED sources?
A4: The LED sources used in these downlights have a high CRI of 90, ensuring accurate and vibrant color representation.
Q5: Are these downlights flicker-free?
A5: Yes, these downlights are designed to be flicker-free, providing a comfortable and stable lighting experience that reduces eye strain.
Q6: Can these downlights work with emergency kits?
A6: Yes, these downlights can be equipped with emergency kits, ensuring functionality during power outages or emergency situations.
Q7: Are the downlights compatible with DALI Lighting Control Systems?
A7: Absolutely, these downlights are fully compatible with DALI Lighting Control Systems, allowing for seamless integration and intelligent control.
Q8: What materials are used in the construction of these downlights?
A8: The downlights feature an aluminum body and a PMMA diffuser, providing durability, efficient heat dissipation, and a sleek appearance.
Q9: What beam angles are available for these downlights?
A9: The downlights offer a range of beam angles, including 15°, 24°, 38°, or 60°, allowing for precise light direction and control.
Q10: What IP rating do these downlights have?
A10: These downlights have an IP42 rating, providing protection against dust and moisture, making them suitable for various indoor applications.
1. Residential Spaces: Install these downlights in living rooms, bedrooms, kitchens, and bathrooms to create a pleasant and well-lit ambiance. Their adjustable beam angles allow for focused illumination in specific areas or broader coverage for general lighting.
2. Commercial Offices: Illuminate workspaces, conference rooms, reception areas, and corridors with these downlights. Their flicker-free and high-quality lighting output promotes productivity, reduces eye strain, and creates a professional atmosphere.
3. Retail Stores: Highlight merchandise and enhance the customer experience by using these downlights to create attractive and well-lit displays. The adjustable beam angles help direct the light precisely where it’s needed, showcasing products effectively.
4. Hospitality Settings: Enhance the aesthetics and comfort of hotels, restaurants, lobbies, and lounges with these downlights. Their soft and even lighting distribution creates a welcoming and visually appealing environment for guests.
5. Art Galleries and Museums: Achieve optimal lighting conditions for displaying artwork, sculptures, and artifacts. The high color rendering index (CRI) ensures accurate color reproduction, allowing for the appreciation of fine details.
6. Educational Institutions: Illuminate classrooms, libraries, laboratories, and common areas with these downlights. Their flicker-free and uniform lighting helps create an ideal learning environment.
7. Healthcare Facilities: Ensure adequate lighting in hospitals, clinics, and medical facilities. The downlights’ blue light hazard elimination and flicker-free performance contribute to a comfortable and safe environment for patients and staff.
8. Showrooms: Use these downlights in automotive showrooms, jewelry stores, or electronics showrooms to enhance the presentation of products and create an immersive visual experience.
9. Exhibition Halls and Event Spaces: Illuminate large event venues, exhibition halls, and convention centers with these downlights. Their versatility, adjustable beam angles, and compatibility with DALI lighting control systems allow for dynamic and customized lighting setups.
10. Public Spaces: Install these downlights in corridors, stairwells, and public areas of commercial buildings, airports, train stations, and other public facilities to provide efficient and visually pleasing lighting for safe navigation.
