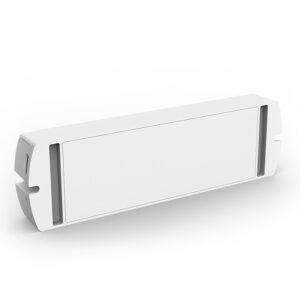

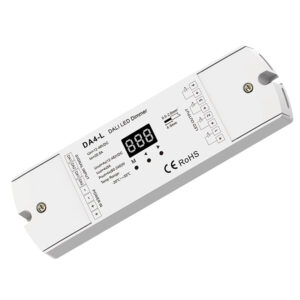

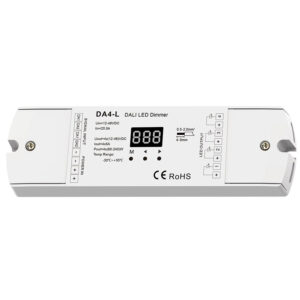

4 Channel Digital Display DT6 CV DALI LED Dimmer
1. 4 channels constant voltage DALI LED Dimmer
2. 1-4 DALI address, Digital Display
3. PWM digital dimming, standard DALI logarithmic dimming curve.
4. DALI address will be automatically assigned by DALI Maser.
5. Over-heat / Overload / Short circuit protection, recover automatically.
Highlights
→ 4 Channels CV DALI Dimmer
→ Digital Display
→ 1-4 DALI Addresses
→ PMW Digital Dimming
→ Compliance with DALI, DALI2
→ Best Auto Protection
| Model NO.:Â | DA4-L | Brand |
FlexCUBE |
| Input Voltage | 12-48VDC | Output Voltage | 12-48VDC |
| Input Current | Max 20.5A | ||
| Output Current | 4CH, 5A/CH | ||
| Output Power | 4x(60-240W) | ||
| Output Type | Constant Voltage | ||
| Input Signal | DALI | ||
| Dimming Range |
0-100% | ||
| Dimming Curve |
Logarithmic | ||
| PWM Frequency |
1KHZ / 2KHZ / 4KHZ / 8KHZ | ||
| Size |
L178mm x W50mm x H38mm | ||
| Packaging | White Box or Colorful Box, any OEM can be supported. | ||
| Functions |
1. 4 channels constant voltage DALI LED Dimmer 2. 1-4 DALI address, Digital Display 3. PWM digital dimming, standard DALI logarithmic dimming curve. 4. DALI address will be automatically assigned by DALI Maser. 5. Over-heat / Overload / Short circuit protection, recover automatically. 6. DALI-2 certified, in accordance with DALI standard protocol IEC 62386-101,102,207 and in compliance with DALI products fromother intemational incorporation. |
||
