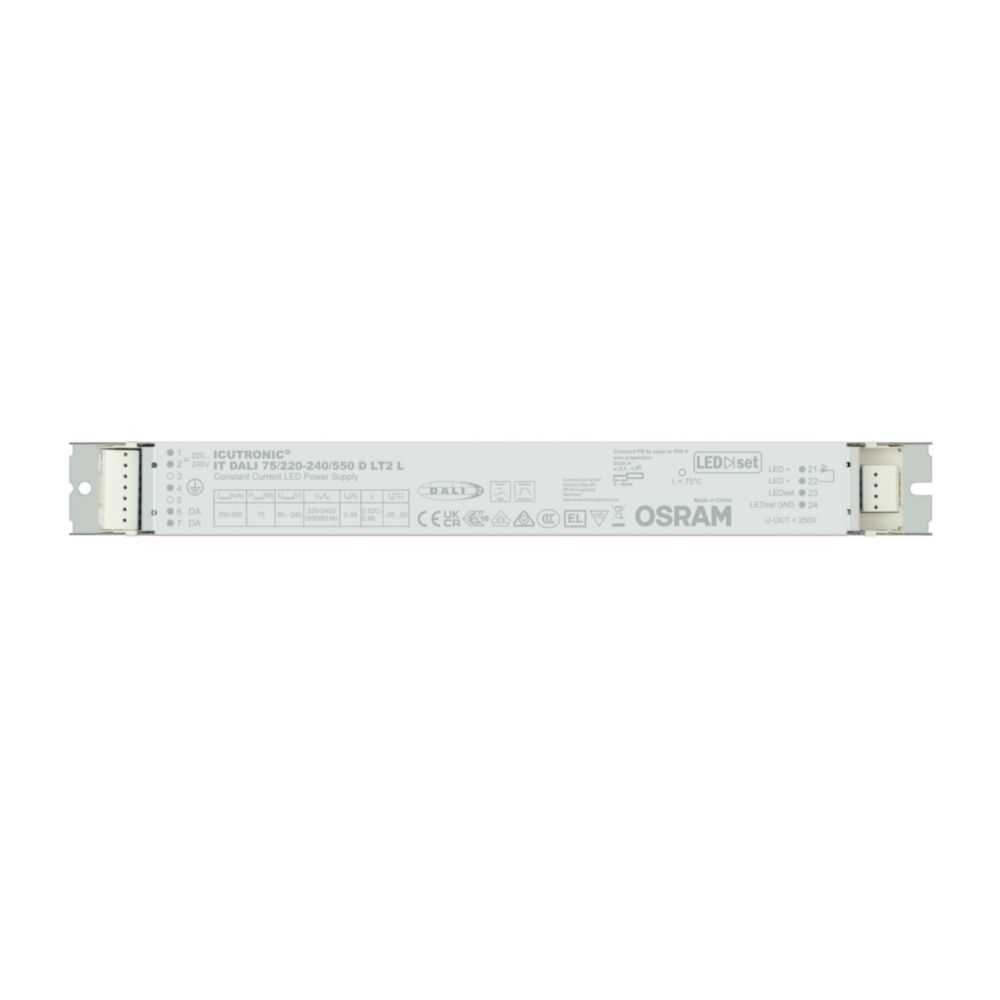

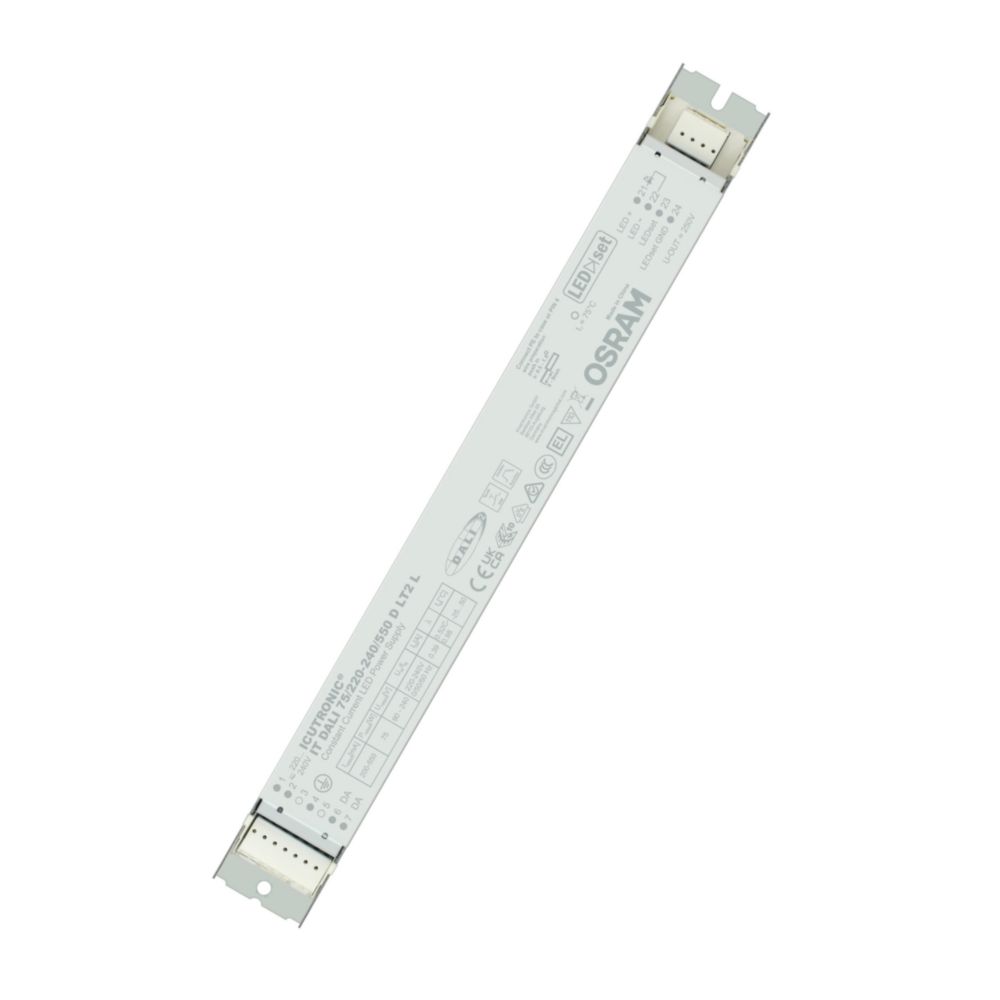

IT DALI 75 220-240 550 D LT2 L 75W Osram DALI Driver
DALI-2 certified – Fully programmable via software (DALI Interface) – Flexible current setting (RSet) Lifetime: up to 100,000 h (temperature at T c – = 65 °C, max. 10 % failure rate) – High-quality dimming of 3…100 % by amplitude dimming – Wide operating range – High quality of light thanks to <4% output ripple current – High efficiency – Low network standby consumption ≤ 0.25 W – Fulfill safety requirement due to overload, overtemperature, Hot Plug protection – Non-isolated driver – 3- and 4-channel DMX dimmer for RGB and RGBW LED module
Highlights
→ DALI-2 certified
→ PUSH Touch DIM
→ High PF,Flicker Free, Low THD
→ Flexible Ouput Selectable
→ Slim Size for Batten Lights
| Model NO. |
IT DALI 75/220-240/550 D LT2 L | Brand | Osram |
| Input | 220-240VAC | Frequency | 50/60Hz |
| Efficiency | 94% | PF | >0.98 |
| Output Voltage |
90-240VDC | Output Current |
200-550mA |
| Max. O-Voltage |
240VDC | Output Power |
Max. 75W |
| Ta |
50℃ |
Tc |
80℃ |
| Dimming | 3-100% |
THD |
<12%@230VAC |
| Protection type | Class I | Low ripple |
< 5 % |
|
Output type
|
SELV Non-Isolated |
Operation temperature |
-20°C-50°C |
| Warranty | 5 years | Certifications | SAA CE ROHS |
|
Surge |
L-N:1KV |
||
| Features | DALI-2 certified – Fully programmable via software (DALI Interface) – Flexible current setting (RSet) Lifetime: up to 100,000 h (temperature at T c – = 65 °C, max. 10 % failure rate) – High-quality dimming of 3…100 % by amplitude dimming – Wide operating range – High quality of light thanks to <4% output ripple current – High efficiency – Low network standby consumption ≤ 0.25 W – Fulfill safety requirement due to overload, overtemperature, Hot Plug protection – Non-isolated driver – 3- and 4-channel DMX dimmer for RGB and RGBW LED module | ||
Send Your Inquiry
| Model NO. |
IT DALI 75/220-240/550 D LT2 L | Brand | Osram |
| Input | 220-240VAC | Frequency | 50/60Hz |
| Efficiency | 94% | PF | >0.98 |
| Output Voltage |
90-240VDC | Output Current |
200-550mA |
| Max. O-Voltage |
240VDC | Output Power |
Max. 75W |
| Ta |
50℃ |
Tc |
80℃ |
| Dimming | 3-100% |
THD |
<12%@230VAC |
| Protection type | Class I | Low ripple |
< 5 % |
|
Output type
|
SELV Non-Isolated |
Operation temperature |
-20°C-50°C |
| Warranty | 5 years | Certifications | SAA CE ROHS |
|
Surge |
L-N:1KV |
||
| Features | DALI-2 certified – Fully programmable via software (DALI Interface) – Flexible current setting (RSet) Lifetime: up to 100,000 h (temperature at T c – = 65 °C, max. 10 % failure rate) – High-quality dimming of 3…100 % by amplitude dimming – Wide operating range – High quality of light thanks to <4% output ripple current – High efficiency – Low network standby consumption ≤ 0.25 W – Fulfill safety requirement due to overload, overtemperature, Hot Plug protection – Non-isolated driver – 3- and 4-channel DMX dimmer for RGB and RGBW LED module | ||
Send Your Inquiry
