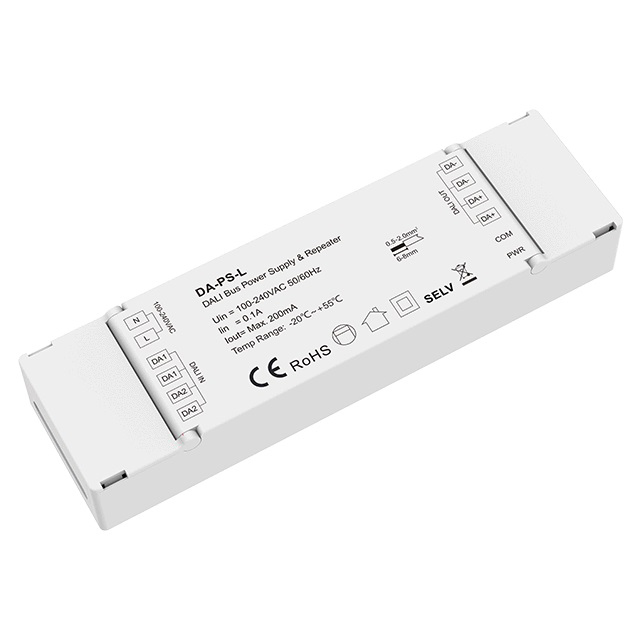

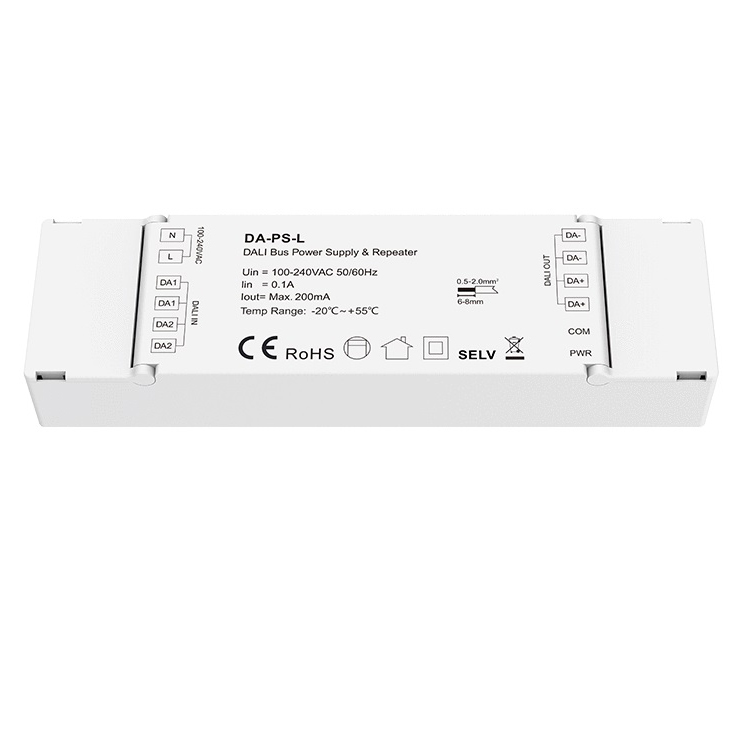

DALI Bus Power Supply & Repeater
. Enhancement and transmission of DALI signals(bidirectional).
. DALI commands from any control unit are transmited in all DALI lines.
. Electrical insulation between the main control circuitand the subordinate control circuit.
. Star or cascade network layout installation require only a single master to operate.
. In single-master applications star networks with multiple repeaters can be set up.
. Cascaded network layout with up to 3 repeaters in series.
. Maximum output current of 200mA to power the entire DALl line.
. There is no increase in the maximum number of DALI units.The maximum amount of DALI devices in the total network(main and subordinate circuit . limited to 64,the devices can be divided on the subordinate circuit freely.
. For each subordinate DALI circuits no extra DALI power supply required.
Highlights
→ DALI repeater with integrated DALI power supply.
→ Extending DALI line length from 300 to 600m.
→ Each subordinate DALI circuits no extra DALI power supply required.
| Item NO. |
DA-PS-L | Brand | DALIGHT |
| Input | 110-240VAC | Frequency |
50/60Hz |
| Input Current |
0.1A | Output Currrent |
Max. 200mA |
| Input Signal |
DALI |
Output Signal | DALI |
| Operation Temp. |
-20℃ – 55℃ | Protection | Over-Heat |
| Size | L135mm x W40mm x H23mm | ||
| Features | 1. DALI repeater with integrated DALI power supply. 2. Enhancement and transmission of DALI signals(bidirectional). 3. DALI commands from any control unit are transmited in all DALI lines. 4. Electrical insulation between the main control circuitand the subordinate control circuit. 5. Star or cascade network layout installation require only a single master to operate. 6. In single-master applications star networks with multiple repeaters can be set up. 7. Cascaded network layout with up to 3 repeaters in series. 8. For extending the DALI line length from 300 to 600m. 9. Maximum output current of 200mA to power the entire DALl line. 10. There is no increase in the maximum number of DALI units.The maximum amount of DALI devices in the total network(main and subordinate circuit 11. limited to 64,the devices can be divided on the subordinate circuit freely. 11. For each subordinate DALI circuits no extra DALI power supply required. |
||
Send Your Inquiry
| Item NO. |
DA-PS-L | Brand | DALIGHT |
| Input | 110-240VAC | Frequency |
50/60Hz |
| Input Current |
0.1A | Output Currrent |
Max. 200mA |
| Input Signal |
DALI |
Output Signal | DALI |
| Operation Temp. |
-20℃ – 55℃ | Protection | Over-Heat |
| Size | L135mm x W40mm x H23mm | ||
| Features | 1. DALI repeater with integrated DALI power supply. 2. Enhancement and transmission of DALI signals(bidirectional). 3. DALI commands from any control unit are transmited in all DALI lines. 4. Electrical insulation between the main control circuitand the subordinate control circuit. 5. Star or cascade network layout installation require only a single master to operate. 6. In single-master applications star networks with multiple repeaters can be set up. 7. Cascaded network layout with up to 3 repeaters in series. 8. For extending the DALI line length from 300 to 600m. 9. Maximum output current of 200mA to power the entire DALl line. 10. There is no increase in the maximum number of DALI units.The maximum amount of DALI devices in the total network(main and subordinate circuit 11. limited to 64,the devices can be divided on the subordinate circuit freely. 11. For each subordinate DALI circuits no extra DALI power supply required. |
||
Send Your Inquiry
